TJ21 Series

Catalog

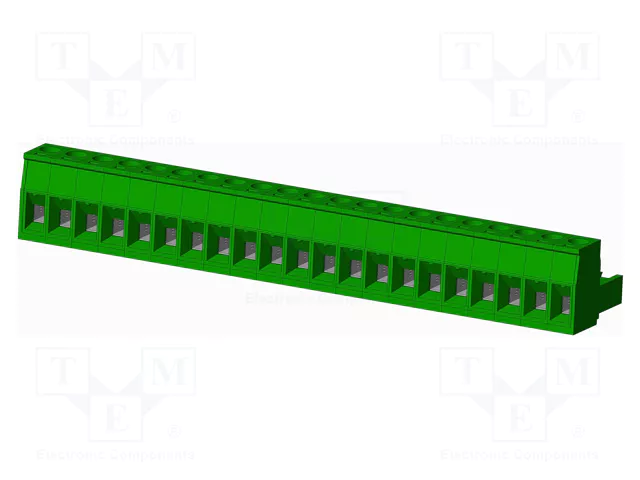

TERM BLOCK PLUG 21POS STR 3.81MM

Part	Voltage - IEC	Color	Termination Style	Plug Wire Entry Angle	Current - UL	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - UL	Current - IEC	Positions Per Level	Features	Mounting Type	Pitch	Wire Gauge or Range - AWG (Min)	Wire Gauge or Range - AWG (Max)	Number of Levels	Type	Wire Gauge or Range - mm²	Number of Positions	Contact Mating Finish	Material Flammability Rating	Screw Size	Wire Strip Length (Min)	Wire Strip Length (Max)	Housing Material	Contact Material	Wire Gauge or Range - mm² (Maximum)	Wire Gauge or Range - mm² (Minimum)	Torque - Screw	Insulation Height
McGill Microwave Systems TJ2131840000G	300 V	Gray	Screw	180 °	10 A	-40 °C	115 °C	300 V	10.5 A	21	Strain Relief	Free Hanging (In-Line)	0.15 in	16 AWG	28 AWG	1	Female Sockets Plug	1.5 mm²	21	Tin	UL94 V-0	M2	6 mm	7 mm	Thermoplastic	Phosphor Bronze
McGill Microwave Systems TJ2171540000G	300 V	Green	Screw	180 °	20 A	-40 °C	115 °C	300 V	20 A	21	Retention Latches (Non-Wire Side) Strain Relief	Free Hanging (In-Line)	0.197 in	12 AWG	24 AWG	1	Female Sockets Plug		21	Tin	UL94 V-0	M3	7 mm	8 mm	Thermoplastic	Copper	2.5 mm²	0.34 mm²	0.56 Nm	0.634 in
McGill Microwave Systems TJ2151530000G	300 V	Green	Screw	180 °	20 A	-40 °C	115 °C	300 V	20 A	21	Retention Latches (Non-Wire Side)	Free Hanging (In-Line)	5.08 mm	12 AWG	24 AWG	1	Female Sockets Plug		21	Tin	UL94 V-0	M3	7 mm	8 mm	Thermoplastic	Copper	2.5 mm²	0.34 mm²	0.56 Nm	0.594 in
McGill Microwave Systems TJ2151520000G	300 V	Green	Screw	180 °	20 A	-40 °C	115 °C	300 V	20 A	21	Mating Flange Retention Latches (Non-Wire Side)	Free Hanging (In-Line)	5.08 mm	12 AWG	24 AWG	1	Female Sockets Plug		21	Tin	UL94 V-0	M3	7 mm	8 mm	Thermoplastic	Copper	2.5 mm²	0.34 mm²	0.56 Nm	0.594 in
McGill Microwave Systems TJ2171800000G	300 V	Gray	Screw	180 °	20 A	-40 °C	115 °C	300 V	20 A	21	Retention Latches (Non-Wire Side)	Free Hanging (In-Line)	0.197 in	12 AWG	24 AWG	1	Female Sockets Plug		21	Tin	UL94 V-0	M3	7 mm	8 mm	Thermoplastic	Copper	2.5 mm²	0.34 mm²	0.56 Nm	0.594 in
McGill Microwave Systems TJ2171520000G	300 V	Green	Screw	180 °	20 A	-40 °C	115 °C	300 V	20 A	21	Mating Flange Retention Latches (Non-Wire Side)	Free Hanging (In-Line)	0.197 in	12 AWG	24 AWG	1	Female Sockets Plug		21	Tin	UL94 V-0	M3	7 mm	8 mm	Thermoplastic	Copper	2.5 mm²	0.34 mm²	0.56 Nm	0.594 in
McGill Microwave Systems TJ2171860000G		Gray	Screw	180 °	20 A	-40 °C	115 °C	300 V		21	Retention Latches (Non-Wire Side)	Free Hanging (In-Line)	0.197 in	12 AWG	24 AWG	1	Female Sockets Plug		21	Tin	UL94 V-0	M3	7 mm	8 mm	Thermoplastic	Copper			0.56 Nm	0.594 in
McGill Microwave Systems TJ2111840000G	300 V	Gray	Screw	180 °	10 A	-40 °C	115 °C	300 V	10.5 A	21	Strain Relief	Free Hanging (In-Line)	0.138 in	16 AWG	28 AWG	1	Female Sockets Plug	1.5 mm²	21	Tin	UL94 V-0	M2	6 mm	7 mm	Thermoplastic	Phosphor Bronze
McGill Microwave Systems TJ2151820000G	300 V	Gray	Screw	180 °	20 A	-40 °C	115 °C	300 V	20 A	21	Mating Flange Retention Latches (Non-Wire Side)	Free Hanging (In-Line)	5.08 mm	12 AWG	24 AWG	1	Female Sockets Plug		21	Tin	UL94 V-0	M3	7 mm	8 mm	Thermoplastic	Copper	2.5 mm²	0.34 mm²	0.56 Nm	0.594 in
McGill Microwave Systems TJ2171840000G	300 V	Gray	Screw	180 °	20 A	-40 °C	115 °C	300 V	20 A	21	Retention Latches (Non-Wire Side) Strain Relief	Free Hanging (In-Line)	0.197 in	12 AWG	24 AWG	1	Female Sockets Plug		21	Tin	UL94 V-0	M3	7 mm	8 mm	Thermoplastic	Copper	2.5 mm²	0.34 mm²	0.56 Nm	0.634 in
