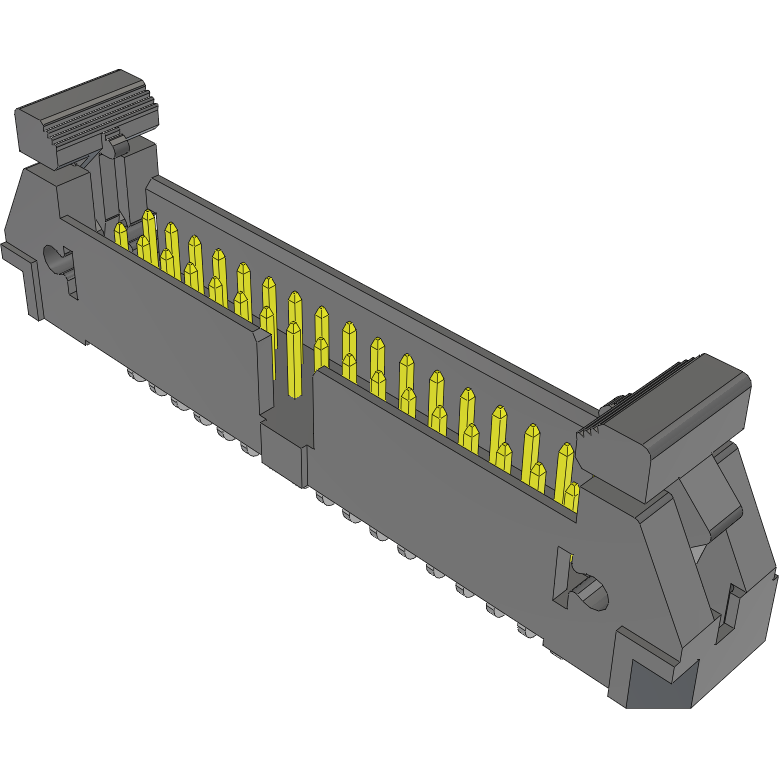

EJH-117 Series

Headers & Wire Housings .100" Shrouded IDC Ejector Header

Manufacturer: Samtec Inc.

Catalog

Headers & Wire Housings .100" Shrouded IDC Ejector Header

Catalog

Headers & Wire Housings .100" Shrouded IDC Ejector Header

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Material	Shrouding	Style	Contact Finish - Post	Contact Finish - Mating	Current Rating (Amps)	Insulation Height	Insulation Height	Features	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Contact Type	Insulation Color	Fastening Type	Number of Positions	Mounting Type	Connector Type	Contact Length - Mating	Contact Length - Mating	Pitch - Mating	Pitch - Mating	Number of Rows	Insulation Material	Contact Length - Post	Contact Length - Post	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. EJH-117-01-L-D-SM-LC-P	10 çin	0.25 çm	Square	2.54 mm	0.1 in	Phosphor Bronze	Shrouded - 4 Wall	Board to Cable/Wire	Tin	Gold	3 A	0.5 in	12.7 mm	Board Lock Keying Slot Pick and Place	Solder	-55 °C	125 °C	All	Male Pin	Black	Latch Lock/Eject Hooks	34	Surface Mount	Header	0.225 in	5.72 mm	0.1 in	2.54 mm	2	Liquid Crystal Polymer (LCP)
Samtec Inc. EJH-117-02-F-D-SM	3 µin	0.076 µm	Square	2.54 mm	0.1 in	Phosphor Bronze	Shrouded - 4 Wall	Board to Cable/Wire	Tin	Gold	3 A	0.5 in	12.7 mm	Keying Slot	Solder	-55 °C	125 °C	All	Male Pin	Natural	Latch Lock/Eject Hooks	34	Surface Mount	Header	0.225 in	5.72 mm	0.1 in	2.54 mm	2	Liquid Crystal Polymer (LCP)
Samtec Inc. EJH-117-02-L-D-RA	10 çin	0.25 çm	Square	2.54 mm	0.1 in	Phosphor Bronze	Shrouded - 4 Wall	Board to Cable/Wire	Tin	Gold	3 A			Keying Slot	Solder	-55 °C	125 °C	All	Male Pin	Natural	Latch Lock/Eject Hooks	34	Through Hole Right Angle	Header	0.225 in	5.72 mm	0.1 in	2.54 mm	2	Liquid Crystal Polymer (LCP)	0.09 "	2.29 mm	9.91 mm	0.39 in
Samtec Inc. EJH-117-01-L-D-SM	10 çin	0.25 çm	Square	2.54 mm	0.1 in	Phosphor Bronze	Shrouded - 4 Wall	Board to Cable/Wire	Tin	Gold	3 A	0.5 in	12.7 mm	Keying Slot	Solder	-55 °C	125 °C	All	Male Pin	Black	Latch Lock/Eject Hooks	34	Surface Mount	Header	0.225 in	5.72 mm	0.1 in	2.54 mm	2	Liquid Crystal Polymer (LCP)
Samtec Inc. EJH-117-01-L-D-TH	10 çin	0.25 çm	Square	2.54 mm	0.1 in	Phosphor Bronze	Shrouded - 4 Wall	Board to Cable/Wire	Tin	Gold	3 A	0.5 in	12.7 mm	Keying Slot	Solder	-55 °C	125 °C	All	Male Pin	Black	Latch Lock/Eject Hooks	34	Through Hole	Header	0.225 in	5.72 mm	0.1 in	2.54 mm	2	Liquid Crystal Polymer (LCP)					0.12 in	3.05 mm
Samtec Inc. EJH-117-02-F-D-SM-K-TR	3 µin	0.076 µm	Square	2.54 mm	0.1 in	Phosphor Bronze	Shrouded - 4 Wall	Board to Cable/Wire	Tin	Gold	3 A	0.5 in	12.7 mm	Keying Slot Pick and Place	Solder	-55 °C	125 °C	All	Male Pin	Natural	Latch Lock/Eject Hooks	34	Surface Mount	Header	0.225 in	5.72 mm	0.1 in	2.54 mm	2	Liquid Crystal Polymer (LCP)
Samtec Inc. EJH-117-01-S-D-SM			Square	2.54 mm	0.1 in	Phosphor Bronze	Shrouded - 4 Wall	Board to Cable/Wire	Tin	Gold	3 A	0.5 in	12.7 mm	Keying Slot	Solder	-55 °C	125 °C	All	Male Pin	Black	Latch Lock/Eject Hooks	34	Surface Mount	Header	0.225 in	5.72 mm	0.1 in	2.54 mm	2	Liquid Crystal Polymer (LCP)
