SPP Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

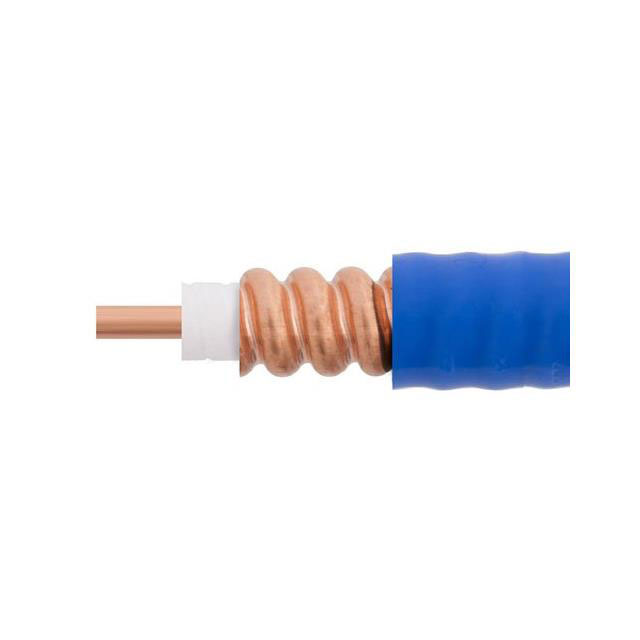

SPP-250-LLPL 1/4" CORRU LOW FOOT
| Part | Spool Size | Operating Temperature (Min) | Operating Temperature (Max) | Dielectric Diameter | Shield Material | Velocity of Propagation (VoP) | Dielectric Material | Conductor Material | Cable Type | Conductor Strand | Length | Impedance | Jacket (Insulation) Material | Jacket Color | Jacket (Insulation) Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | 500 ft | -55 °C | 200 °C | 0.19 in | Bare Copper | 76 % | Polytetrafluoroethylene (PTFE) | Bare Copper | Coaxial Plenum | Solid | Enter Number of Feet in Order Quantity | 50 Ohm | Fluorinated Ethylene-Propylene (FEP) | Blue | 0.28 in |
 McGill Microwave Systems | -55 °C | 200 °C | 0.37 in | Bare Copper | 76 % | Polytetrafluoroethylene (PTFE) | Aluminum Copper Coated | Coaxial Plenum | 50 Ohm | Fluorinated Ethylene-Propylene (FEP) | Blue | 0.5 in | |||
McGill Microwave Systems | -55 °C | 200 °C | 0.285 in | Bare Copper | 76 % | Polytetrafluoroethylene (PTFE) | Aluminum Copper Coated | Coaxial Plenum | 50 Ohm | Fluorinated Ethylene-Propylene (FEP) | Blue | 0.402 in |
