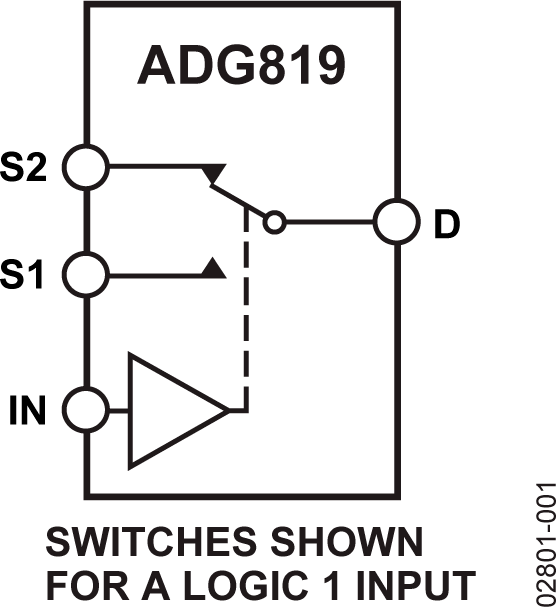

ADG819 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

IC SWITCH SPDT X 1 600MOHM 8MSOP

Part	Number of Circuits	Voltage - Supply, Single (V+) (Minimum)	Voltage - Supply, Single (V+) (Maximum)	Switch Time Toff (Max)	Switch Time Ton (Max)	Channel Capacitance (CS(off))	Channel Capacitance (CD(off))	On-State Resistance (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Current - Leakage (Max)	Multiplexer Inputs	Demultiplexer Outputs	Switch Circuit Type	Channel-to-Channel Matching (ΔRon)	Package Width	Package Name	Package Length	Mounting Type	-3db Bandwidth	Charge Injection	Crosstalk	Package / Case
Analog Devices Inc./Maxim Integrated ADG819BRM	1	1.8 V	5.5 V	16 ns	45 ns	80 pF	80 pF	0.6 Ohms	125 °C	-40 °C	250 pA	2	1	SPDT	60 mOhm	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	Surface Mount	17 MHz	20 pC	-72 dB
Analog Devices Inc./Maxim Integrated ADG819BRTZ-500RL7	1	1.8 V	5.5 V	16 ns	45 ns	80 pF	80 pF	0.6 Ohms	125 °C	-40 °C	250 pA	2	1	SPDT	60 mOhm		SOT-23-6		Surface Mount	17 MHz	20 pC	-72 dB	SOT-23-6
Analog Devices Inc./Maxim Integrated ADG819BRMZ-REEL7	1	1.8 V	5.5 V	16 ns	45 ns	80 pF	80 pF	0.6 Ohms	125 °C	-40 °C	250 pA	2	1	SPDT	60 mOhm	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	Surface Mount	17 MHz	20 pC	-72 dB
Analog Devices Inc./Maxim Integrated ADG819BRTZ-REEL	1	1.8 V	5.5 V	16 ns	45 ns	80 pF	80 pF	0.6 Ohms	125 °C	-40 °C	250 pA	2	1	SPDT	60 mOhm		SOT-23-6		Surface Mount	17 MHz	20 pC	-72 dB	SOT-23-6
Analog Devices Inc./Maxim Integrated ADG819BRM-REEL	1	1.8 V	5.5 V	16 ns	45 ns	80 pF	80 pF	0.6 Ohms	125 °C	-40 °C	250 pA	2	1	SPDT	60 mOhm	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	Surface Mount	17 MHz	20 pC	-72 dB
Analog Devices Inc./Maxim Integrated ADG819BRTZ-REEL7	1	1.8 V	5.5 V	16 ns	45 ns	80 pF	80 pF	0.6 Ohms	125 °C	-40 °C	250 pA	2	1	SPDT	60 mOhm		SOT-23-6		Surface Mount	17 MHz	20 pC	-72 dB	SOT-23-6
Analog Devices Inc./Maxim Integrated ADG819BCBZ-REEL7	1	1.8 V	5.5 V	16 ns	45 ns	80 pF	80 pF	0.6 Ohms	85 °C	-40 °C	250 pA	2	1	SPDT	60 mOhm	2.18 mm	6-WLCSP	1.14 mm	Surface Mount	17 MHz	20 pC	-72 dB	6-WFBGA WLCSP
Analog Devices Inc./Maxim Integrated ADG819BRMZ	1	1.8 V	5.5 V	16 ns	45 ns	80 pF	80 pF	0.6 Ohms	125 °C	-40 °C	250 pA	2	1	SPDT	60 mOhm	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	Surface Mount	17 MHz	20 pC	-72 dB
