284506 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

PLUGGABLE TERM BLOCKS 6 POS TERM

Part	Termination Style	Number of Levels	Color	Plug Wire Entry Angle	Pitch	Features	Type	Mounting Type	Voltage - UL	Wire Gauge or Range - mm² (Minimum)	Wire Gauge or Range - mm² (Maximum)	Positions Per Level	Operating Temperature (Min)	Operating Temperature (Max)	Number of Positions	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Current - UL	Contact Mating Finish	Wire Strip Length (Min)	Wire Strip Length (Max)	Insulation Height	Torque - Screw	Screw Size	Housing Material	Contact Material	Material Flammability Rating
TE Connectivity AMP Connectors 284506-6	Screw - Rising Cage Clamp	1	Green	180 °	0.138 in	Side Stacking	Female Sockets Plug	Free Hanging (In-Line)	300 V	0.05 mm²	2 mm²	6	-40 °C	110 °C	6	30 AWG	14 AWG	11 A	Tin	5 mm	6 mm	0.437 in	0.31 Nm	M2	Nylon 6/6 PA66 Polyamide	Phosphor Bronze	UL94 V-0
TE Connectivity AMP Connectors 284506-8	Screw - Rising Cage Clamp	1	Green	180 °	0.138 in	Side Stacking	Female Sockets Plug	Free Hanging (In-Line)	300 V	0.05 mm²	2 mm²	8	-40 °C	110 °C	8	30 AWG	14 AWG	11 A	Tin	5 mm	6 mm	0.437 in	0.31 Nm	M2	Nylon 6/6 PA66 Polyamide	Phosphor Bronze	UL94 V-0
TE Connectivity AMP Connectors 284506-4	Screw - Rising Cage Clamp	1	Green	180 °	0.138 in	Side Stacking	Female Sockets Plug	Free Hanging (In-Line)	300 V	0.05 mm²	2 mm²	4	-40 °C	110 °C	4	30 AWG	14 AWG	11 A	Tin	5 mm	6 mm	0.437 in	0.31 Nm	M2	Nylon 6/6 PA66 Polyamide	Phosphor Bronze	UL94 V-0
TE Connectivity AMP Connectors 284506-9	Screw - Rising Cage Clamp	1	Green	180 °	0.138 in	Side Stacking	Female Sockets Plug	Free Hanging (In-Line)	300 V	0.05 mm²	2 mm²	9	-40 °C	110 °C	9	30 AWG	14 AWG	11 A	Tin	5 mm	6 mm	0.437 in	0.31 Nm	M2	Nylon 6/6 PA66 Polyamide	Phosphor Bronze	UL94 V-0
TE Connectivity AMP Connectors 2-284506-3	Screw - Rising Cage Clamp	1	Green	180 °	0.138 in	Side Stacking	Female Sockets Plug	Free Hanging (In-Line)	300 V	0.05 mm²	2 mm²	23	-40 °C	110 °C	23	30 AWG	14 AWG	11 A	Tin	5 mm	6 mm	0.437 in	0.31 Nm	M2	Nylon 6/6 PA66 Polyamide	Phosphor Bronze	UL94 V-0
TE Connectivity AMP Connectors 284506-6	Screw - Rising Cage Clamp	1	Green	180 °	0.138 in	Side Stacking	Female Sockets Plug	Free Hanging (In-Line)	300 V	0.05 mm²	2 mm²	6	-40 °C	110 °C	6	30 AWG	14 AWG	11 A	Tin

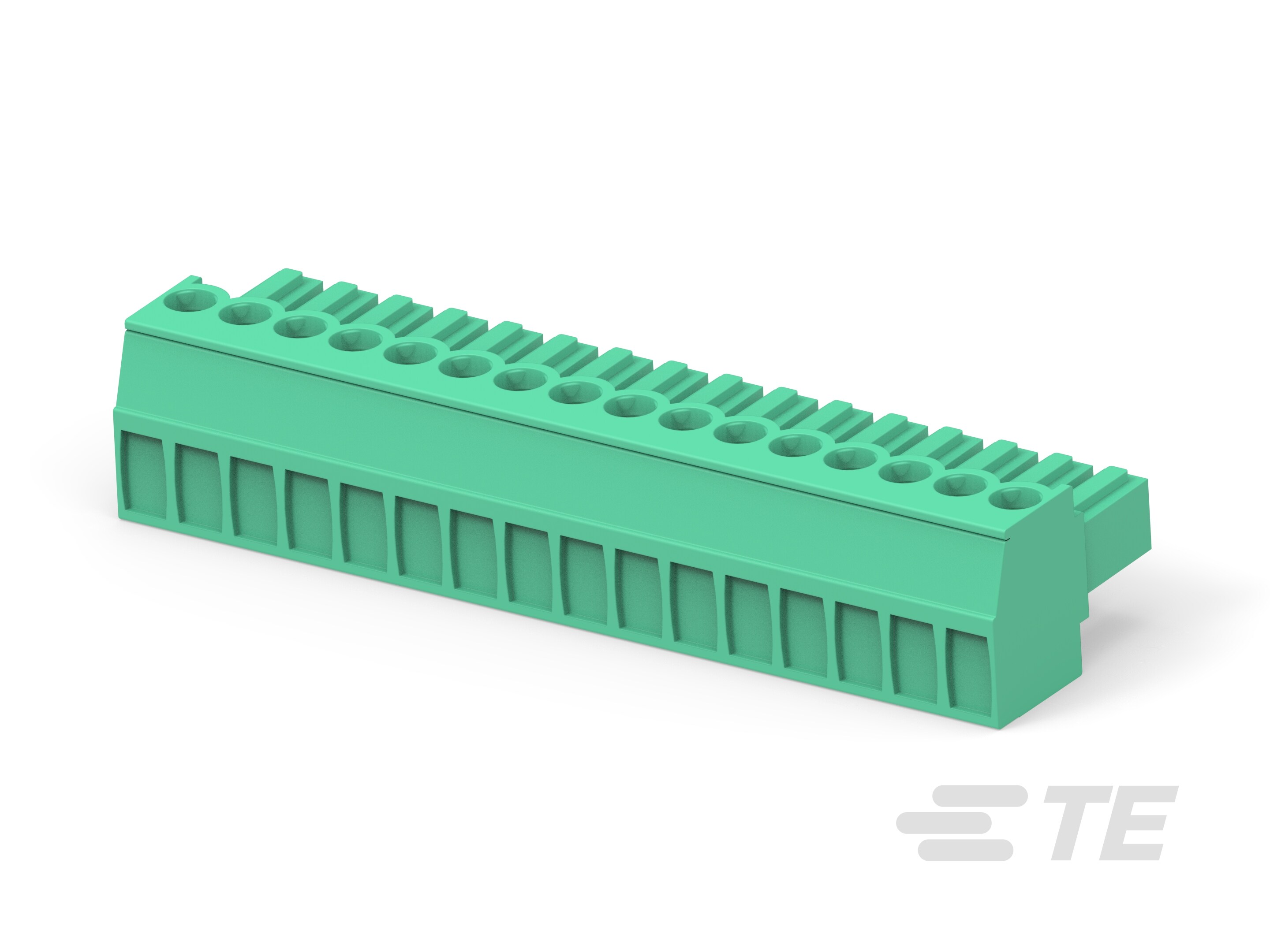

TE Connectivity AMP Connectors 1-284506-6	Screw - Rising Cage Clamp	1	Green	180 °	0.138 in	Side Stacking	Female Sockets Plug	Free Hanging (In-Line)	300 V	0.05 mm²	2 mm²	16	-40 °C	110 °C	16	30 AWG	14 AWG	11 A	Tin	5 mm	6 mm	0.437 in	0.31 Nm	M2	Nylon 6/6 PA66 Polyamide	Phosphor Bronze	UL94 V-0

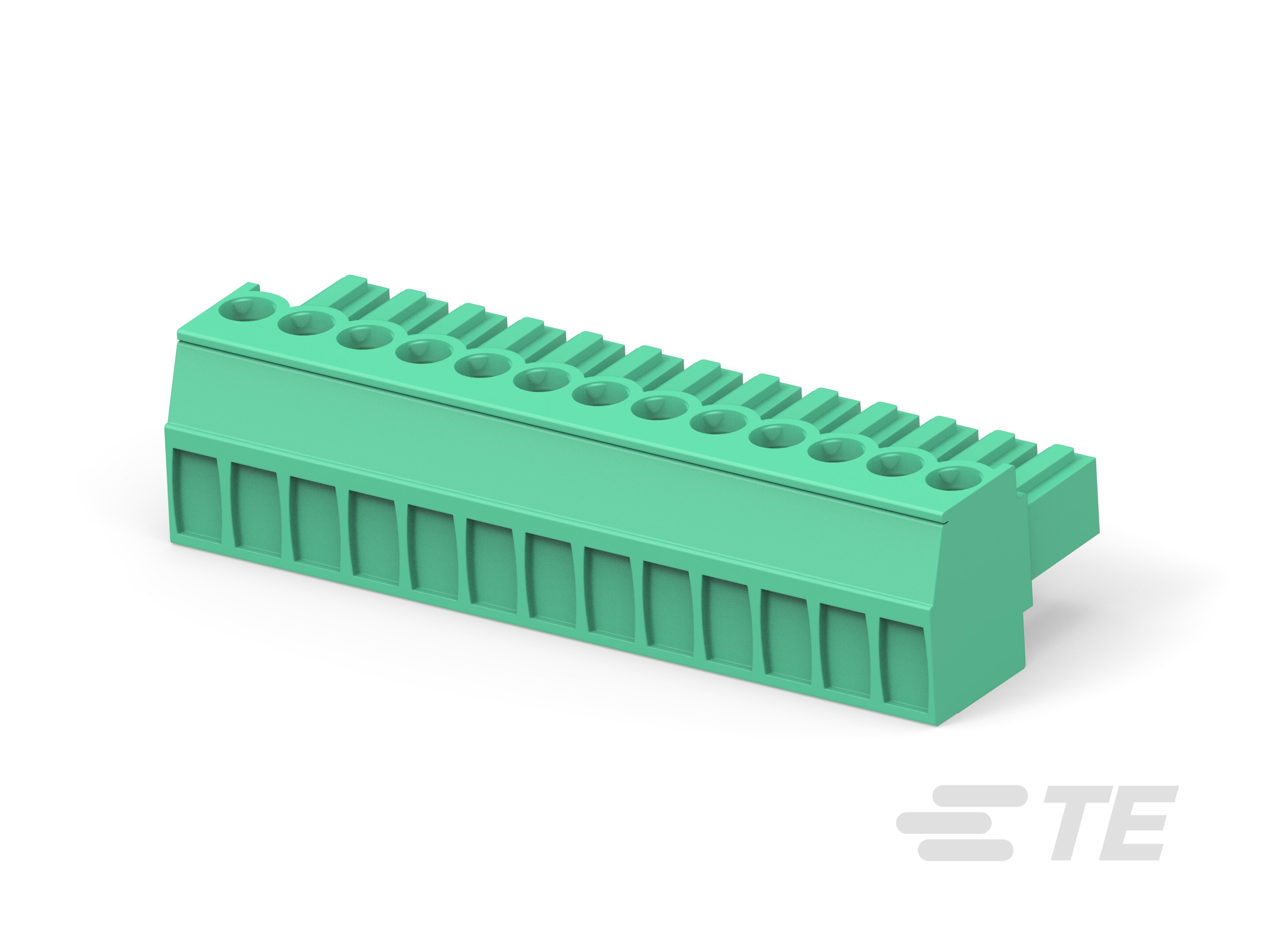

TE Connectivity AMP Connectors 1-284506-3	Screw - Rising Cage Clamp	1	Green	180 °	0.138 in	Side Stacking	Female Sockets Plug	Free Hanging (In-Line)	300 V	0.05 mm²	2 mm²	13	-40 °C	110 °C	13	30 AWG	14 AWG	11 A	Tin	5 mm	6 mm	0.437 in	0.31 Nm	M2	Nylon 6/6 PA66 Polyamide	Phosphor Bronze	UL94 V-0
