APH-SMAP Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
CONN ADAPT SMA PLUG TO MCX JACK
| Part | Body Material | Center Contact Material | Body Finish | Operating Temperature (Min) | Operating Temperature (Max) | Dielectric Material | Center Gender | Frequency - Max | Center Contact Plating | Convert From (Adapter End) | Impedance | Adapter Type | Convert To (Adapter End) Gender | Convert To (Adapter End) Type | Adapter Series | Conversion Type | Style | Mounting Type | Fastening Type | Convert To (Adapter End) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Brass | Beryllium Copper | Gold | -65 °C | 165 °C | Polytetrafluoroethylene (PTFE) | Female Male | 6000 MHz | Gold | Male Pin SMA Plug | 50 Ohm | Plug to Jack | Female Socket | MCX Jack | SMA to MCX | Between Series | Straight | Free Hanging (In-Line) | Snap-On Threaded | |
 McGill Microwave Systems | Brass | Brass | Nickel | -65 °C | 165 °C | Polytetrafluoroethylene (PTFE) | Male | 11 GHz | Gold | Male Pin SMA Plug | 50 Ohm | Plug to Plug | Male Pin | N Plug | SMA to N | Between Series | Straight | Free Hanging (In-Line) | Threaded | |
McGill Microwave Systems | Brass | Beryllium Copper | Gold | -65 °C | 165 °C | Polytetrafluoroethylene (PTFE) | Male | 6000 MHz | Gold | Male Pin SMA Plug | 50 Ohm | Plug to Plug | SMA to MCX | Between Series | Straight | Free Hanging (In-Line) | Snap-On Threaded | Male Pin MCX Plug | ||
McGill Microwave Systems | Brass | Beryllium Copper | Gold | -65 °C | 165 °C | Polytetrafluoroethylene (PTFE) | Female Male | 10 GHz | Gold | Male Pin SMA Plug | 50 Ohm | Plug to Plug | Female Socket | SMB Plug | SMA to SMB | Between Series | Straight | Free Hanging (In-Line) | Snap-On Threaded | |
McGill Microwave Systems | Brass | Phosphor Bronze | Nickel | -65 °C | 165 °C | Polytetrafluoroethylene (PTFE) | Female Male | 2.5 GHz | Gold | Male Pin SMA Plug | 50 Ohm | Plug to Jack | Female Socket | UHF Mini Jack | SMA to UHF | Between Series | Straight | Free Hanging (In-Line) | Threaded | |
 McGill Microwave Systems | Brass | Brass | Nickel | -65 °C | 165 °C | Polytetrafluoroethylene (PTFE) | Male | 11 GHz | Gold | Male Pin SMA Plug | 50 Ohm | Plug to Plug | Male Pin | TNC Plug | SMA to TNC | Between Series | Straight | Free Hanging (In-Line) | Threaded | |
McGill Microwave Systems | Brass | Brass | Gold | -65 °C | 165 °C | Polytetrafluoroethylene (PTFE) | Male | 6000 MHz | Gold | Male Pin SMA Plug | 50 Ohm | Plug to Plug | Male Pin | MMCX Plug | SMA to MMCX | Between Series | Straight | Free Hanging (In-Line) | Snap-On Threaded | |

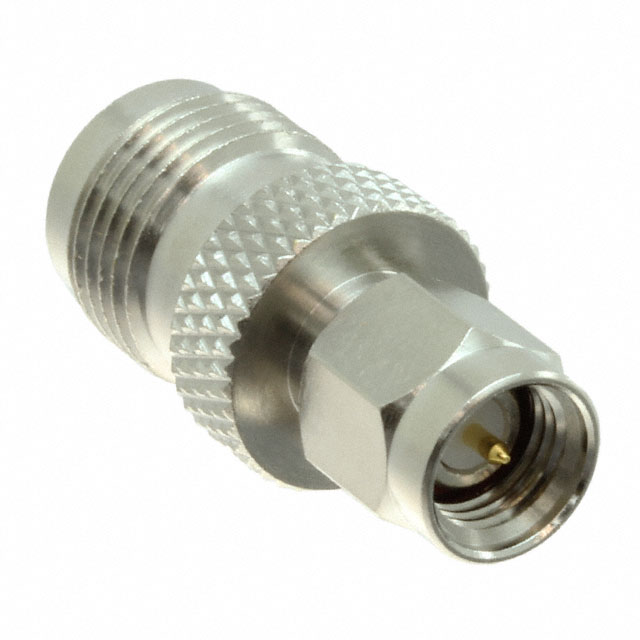

 McGill Microwave Systems | Brass | Phosphor Bronze | Nickel | -65 °C | 165 °C | Polytetrafluoroethylene (PTFE) | Female Male | 11 GHz | Gold | Male Pin SMA Plug | 50 Ohm | Plug to Jack | SMA to TNC | Between Series | Straight | Free Hanging (In-Line) | Threaded | Female Socket TNC Jack |
