ADMV8818 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K

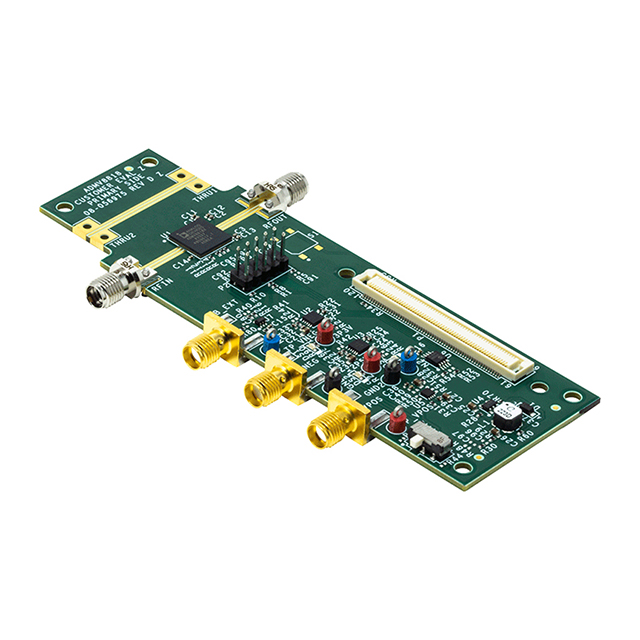

ADMV8818 EVAL BOARD
| Part | Supplied Contents | For Use With/Related Products | Type | Contents | Frequency (Min) | Frequency (Max) | Utilized IC / Part | Voltage - Supply (Range 2 Minimum) | Voltage - Supply (Range 1 Maximum) | Voltage - Supply (Range 1 Minimum) | Voltage - Supply (Range 2 Maximum) | Frequency Range (Min) | Frequency Range (Max) | Operating Temperature (Min) | Operating Temperature (Max) | Package Name | Package Length | Package Width | RF Type | Package / Case | Mounting Type | Insertion Loss | Test Frequency | IIP3 | Impedance | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | Board(s) | ADMV8818 | Tunable Filter | Board | 2 GHz | 18 GHz | ADMV8818 | |||||||||||||||||||
 Analog Devices Inc./Maxim Integrated | 3.2 V | 2.6 V | -2.4 V | 3.4 V | 2 GHz | 18 GHz | -55 °C | 105 °C | 56-LGA | 9 mm | 9 mm | Radar | 56-TFLGA Exposed Pad | Surface Mount | -14.6 dB | 18 GHz | 45 dBm | 50 Ohm | 4 x SP5T |
