PTT Series

Catalog

HEADERS & WIRE HOUSINGS 2.00 MM PRESS-FIT TERMINAL STRIP

Part	Termination	Fastening Type	Pitch - Mating	Contact Length - Post	Insulation Material	Style	Contact Material	Contact Length - Mating	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish - Mating	Connector Type	Current Rating (Per Contact)	Insulation Color	Row Spacing - Mating	Contact Finish Thickness - Mating	Number of Rows	Number of Positions Loaded	Number of Positions	Insulation Height	Shrouding	Contact Finish - Post	Overall Contact Length	Contact Shape	Mounting Type	Contact Type	Number of Positions Loaded
Samtec Inc. PTT-109-01-L-D	Press-Fit Solder	Push-Pull	0.079 in	0.111 in	Liquid Crystal Polymer (LCP)	Board	Phosphor Bronze	0.126 in	125 °C	-55 °C	Gold	Header	2.9 A	Black	0.079 in	10 µin	2	All	18	0.079 in	Unshrouded	Tin	0.316 in	Square	Through Hole	Male Pin
Samtec Inc. PTT-134-01-L-D	Press-Fit Solder	Push-Pull	0.079 in	0.111 in	Liquid Crystal Polymer (LCP)	Board	Phosphor Bronze	0.126 in	125 °C	-55 °C	Gold	Header	2.9 A	Black	0.079 in	10 µin	2	All	68	0.079 in	Unshrouded	Tin	0.316 in	Square	Through Hole	Male Pin
Samtec Inc. PTT-105-01-L-D	Press-Fit Solder	Push-Pull	0.079 in	0.111 in	Liquid Crystal Polymer (LCP)	Board	Phosphor Bronze	0.126 in	125 °C	-55 °C	Gold	Header	2.9 A	Black	0.079 in	10 µin	2	All	10	0.079 in	Unshrouded	Tin	0.316 in	Square	Through Hole	Male Pin
Samtec Inc. PTT-140-01-L-D	Press-Fit Solder	Push-Pull	0.079 in	0.111 in	Liquid Crystal Polymer (LCP)	Board	Phosphor Bronze	0.126 in	125 °C	-55 °C	Gold	Header	2.9 A	Black	0.079 in	10 µin	2	All	80	0.079 in	Unshrouded	Tin	0.316 in	Square	Through Hole	Male Pin
Samtec Inc. PTT-110-01-S-5-001	Press-Fit Solder	Push-Pull	0.079 in	0.111 in	Liquid Crystal Polymer (LCP)	Board	Phosphor Bronze	0.126 in	125 °C	-55 °C	Gold	Header	2.9 A	Black	0.079 in	30 µin	5		50	0.079 in	Unshrouded	Tin	0.316 in	Square	Through Hole	Male Pin	49

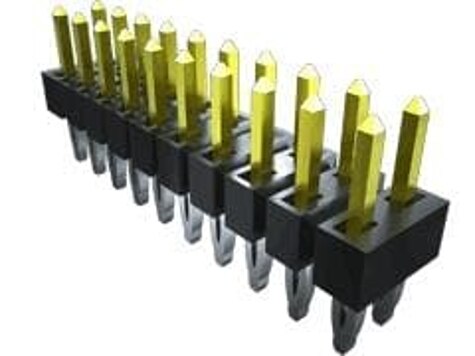

Samtec Inc. PTT-107-01-S-T	Press-Fit Solder	Push-Pull	0.079 in	0.111 in	Liquid Crystal Polymer (LCP)	Board	Phosphor Bronze	0.126 in	125 °C	-55 °C	Gold	Header	2.9 A	Black	0.079 in	30 µin	3	All	21	0.079 in	Unshrouded	Tin	0.316 in	Square	Through Hole	Male Pin
Samtec Inc. PTT-113-01-S-T	Press-Fit Solder	Push-Pull	0.079 in	0.111 in	Liquid Crystal Polymer (LCP)	Board	Phosphor Bronze	0.126 in	125 °C	-55 °C	Gold	Header	2.9 A	Black	0.079 in	30 µin	3	All	39	0.079 in	Unshrouded	Tin	0.316 in	Square	Through Hole	Male Pin
Samtec Inc. PTT-110-01-L-D	Press-Fit Solder	Push-Pull	0.079 in	0.111 in	Liquid Crystal Polymer (LCP)	Board	Phosphor Bronze	0.126 in	125 °C	-55 °C	Gold	Header	2.9 A	Black	0.079 in	10 µin	2	All	20	0.079 in	Unshrouded	Tin	0.316 in	Square	Through Hole	Male Pin

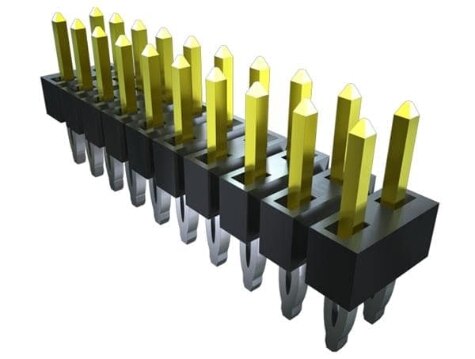

Samtec Inc. PTT-120-01-SM-D-002	Press-Fit Solder	Push-Pull	0.079 in	0.111 in	Liquid Crystal Polymer (LCP)	Board	Phosphor Bronze	0.126 in	125 °C	-55 °C	Gold	Header	2.9 A	Black	0.079 in	30 µin	2		40	0.079 in	Unshrouded	Tin	0.316 in	Square	Through Hole	Male Pin	39
Samtec Inc. PTT-109-01-S-S	Press-Fit Solder	Push-Pull	0.079 in	0.111 in	Liquid Crystal Polymer (LCP)	Board	Phosphor Bronze	0.126 in	125 °C	-55 °C	Gold	Header	2.9 A	Black		30 µin	1	All	9	0.079 in	Unshrouded	Tin	0.316 in	Square	Through Hole	Male Pin
