97-3100A36 Series
Manufacturer: Amphenol Aerospace Operations
Beta
⌘K

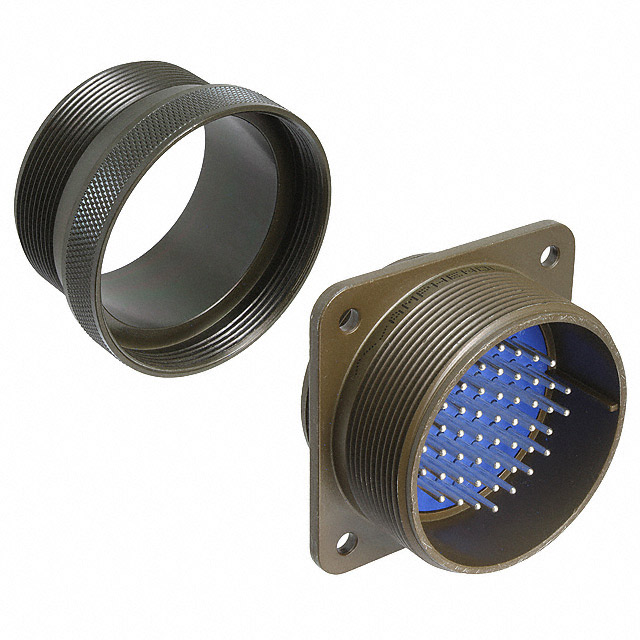

CONN RCPT MALE 48P SOLDER CUP
| Part | Shell Finish | Features | Shell Material | Insert Material | Orientation | Contact Finish - Mating | Mounting Type | Color | Applications | Backshell Material | Plating | Number of Positions | Operating Temperature (Max) | Operating Temperature (Min) | Termination | Shell Size - Insert Length | Shell Size - Insert Width | Mounting Feature | Fastening Type | Primary Material | Shielding | Contact Material | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Aerospace Operations | Cadmium Olive Drab Chromate | Backshell | Aluminum Alloy | DAP Diallyl Phthalate | N (Normal) | Silver | Panel Mount | Olive Drab | Automotive Industrial | Aluminum Alloy | Olive Drab Chromate over Cadmium | 48 | 125 °C | -55 °C | Solder Cup | 36 mm | 10 mm | Flange | Threaded | Metal | Unshielded | Copper Alloy | Male Pins Receptacle |
