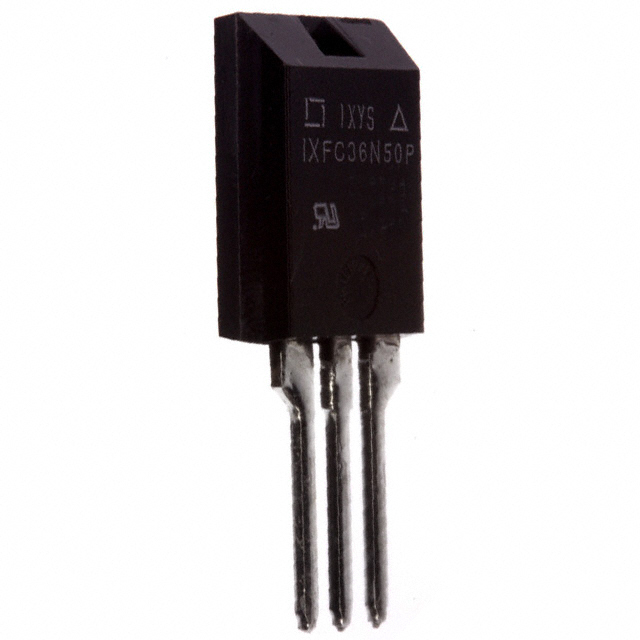

IXFC36N50 Series
Manufacturer: LITTELFUSE
Beta
⌘K
MOSFET N-CH 500V 19A ISOPLUS220
| Part | FET Type | Operating Temperature (Min) | Operating Temperature (Max) | Package / Case | Vgs (Max) | Drain to Source Voltage (Vdss) | Gate Charge (Max) | Drive Voltage (Max Rds On, Min Rds On) | Input Capacitance (Ciss) (Max) | Rds On (Max) | Vgs(th) (Max) | Mounting Type | Current - Continuous Drain (Id) (Tc) | Technology | Package Name | Power Dissipation (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | N-Channel | -55 °C | 150 °C | ISOPLUS220™ | 30 V | 500 V | 93 nC | 10 V | 5500 pF | 190 mOhm | 5 V | Through Hole | 19 A | MOSFET (Metal Oxide) | ISOPLUS220™ | 156 W |
