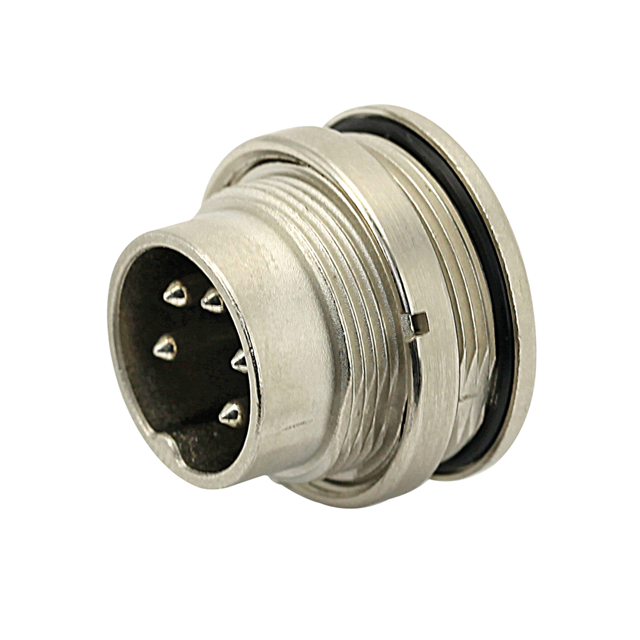

C091 11C014 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
REAR MOUNTING MALE METAL RECEPTA
| Part | Operating Temperature (Max) | Operating Temperature (Min) | Contact Type | Shell Size - Insert | Type | Note | Number of Positions | Connector Type | Shell Finish | Contact Shape | Ingress Protection Description | Ingress Protection IP Rating | Fastening Type | Mounting Feature | Contact Size | Mounting Type | Shell Material | Housing Color | Orientation | Insert Material | Material Flammability Rating | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | 100 °C | -40 °C | Crimp | M16-14 | For Male Pins | Contacts Not Included | 14 | Receptacle Housing | Nickel | Circular | Dust Tight Water Resistant Waterproof | IP65 IP67 | Threaded | Bulkhead Front Side Nut | 1 mm | Panel Mount | Zinc Die Cast | Silver | Keyed | Thermoplastic | UL94 V-0 | Shielded |
