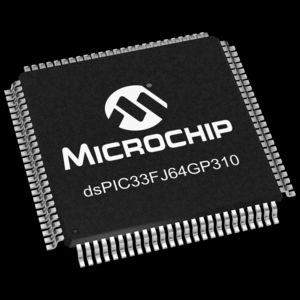

dsPIC33FJ64GP310 Series
Manufacturer: Microchip Technology
Catalog
Description
AI
dsPIC33F General Purpose Digital Signal Controller (DSC) with seamless migration options to PIC24F, PIC24H MCUs and dsPIC30F DSCs in similar packages.
Beta
⌘K
DIGITAL SIGNAL CONTROLLER, DSPIC33F SERIES, 40 MHZ, 64 KB, 85 I/O'S, DCI, I2C, SPI, UART, 2.75 V
| Part | Type | Voltage - Supply (Vcc/Vdd) Maximum | Voltage - Supply (Vcc/Vdd) Minimum | Oscillator Type | A/D Resolution (bits) | A/D Channels | Operating Temperature (Max) | Operating Temperature (Min) | Program Memory Type | Speed | Peripherals | Core Processor | Connectivity | Package Length | Package Name | Package Width | Number of I/O | Core Size (Bit Width) | Package / Case | Program Memory Depth | Program Memory Width | Program Memory Size | RAM Size Width | RAM Size Depth | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Microchip Technology | Digital Signal Controllers | 3.6 V | 3 V | Internal | 10 bit 12 bit | 32 count | 85 °C | -40 °C | FLASH | 40 MIPs | AC'97 Brown-out Detect DMA I2S POR PWM Reset WDT | dsPIC | I2C IrDA LINbus SPI UART USART | 12 mm | 100-TQFP | 12 mm | 85 | 16 Bit | 100-TQFP | 64 K | 8 bit | 64 KB | 8 bit | 16 K | Surface Mount |
