105133 Series
Manufacturer: Molex
Beta
⌘K

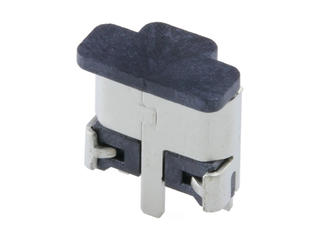

MICRO-USB B RECEPTACLE, VERTICAL, SURFACE MOUNT, 6.70MM HEIGHT, 2.30MM SOLDER TABS, WITH COVER, LEAD-FREE, GOLD (AU) PLATING
| Part | Operating Temperature (Max) | Operating Temperature (Min) | Termination | Number of Ports | Mounting Feature | Number of Contacts | Voltage - Rated | Specifications | Features | Gender | Connector Type | Shielding | Mounting Type | Mating Cycles | Current Rating Options | Shell/Shielding Material | Material Flammability Rating | Insulation Color | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 85 °C | -35 °C | Solder | 1 | Vertical | 5 | 30 VAC | USB 2.0 | Pick and Place | Receptacle | USB - micro B | Shielded | Surface Mount | 10000 cycles | 1.8A 1A | Stainless Steel | UL94 V-0 | Black | Gold |
 Molex | 85 °C | -30 °C | Solder | 1 | Vertical | 5 | 30 VAC | USB 2.0 | Pick and Place | Receptacle | USB - micro B | Shielded | Surface Mount | 10000 cycles | 1.8A 1A | Stainless Steel | UL94 V-0 | Black | Gold |
 Molex | 85 °C | -35 °C | Solder | 1 | Vertical | 5 | 30 VAC | USB 2.0 | Cover Pick and Place | Receptacle | USB - micro B | Shielded | Surface Mount | 10000 cycles | 1.8A 1A | Stainless Steel | UL94 V-0 | Black | Gold |
 Molex | 85 °C | -30 °C | Solder | 1 | Vertical | 5 | 30 VAC | USB 2.0 | Pick and Place | Receptacle | USB - micro B | Shielded | Surface Mount | 10000 cycles | 1.8A 1A | Stainless Steel | UL94 V-0 | Black | Gold |
