MS3057 Series

Catalog

CONN BACKSHELL

Part	For Use With/Related Products	Primary Material	Thread Pitch (TPI)	Thread Size (Class)	Thread Size (Nominal)	Type	Plating	Shell Size - Insert	Shielding	Cable Exit Angle	Cable Opening	Cable Opening (Max)	Cable Opening (Min)	Material	Shell Size - Insert	Accessory Type

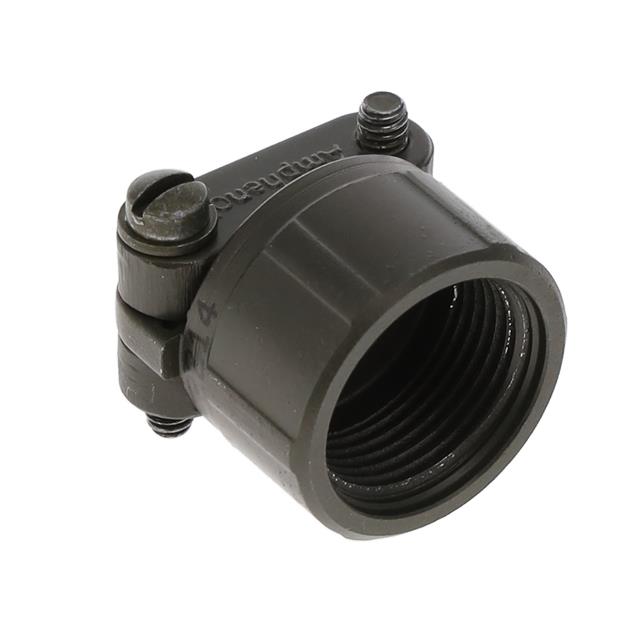

McGill Microwave Systems MS3057-4A	MIL-C-22992 Connectors	Metal	24 TPI	UNEF	0.625 in	Cable Clamp	Cadmium	10S 10SL 12 12S 12SL	Unshielded	180 °	0.312 in

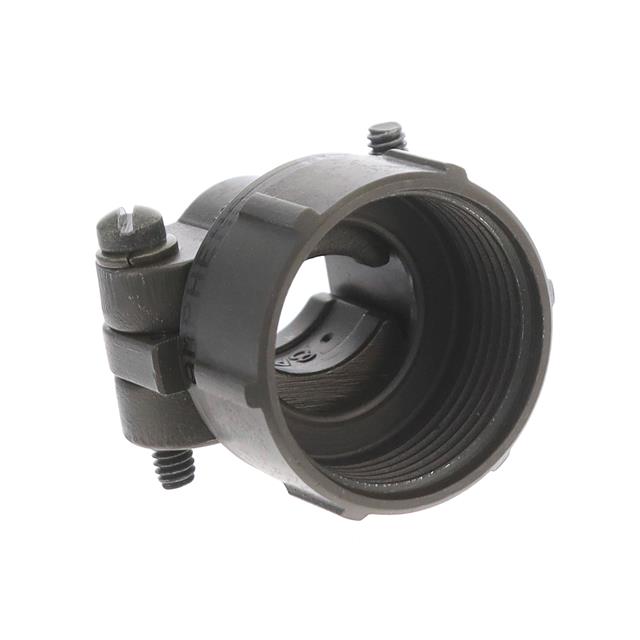

McGill Microwave Systems MS3057-8A	MIL-C-22992 Connectors	Metal				Cable Clamp	Cadmium	16 16S	Unshielded	180 °		0.515 in	0.316 in

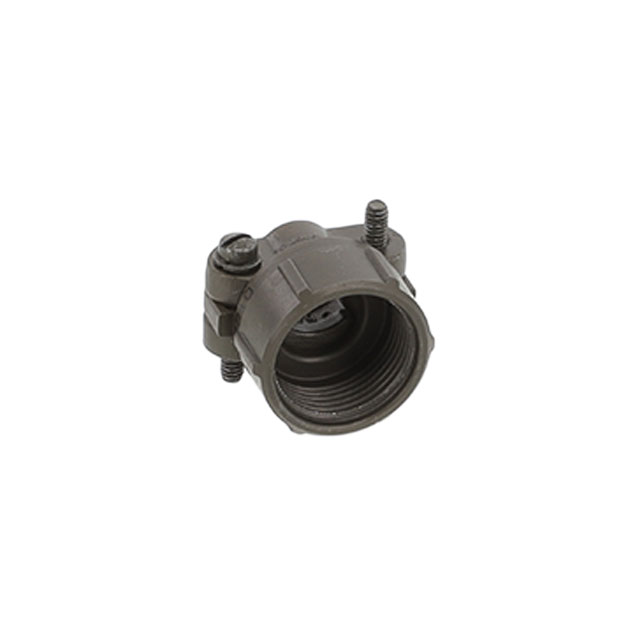

McGill Microwave Systems MS3057-6A	MIL-C-22992 Connectors	Metal				Cable Clamp	Cadmium	14 14S	Unshielded	180 °		0.428 in	0.23 in
McGill Microwave Systems MS3057-12AC
McGill Microwave Systems MS3057-20A W/B		Metal				Cable Clamp		32	Unshielded	180 °				Aluminum Alloy	32
McGill Microwave Systems MS3057-6A W/B		Metal				Cable Clamp		14	Unshielded	180 °				Aluminum Alloy

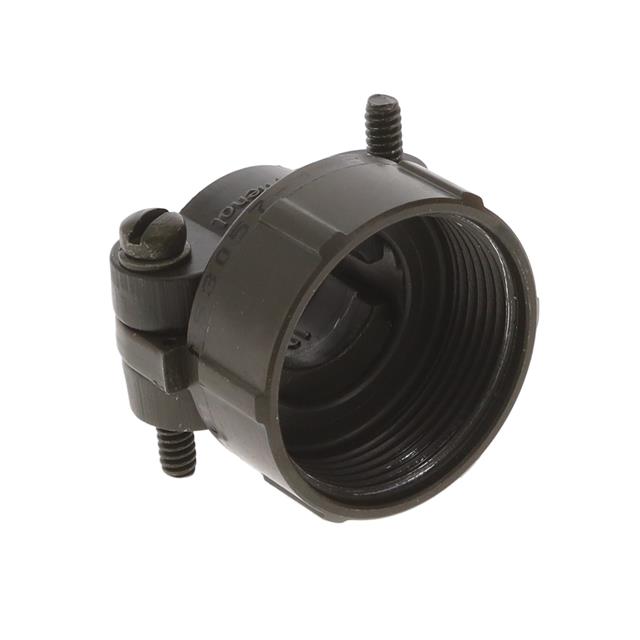

McGill Microwave Systems MS3057-10A	MS Series Connectors							18							18	Cable Clamp

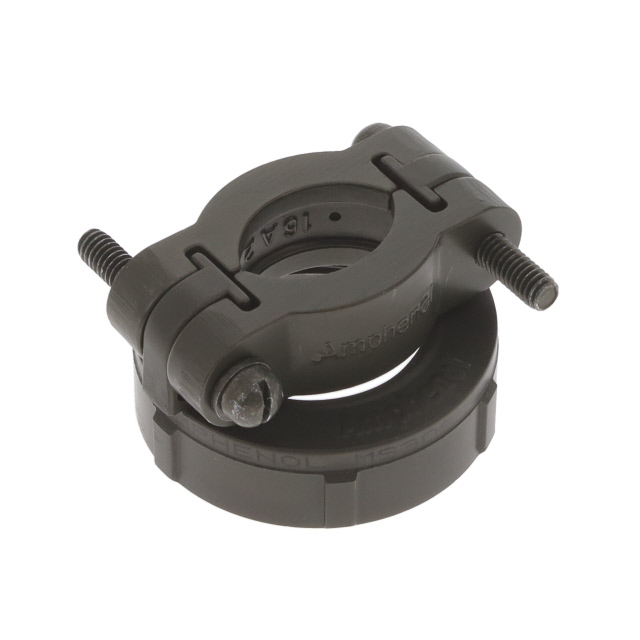

McGill Microwave Systems MS3057-16A	MIL-C-22992 Connectors	Metal				Cable Clamp	Cadmium	24 28	Unshielded	180 °		0.926 in	0.611 in
McGill Microwave Systems MS3057-12A-624		Metal				Cable Clamp		20 22	Unshielded	180 °				Aluminum Alloy
McGill Microwave Systems MS3057-3A	MS Series Connectors							8S								Cable Clamp
