D-CGRADE-MV Series

Catalog

SENSOR 30PSID 0.19" .09V

Part	Operating Temperature (Max)	Operating Temperature (Min)	Termination Style	Accuracy	Mounting Type	Package / Case	Voltage - Supply	Features	Operating Pressure	Output Type	Port Style	Output Voltage (Max)	Output Voltage (Min)	Port Diameter	Port Feature	Port Gender	Pressure Type	Applications	Maximum Pressure
McGill Microwave Systems 30 PSI-D-CGRADE-MV	85 °C	-25 °C	PC Pin	1 %	Through Hole	6-SIP Module	16 V	Temperature Compensated	30 PSI	Wheatstone Bridge	Barbless	90 mV	0 mV	0.19 "	Dual Tube	Male	Differential	Board Mount	90 PSI

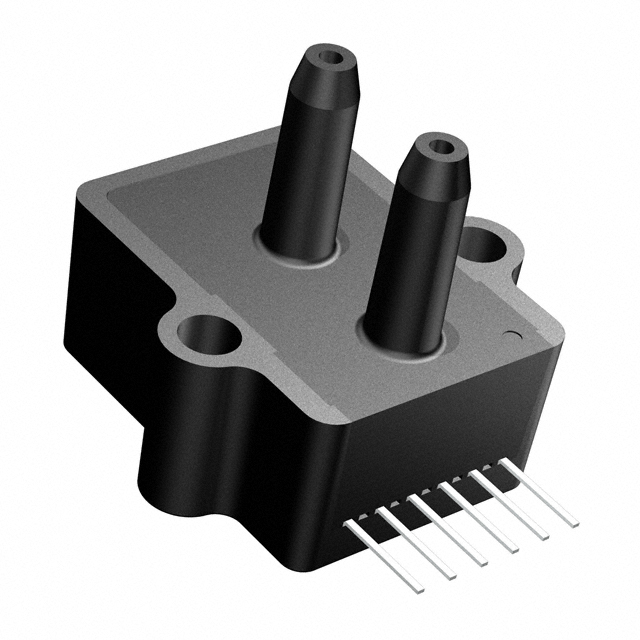

McGill Microwave Systems 100 PSI-D-CGRADE-MV	85 °C	-25 °C	PC Pin	1 %	Through Hole	6-SIP Module	16 V	Temperature Compensated	100 PSI	Wheatstone Bridge	Barbless	100 mV	0 mV	0.19 "	Dual Tube	Male	Differential	Board Mount	200 PSI
McGill Microwave Systems 4 INCH-D-CGRADE-MV	85 °C	-25 °C	PC Pin	1 %	Through Hole	6-SIP Module	16 V	Temperature Compensated	0.15 PSI	Wheatstone Bridge	Barbless	40 mV	0 mV	0.19 "	Dual Tube	Male	Differential	Board Mount	1 PSI
McGill Microwave Systems 5 PSI-D-CGRADE-MV	85 °C	-25 °C	PC Pin	1 %	Through Hole	6-SIP Module	16 V	Temperature Compensated	5 PSI	Wheatstone Bridge	Barbless	60 mV	0 mV	0.19 "	Dual Tube	Male	Differential	Board Mount	10 PSI
McGill Microwave Systems 1 PSI-D-CGRADE-MV	85 °C	-25 °C	PC Pin	1 %	Through Hole	6-SIP Module	16 V	Temperature Compensated	1 PSI	Wheatstone Bridge	Barbless	18 mV	0 V	0.19 "	Dual Tube	Male	Differential	Board Mount	5 PSI
McGill Microwave Systems 0.3 PSI-D-CGRADE-MV	85 °C	-25 °C	PC Pin	1 %	Through Hole	6-SIP Module	16 V	Temperature Compensated	0.3 PSI	Wheatstone Bridge	Barbless	20 mV	0 mV	0.19 "	Dual Tube	Male	Differential	Board Mount	3 PSI
