165X026 Series

Catalog

CONN BACKSHELL 9POS 180DEG SHLD

Part	Primary Material	Features	Color	Accessory Type	Number of Positions	Compatible D-Sub Size	Cable Type	Cable Exit Angle	Material	Plating	Hardware	Shielding	Compatible Shell Size
McGill Microwave Systems 165X02649XE	Metal	Mating Screws M3	Silver	Two Piece Backshell	9	9pos HD15pos	Round	180 °	Metal Zinc	Nickel	Assembly Hardware Strain Relief	Shielded	E
McGill Microwave Systems 165X02619X	Metal	Mating Screws 4-40	Silver	Two Piece Backshell	15	15pos HD26pos	Round	180 °	Metal Zinc	Nickel	Strain Relief	Shielded	A

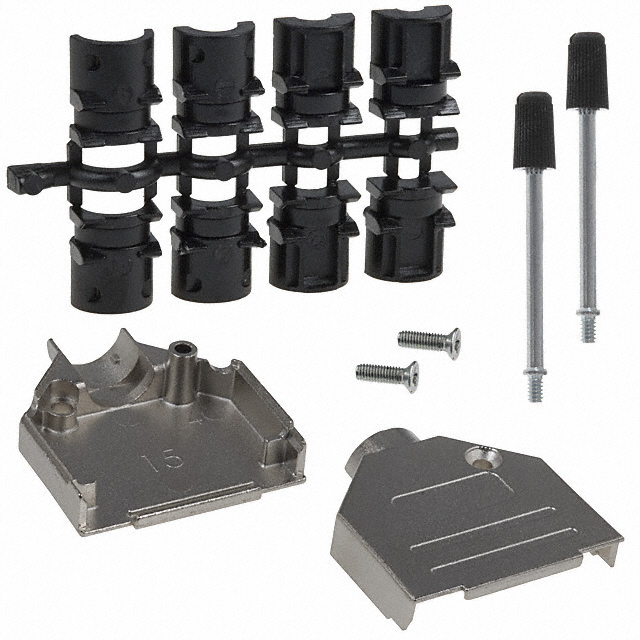

McGill Microwave Systems 165X02619XE	Metal	Mating Screws 4-40	Silver	Two Piece Backshell	15	15pos HD26pos	Round	180 °	Metal Zinc	Nickel	Assembly Hardware Strain Relief	Shielded	A
McGill Microwave Systems 165X02649X	Metal	Mating Screws M3	Silver	Two Piece Backshell	9	9pos HD15pos	Round	180 °	Metal Zinc	Nickel	Assembly Hardware Strain Relief	Shielded	E
McGill Microwave Systems 165X02689X	Metal	Mating Screws 4-40	Silver	Two Piece Backshell	9	9pos HD15pos	Round	45 °	Metal Zinc	Nickel	Assembly Hardware Grommets	Shielded	E
McGill Microwave Systems 165X02689XE	Metal	Mating Screws 4-40	Silver	Two Piece Backshell	9	9pos HD15pos	Round	45 °	Metal Zinc	Nickel	Assembly Hardware Strain Relief	Shielded	E

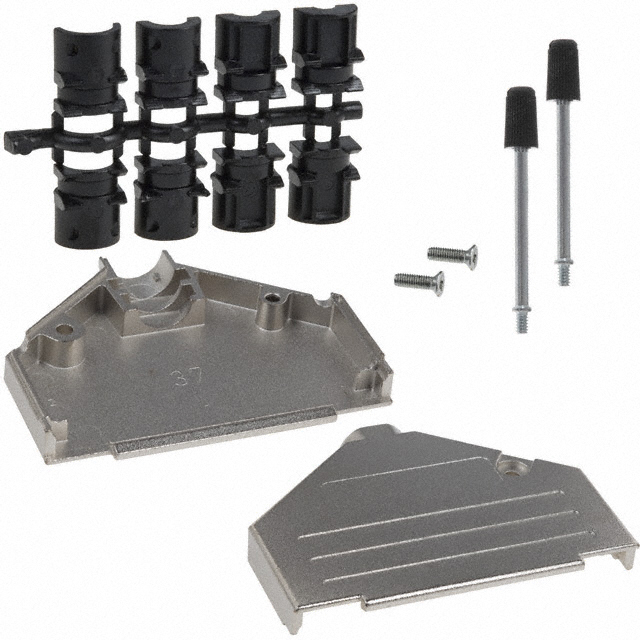

McGill Microwave Systems 165X02639XE	Metal	Mating Screws 4-40	Silver	Two Piece Backshell	37 pos	37pos HD62pos	Round	180 °	Metal Zinc	Nickel	Assembly Hardware Strain Relief	Shielded	C
McGill Microwave Systems 165X02629X	Metal	Mating Screws 4-40	Silver	Two Piece Backshell	25	25pos HD44pos	Round	180 °	Metal Zinc	Nickel	Strain Relief	Shielded	B
McGill Microwave Systems 165X02659X	Metal	Mating Screws M3	Silver	Two Piece Backshell	15	15pos HD26pos	Round	180 °	Metal Zinc	Nickel	Assembly Hardware Strain Relief	Shielded	A
McGill Microwave Systems 165X02699X	Metal	Mating Screws 4-40	Silver	Two Piece Backshell	15	15pos HD26pos	Round	45 °	Metal Zinc	Nickel	Assembly Hardware Strain Relief	Shielded	A
