205826 Series

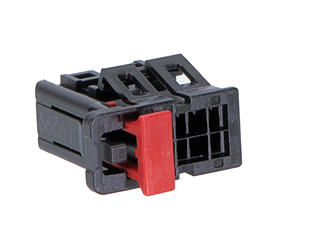

ConnTAK50 Tang Receptacle with Large CPA, Dual Row, 10 Circuits / 8 Circuits Usable, Key B, Natural

Manufacturer: Molex

Catalog

ConnTAK50 Tang Receptacle with Large CPA, Dual Row, 10 Circuits / 8 Circuits Usable, Key B, Natural

Part	Features	Contact Type	Number of Positions	Fastening Type	Contact Termination	Pitch	Number of Rows	Insulation Material	Color	Operating Temperature (Min)	Operating Temperature (Max)	Connector Type	Row Spacing	Mounting Type	Accessory Type
Molex 2058264082	Connector Position Assurance (CPA)	Female Socket	8	Latch Holder	Crimp	0.071 in	2	Glass Filled Nylon 6 Polyamide (PA6)	Natural	-40 °C	105 °C	Receptacle	0.059 in	Panel Mount Snap-In
Molex 2058264083
Molex 2058264203		Female Socket	20	Latch Holder	Crimp	0.071 in	2	Glass Filled Nylon 6 Polyamide (PA6)	Blue	-40 °C	105 °C	Receptacle	0.059 in	Panel Mount Snap-In
Molex 2058264204		Female Socket	20	Latch Holder	Crimp	0.071 in	2	Glass Filled Nylon 6 Polyamide (PA6)	Violet	-40 °C	105 °C	Receptacle	0.059 in	Panel Mount Snap-In
Molex 2058264201		Female Socket	20	Latch Holder	Crimp	0.071 in	2	Glass Filled Nylon 6 Polyamide (PA6)	Black	-40 °C	105 °C	Receptacle	0.059 in	Panel Mount Snap-In
Molex 2058267100	Right Angle Cable Exit		8 10												Cap Cap (Cover) Wire
Molex 2058264081	Connector Position Assurance (CPA)	Female Socket	8	Latch Holder	Crimp	0.071 in	2	Glass Filled Nylon 6 Polyamide (PA6)	Black	-40 °C	105 °C	Receptacle	0.059 in	Panel Mount Snap-In
Molex 2058264200	Connector Position Assurance (CPA)	Female Socket	20	Locking Ramp	Crimp	0.071 in	2	Glass Filled Nylon 6/6 Polyamide (PA66)				Receptacle	0.059 in	Panel Mount Snap-In
Molex 2058264202

ConnTAK50 Tang Receptacle with Large CPA, Dual Row, 10 Circuits / 8 Circuits Usable, Key B, Natural
