C4SMF Series

Catalog

LED RED CLEAR 4MM OVAL T/H

Part	Lens Style	Package / Case	Lens Length	Lens Width	Current - Test	Millicandela Rating	Lens Transparency	Height (Max)	Lens Color	Mounting Type	Configuration	Voltage - Forward (Vf) (Typ)	Color	Supplier Device Package Size	Supplier Device Package Shape	Package Name	Wavelength - Dominant
CreeLED, Inc. C4SMF-RJF-CU34QBB2	Domed Top Oval	Radial	4.2 mm	3.1 mm	20 mA	2412 mcd	Clear	10.35 mm	Red	Through Hole	Standard	2.1 V	Red	4 mm	Oval	4mm Oval	621 nm

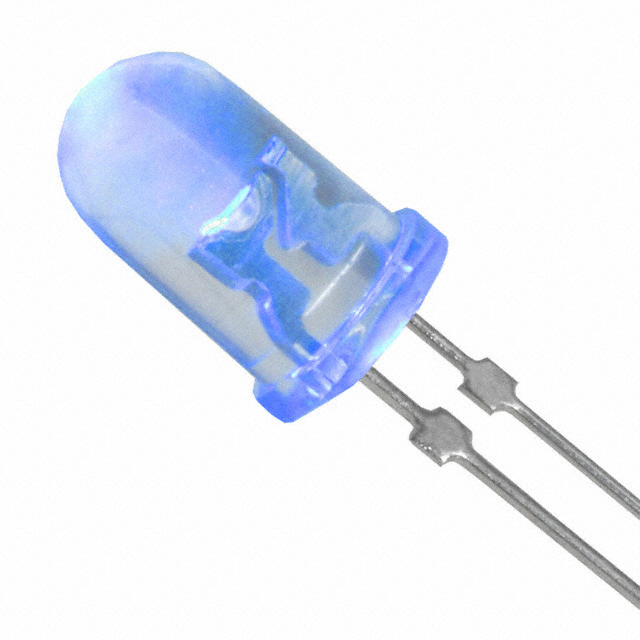

CreeLED, Inc. C4SMF-BJF-CS24Q4S1	Domed Top Oval	Radial	4.2 mm	3.1 mm	20 mA	1134 mcd		10.9 mm		Through Hole	Standard	3.4 V	Blue	4 mm	Oval	4mm Oval	465 nm
CreeLED, Inc. C4SMF-GJF-CV14Q7T1	Domed Top Oval	Radial	4.2 mm	3.1 mm	20 mA	2860 mcd	Clear	10.35 mm	Green	Through Hole	Standard	3.4 V	Green	4 mm	Oval	4mm Oval	527 nm
CreeLED, Inc. C4SMF-RJF-CT34QBB2	Domed Top Oval	Radial	4.2 mm	3.1 mm	20 mA	1720 mcd	Clear	10.35 mm	Red	Through Hole	Standard	2.1 V	Red	4 mm	Oval	4mm Oval	621 nm
CreeLED, Inc. C4SMF-BJF-CR14Q4T2	Domed Top Oval	Radial	4.2 mm	3.1 mm	20 mA	742 mcd	Clear	10.35 mm	Blue	Through Hole	Standard	3.4 V	Blue	4 mm	Oval	4mm Oval	470 nm
CreeLED, Inc. C4SMF-GJF-CV14Q7S1	Domed Top Oval	Radial	4.2 mm	3.1 mm	20 mA	2860 mcd	Clear	10.35 mm	Green	Through Hole	Standard	3.4 V	Green	4 mm	Oval	4mm Oval	527 nm
CreeLED, Inc. C4SMF-BJF-CR24Q4T2	Domed Top Oval	Radial	4.2 mm	3.1 mm	20 mA	811 mcd	Clear	10.35 mm	Blue	Through Hole	Standard	3.4 V	Blue	4 mm	Oval	4mm Oval	470 nm
CreeLED, Inc. C4SMF-BJF-CS44Q3S2	Domed Top Oval	Radial	4.2 mm	3.1 mm	20 mA	1345 mcd		10.9 mm		Through Hole	Standard	3.4 V	Blue	4 mm	Oval	4mm Oval	465 nm
CreeLED, Inc. C4SMF-GJF-CW14Q7S1	Domed Top Oval	Radial	4.2 mm	3.1 mm	20 mA	4010 mcd		10.9 mm		Through Hole	Standard	3.4 V	Green	4 mm	Oval	4mm Oval	525 nm
CreeLED, Inc. C4SMF-AJF-CT0V0252	Domed Top Oval	Radial	4.2 mm	3.1 mm	20 mA	1500 mcd	Clear	9.9 mm		Through Hole	Standard	2.1 V	Amber	4 mm	Oval	4mm Oval	591 nm
