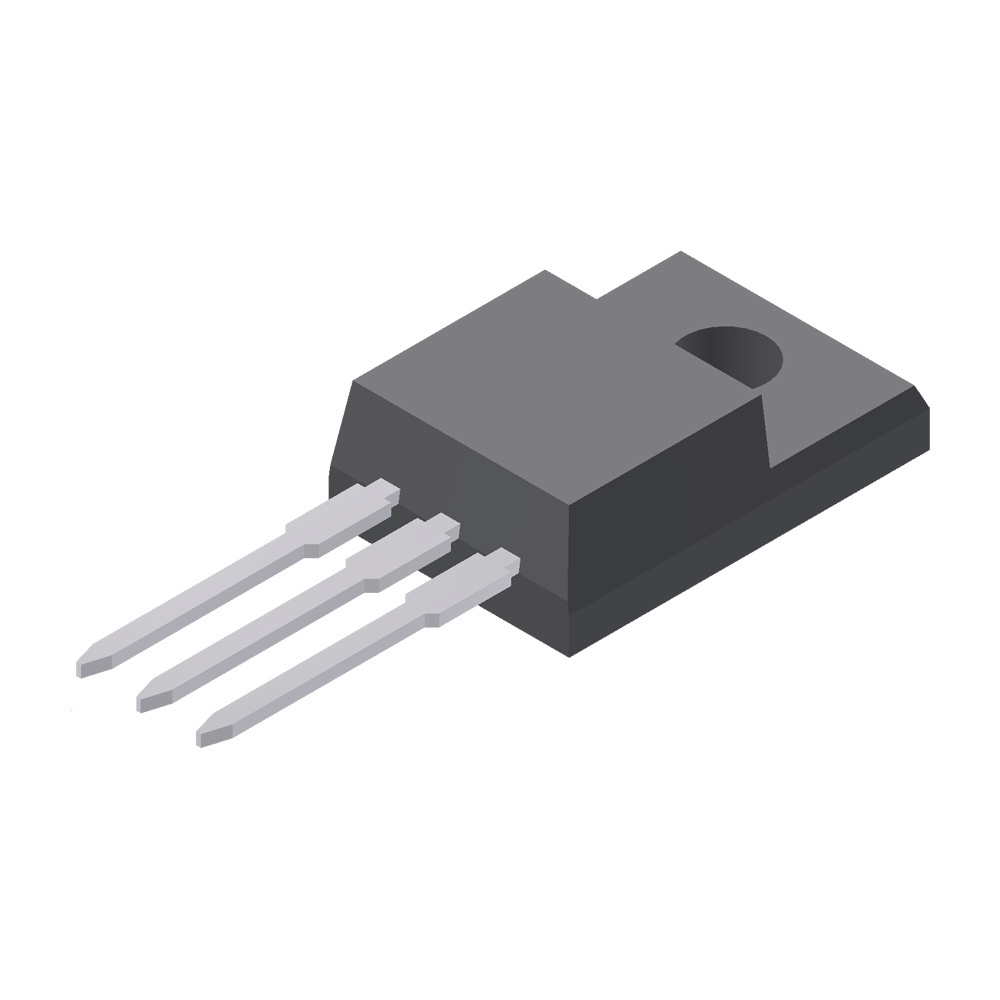

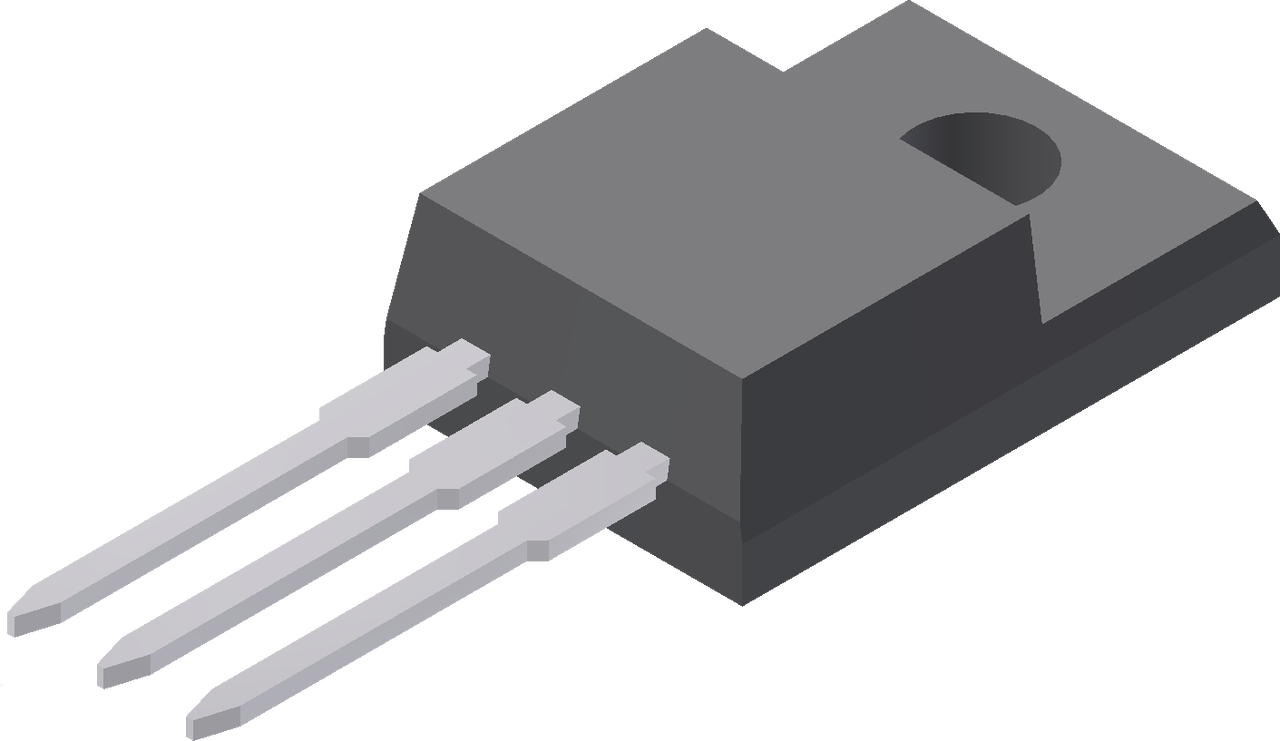

Pwr Thyristor Disc-SCR TO-220AB/TO-220FP
Description
AI
The High Efficiency SCR series offers thyristors in various packages with improved forward voltage characteristics and breakdown voltages up to 1200V.
Beta
⌘K
Pwr Thyristor Disc-SCR TO-220AB/TO-220FP
Pwr Thyristor Disc-SCR TO-220AB/TO-220FP
| Part | Current - Gate Trigger (Igt) (Max) | Voltage - On State (Vtm) (Max) | Operating Temperature (Min) | Operating Temperature (Max) | Package Name | Current - On State (It (RMS)) (Max) | Current - On State (Max) | Package / Case | Voltage - Off State | Current - Non Rep. Surge Type | Current - Non Rep. Surge Frequencies | Current - Non Rep. Surge (Itsm) | Mounting Type | SCR Type | Voltage - Gate Trigger (Vgt) (Max) | Current - Hold (Ih) (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 30 mA | 1.14 V | -55 °C | 150 °C | TO-220ABFP | 16 A | 10 A | TO-220-3 Full Pack | 800 V | Itsm | 50Hz 60Hz | 180 A 195 A | Through Hole | Standard Recovery | 1.3 V | 60 mA |
