C091 D Series

Catalog

CIRCULAR DIN CONNECTORS F CONN 3CONTACT R ANG 4-6MM

Part	Ingress Protection Description	Ingress Protection IP Rating	Material Flammability Rating	Orientation	Contact Size	Connector Type	Shielding	Type	Shell Material	Contact Type	Fastening Type	Mounting Type	Shell Finish	Insert Material	Housing Color	Contact Shape	Features	Number of Positions	Note	Shell Size - Insert	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Feature

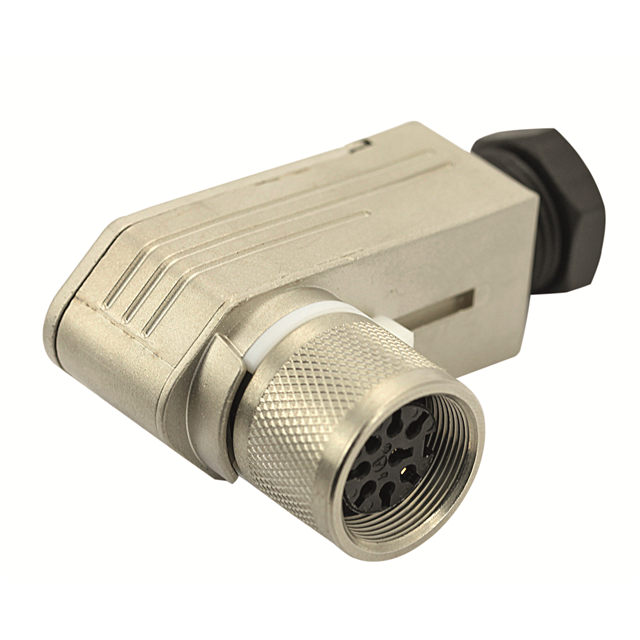

McGill Microwave Systems C091 11F003 001 2	Dust Tight Water Resistant Waterproof	IP65 IP67	UL94 V-0	Keyed	1.5 mm	Receptacle Housing	Shielded	For Female Sockets	Zinc Die Cast	Crimp	Threaded	Free Hanging (In-Line) Right Angle	Nickel	Thermoplastic	Silver	Circular	Backshell Cable Clamp Coupling Nut	3	Contacts Not Included	M16-3	100 °C	-40 °C
McGill Microwave Systems C091 11H012 000 2	Dust Tight Water Resistant Waterproof	IP65 IP67	UL94 V-0	Keyed	1 mm	Plug Housing	Shielded	For Male Pins	Zinc Die Cast	Crimp	Threaded	Free Hanging (In-Line)	Nickel		Silver		Backshell Cable Clamp Coupling Nut	12		M16-12
McGill Microwave Systems C091 11T012 000 2	Dust Tight Water Resistant Waterproof	IP65 IP67	UL94 V-0	Keyed	1 mm	Receptacle Housing	Shielded	For Female Sockets	Zinc Die Cast	Crimp	Threaded	Panel Mount	Nickel		Silver			12		M16-12			Flange
