ADG1414 Series

Catalog

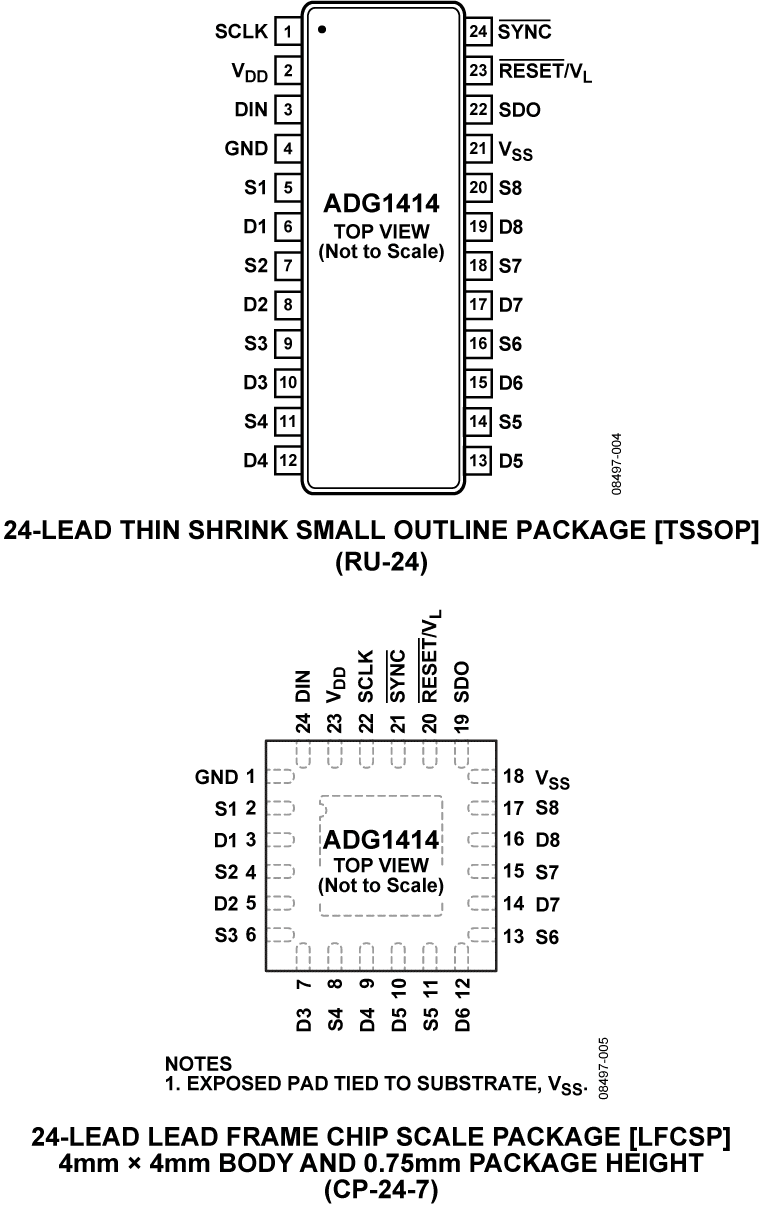

9.5 Ω RON±15 V/+12 V/±5 VICMOS SERIALLY-CONTROLLED OCTAL SPST SWITCHES

Part	-3db Bandwidth	On-State Resistance (Max)	Crosstalk	Channel-to-Channel Matching (ΔRon)	Demultiplexer Outputs	Multiplexer Inputs	Mounting Type	Package Width	Package Name	Package Length	Switch Time Toff (Max)	Switch Time Ton (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Supply, Single (V+)	Current - Leakage (Max)	Voltage - Supply, Dual (Minimum)	Voltage - Supply, Dual (Nominal)	Voltage - Supply, Dual (Maximum)	Channel Capacitance (CS(off))	Channel Capacitance (CD(off))	Package / Case	Number of Circuits	Charge Injection	Switch Circuit Type	Switch Contact
Analog Devices Inc./Maxim Integrated ADG1414BCPZ-REEL7	256 MHz	11.5 Ohms	-75 dB	550 mOhm	1	1	Surface Mount	4 mm	24-LFCSP	4 mm	35 ns	93 ns	125 °C	-40 °C	12 V	150 pA	-4.5 V	4.5 V	16.5 V	8 pF	8 pF	24-WFQFN Exposed Pad CSP	8	10 pC	SPST	NO
Analog Devices Inc./Maxim Integrated ADG1414BRUZ-REEL7	256 MHz	11.5 Ohms	-75 dB	550 mOhm	1	1	Surface Mount	4.4 mm	24-TSSOP	0.173 in	35 ns	93 ns	125 °C	-40 °C	12 V	150 pA	-4.5 V	4.5 V	16.5 V	8 pF	8 pF		8	10 pC	SPST	NO
Analog Devices Inc./Maxim Integrated ADG1414BRUZ	256 MHz	11.5 Ohms	-75 dB	550 mOhm	1	1	Surface Mount	4.4 mm	24-TSSOP	0.173 in	35 ns	93 ns	125 °C	-40 °C	12 V	150 pA	-4.5 V	4.5 V	16.5 V	8 pF	8 pF		8	10 pC	SPST	NO
