EHD-RD Series

Manufacturer: Panasonic Electronic Components

Catalog

DC DC CONVERTER -24V 4W

Part	Type	Current - Output (Max)	Efficiency	Voltage - Output 1	Voltage - Input (Min)	Number of Outputs	Package Leads	Package Name	Operating Temperature (Max)	Operating Temperature (Min)	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width	Voltage - Input (Max)	Applications	Power (Watts)	Mounting Type
Panasonic Electronic Components EHD-RD3363	Non-Isolated PoL Module	180 mA	84 %	-24 V	-113 V	1	5 Leads	10-SIP Module	85 °C	-20 °C	1.11 in	0.7 in	0.24 in	-200 V	ITE (Commercial)	4 W	Through Hole

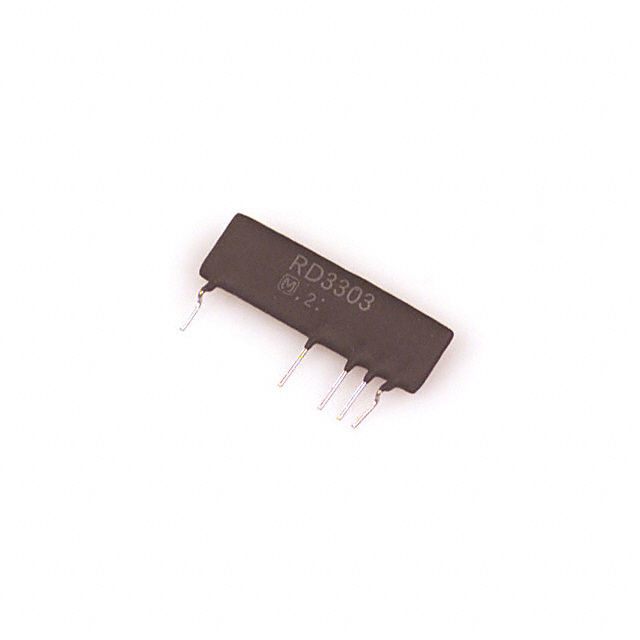

Panasonic Electronic Components EHD-RD3303	Non-Isolated PoL Module	100 mA	49 %	5.1 V	113 V	1	5 Leads	10-SIP Module	85 °C	-25 °C	1.2 in	0.49 in	0.24 in	170 V	ITE (Commercial)	1 W	Through Hole
Panasonic Electronic Components EHD-RD3471	Non-Isolated PoL Module	150 mA	80 %	-32 V	-113 V	1	5 Leads	10-SIP Module	80 °C	-25 °C	1.11 in	0.7 in	0.35 in	-170 V	ITE (Commercial)	5 W	Through Hole
Panasonic Electronic Components EHD-RD3362B	Non-Isolated PoL Module	200 mA	84 %	24.6 V	113 V	1	5 Leads	10-SIP Module	85 °C	-20 °C	1.11 in	0.7 in	0.24 in	170 V	ITE (Commercial)	5 W	Through Hole
Panasonic Electronic Components EHD-RD3353	Non-Isolated PoL Module	100 mA	75 %	20 V	113 V	1	9 Leads	10-SIP Module	85 °C	-25 °C	1.2 in	0.74 in	0.39 in	170 V	ITE (Commercial)	2 w	Through Hole

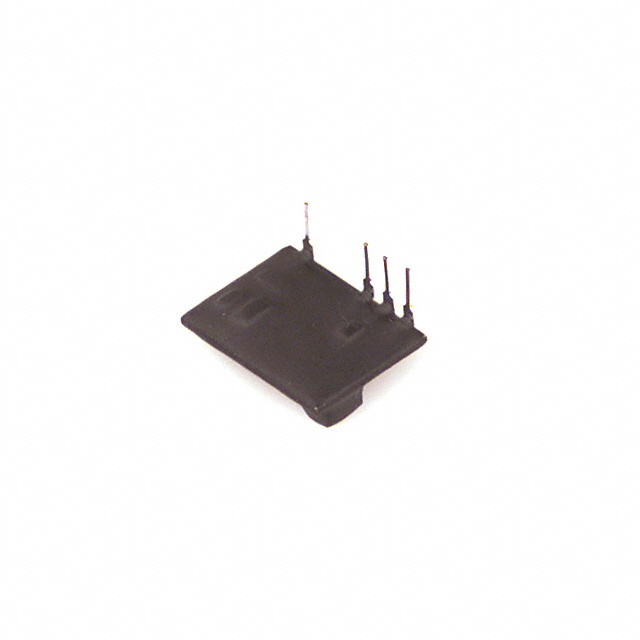

Panasonic Electronic Components EHD-RD3306	Non-Isolated PoL Module	30 mA	46 %	5.1 V	-113 V	1	4 Leads	6-SIP Module	85 °C	-25 °C	0.75 in	0.28 in	0.59 in	-170 V	ITE (Commercial)	1 W	Right Angle Through Hole
Panasonic Electronic Components EHD-RD3371	Non-Isolated PoL Module	400 mA	75 %	12 V	225 V	1	8 Leads	15-SIP Module	80 °C	-20 °C	2.24 in	0.96 in	0.28 in	338 V	ITE (Commercial)	5 W	Through Hole
