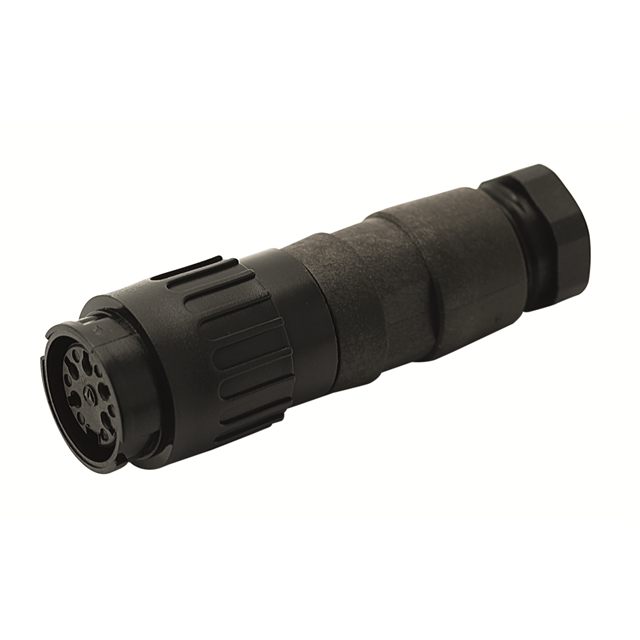

T 3528 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
FEMALE CABLE CONNECTOR WITH INTE
| Part | Contact Size | Type | Fastening Type | Number of Positions | Note | Ingress Protection | Insert Material | Material Flammability Rating | Features | Shell Size - Insert | Operating Temperature (Max) | Operating Temperature (Min) | Contact Type | Connector Type | Contact Shape | Shell Material | Housing Color | Shielding | Shell Finish | Orientation | Mounting Type | Contact Finish - Mating | Color | Voltage Rating | Cable Opening (Min) | Cable Opening (Max) | Applications | Current Rating | Termination | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
McGill Microwave Systems | 1.5 mm | For Female Sockets | Bayonet Lock | 8 | Contacts Not Included | IP40 | Thermoplastic | UL94 V-0 | Backshell Cable Clamp Coupling Nut | M16-8 | 100 °C | -40 °C | Crimp | Plug Housing | Circular | Die Cast | Black Silver | Shielded | Nickel | Keyed | Free Hanging (In-Line) | |||||||||
 McGill Microwave Systems | Bayonet Lock | 8 | IP40 | Thermoplastic | UL94 V-0 | Backshell Cable Clamp | M16-8 | 100 °C | -40 °C | Female Sockets Plug | Zinc Die Cast | Unshielded | Nickel | Keyed | Free Hanging (In-Line) | Gold | Black | 250 V | 0.236 in | 0.315 in | Industrial Instrumentation Marine Medical Testing Equipment & Measurement | 7 A | Solder Cup | Metal |
