TJ11 Series

Catalog

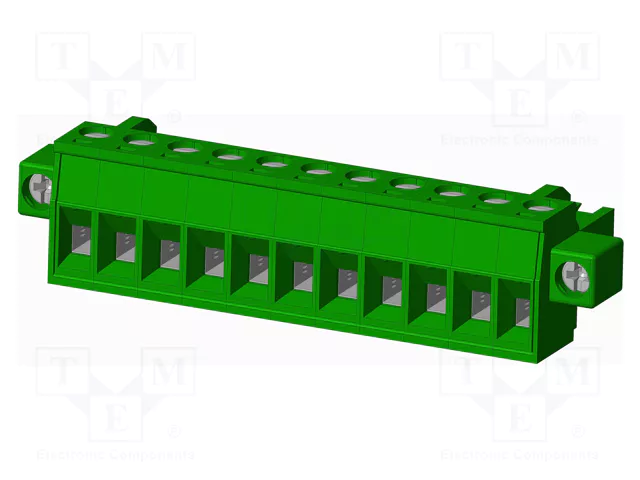

TERM BLOCK PLUG 11POS STR 5.08MM

Part	Type	Operating Temperature (Min)	Operating Temperature (Max)	Termination Style	Features	Number of Levels	Number of Positions	Voltage - UL	Mounting Type	Contact Mating Finish	Plug Wire Entry Angle	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Pitch	Color	Positions Per Level	Current - UL	Screw Size	Contact Material	Housing Material	Insulation Height	Material Flammability Rating	Torque - Screw	Wire Strip Length (Max)	Wire Strip Length (Min)	Wire Gauge or Range - mm²	Voltage - IEC	Current - IEC	Wire Gauge or Range - mm² (Maximum)	Wire Gauge or Range - mm² (Minimum)
McGill Microwave Systems TJ1151860000G	Female Sockets Plug	-40 °C	115 °C	Screw	Retention Latches (Non-Wire Side)	1	11	300 V	Free Hanging (In-Line)	Tin	180 °	24 AWG	12 AWG	5.08 mm	Gray	11	20 A	M3	Copper	Thermoplastic	0.594 in	UL94 V-0	0.56 Nm	8 mm	7 mm
McGill Microwave Systems TJ1131040000G	Female Sockets Plug	-40 °C	115 °C	Screw	Strain Relief	1	11	300 V	Free Hanging (In-Line)	Tin	180 °	28 AWG	16 AWG	0.15 in	Black	11	10 A	M2	Phosphor Bronze	Thermoplastic		UL94 V-0		7 mm	6 mm	1.5 mm²	300 V	10.5 A
McGill Microwave Systems TJ1111530000G	Female Sockets Plug	-40 °C	115 °C	Screw - Rising Cage Clamp		1	11	300 V	Free Hanging (In-Line)	Tin	180 °	25.5 AWG	16 AWG	0.138 in	Green	11	10 A	M2	Copper Alloy	Thermoplastic Resin	0.437 in	UL94 V-0	0.23 Nm	7 mm	6 mm				1.5 mm²	0.5 mm²
McGill Microwave Systems TJ1171570000G	Female Sockets Plug	-40 °C	115 °C	Screw	Mating Flange Retention Latches (Non-Wire Side)	1	11	300 V	Free Hanging (In-Line)	Tin	180 °	24 AWG	12 AWG	0.197 in	Green	11	20 A	M3	Copper	Thermoplastic	0.594 in	UL94 V-0	0.56 Nm	8 mm	7 mm
McGill Microwave Systems TJ1101520000G	Female Sockets Plug	-40 °C	115 °C	Screw	Mating Flange Retention Latches (Non-Wire Side)	1	11	300 V	Free Hanging (In-Line)	Tin	180 °	24 AWG	12 AWG	0.3 in	Green	11	20 A	M3	Phosphor Bronze	Thermoplastic	0.594 in	UL94 V-0	0.56 Nm	8 mm	7 mm
McGill Microwave Systems TJ1131820000G	Female Sockets Plug	-40 °C	115 °C	Screw	Mating Flange	1	11	300 V	Free Hanging (In-Line)	Tin	180 °	28 AWG	16 AWG	0.15 in	Gray	11	10 A	M2	Phosphor Bronze	Thermoplastic	0.437 in	UL94 V-0		7 mm	6 mm	1.5 mm²	300 V	10.5 A
McGill Microwave Systems TJ1101020000G	Female Sockets Plug	-40 °C	115 °C	Screw	Mating Flange Retention Latches (Non-Wire Side)	1	11	300 V	Free Hanging (In-Line)	Tin	180 °	24 AWG	12 AWG	0.3 in	Black	11	20 A	M3	Phosphor Bronze	Thermoplastic	0.594 in	UL94 V-0	0.56 Nm	8 mm	7 mm
McGill Microwave Systems TJ1131840000G	Female Sockets Plug	-40 °C	115 °C	Screw	Strain Relief	1	11	300 V	Free Hanging (In-Line)	Tin	180 °	28 AWG	16 AWG	0.15 in	Gray	11	10 A	M2	Phosphor Bronze	Thermoplastic		UL94 V-0		7 mm	6 mm	1.5 mm²	300 V	10.5 A
McGill Microwave Systems TJ1151870000G	Female Sockets Plug	-40 °C	115 °C	Screw	Mating Flange Retention Latches (Non-Wire Side)	1	11	300 V	Free Hanging (In-Line)	Tin	180 °	24 AWG	12 AWG	5.08 mm	Gray	11	20 A	M3	Copper	Thermoplastic	0.594 in	UL94 V-0	0.56 Nm	8 mm	7 mm
McGill Microwave Systems TJ1131530000G	Female Sockets Plug	-40 °C	115 °C	Screw - Rising Cage Clamp		1	11	300 V	Free Hanging (In-Line)	Tin	180 °	25.5 AWG	16 AWG	0.15 in	Green	11	10 A	M2	Copper Alloy	Thermoplastic Resin	0.437 in	UL94 V-0	0.23 Nm	7 mm	6 mm				1.5 mm²	0.5 mm²
