32060 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

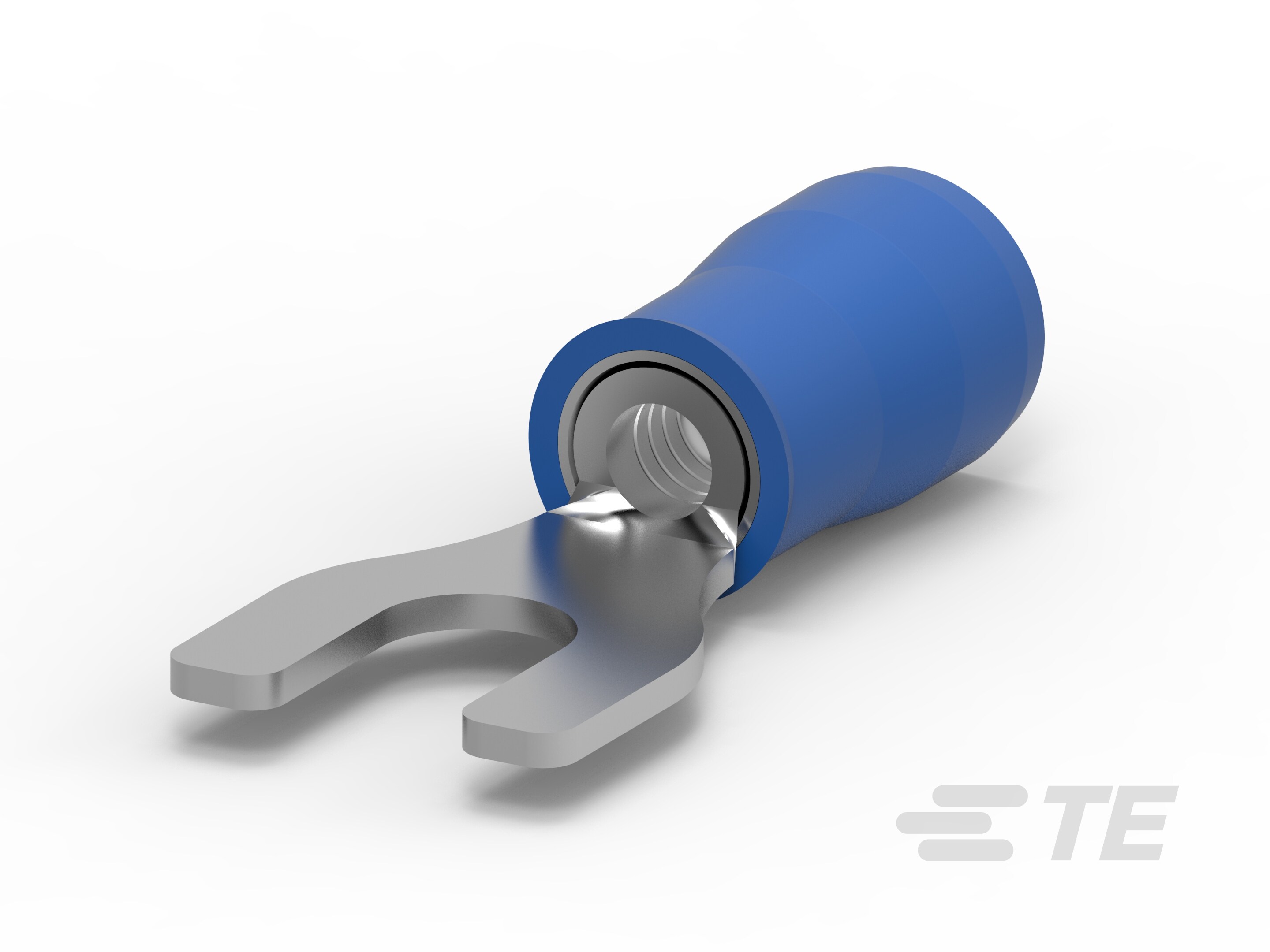

CONN SPADE TERM 14-16AWG #10 BLU
| Part | Color | Terminal Type | Width - Outer Edges | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) | Stud/Tab Size | Contact Material | Termination | Insulation | Features | Mounting Type | Contact Finish | Length - Overall | Tongue Inside Opening | Insulation Diameter (Max) | Insulation Diameter (Min) | Length - Ring Center to Termination | Material - Insulation | Length - Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Blue | Standard | 0.375 in | 16 AWG | 14 AWG | 10 Stud | Copper | Crimp | Insulated | Serrated Termination | Free Hanging (In-Line) | Tin | 0.908 in | 0.197 in | 0.17 in | 0.115 in | 0.312 in | Nylon PA Polyamide | 0.404 in |
