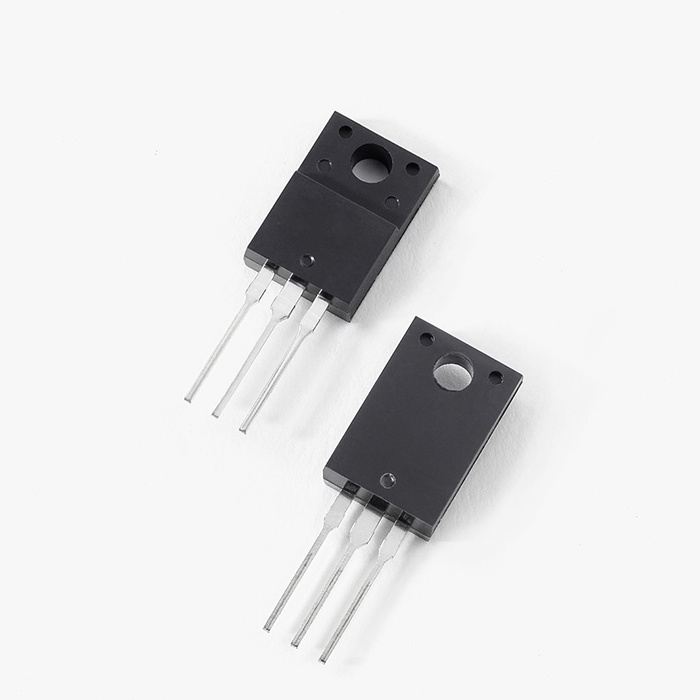

DURF1030CTR Series

300V 10A Ultrafast Rectifier DUR series

Catalog

300V 10A Ultrafast Rectifier DUR series

Part	Operating Temperature - Junction (Max)	Operating Temperature - Junction (Min)	Package Name	Current - Reverse Leakage	Voltage - DC Reverse (Vr) (Max)	Speed - Fast Recovery (Maximum)	Speed - Fast Recovery (Minimum)	Current - Average Rectified (Io) (per Diode)	Package / Case	Technology	Reverse Recovery Time (trr)	Voltage - Forward (Vf) (Max)	Diode Pair Count	Diode Configuration	Mounting Type
LITTELFUSE DURF1030CTR	150 °C	-55 °C	ITO-220AB	30 µA	300 V	500 ns	200 mA	5 A	Isolated Tab TO-220-3 Full Pack	Standard	45 ns	1.3 V	1 pair	Common Anode	Through Hole

Catalog

300V 10A Ultrafast Rectifier DUR series

Description

Littelfuse DURF1030CTR series Ultrafast Recovery Rectifier is designed to meet the general requirements of commercial applications by providing low Trr, high-temperature, low-leakage and low forward voltage drop products. It is suitable for output rectifier, free-wheeling or boost diode in high-frequency power switching application such as switch mode power supply and DC-DC converters.
