5093 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

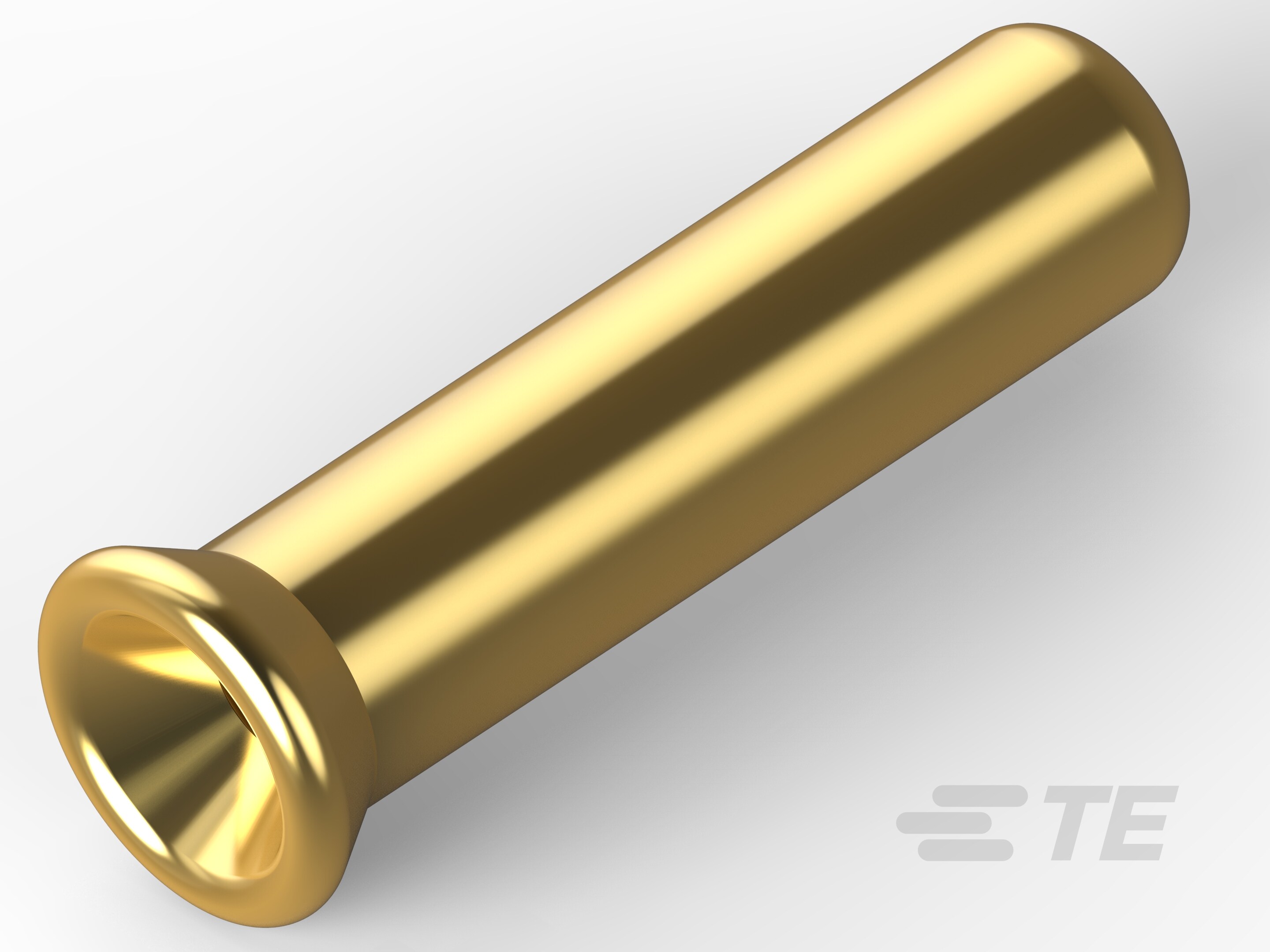

CONN PIN RCPT .013-.020 SOLDER
| Part | Operating Temperature (Min) | Operating Temperature (Max) | Features | Mounting Hole Diameter (Min) | Mounting Hole Diameter (Max) | Accepts Pin Diameter (Max) | Accepts Pin Diameter (Min) | Length - Overall | Contact Finish Thickness | Flange Diameter | Contact Finish | Contact Material | Socket Depth | Termination | Tail Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -65 °C | 126 °C | Closed Bottom | 0.04 in | 0.041 in | 0.02 in | 0.013 in | 0.168 in | 5 µin | 0.059 in | Gold | Beryllium Copper | 0.155 in | Solder | No Tail |
