XLR, AC Series

Catalog

XLR CONNECTORS 3 POLE XLR FEMALE CHASSIS MOUNT BTYPE NICKEL FINISH GOLD PLATE CONTACT HORIZ PCB

Part	Material Flammability Rating	Primary Material	Orientation	Mounting Type	Fastening Type	Operating Temperature (Min)	Operating Temperature (Max)	Termination	Shell Size - Insert	Connector Type	Features	Shielding	Number of Positions	Shell Material	Color	Mounting Feature	Contact Finish - Mating	Current Rating	Ingress Protection	Contact Finish Thickness - Mating	Contact Material	Insert Material	Applications	Shell Finish	Cable Opening (Min)	Cable Opening (Max)
McGill Microwave Systems AC3FBHL2-AU-PRE	UL94 V-0	Plastic	Keyed	Panel Mount Right Angle Through Hole	Latch Lock	-25 °C	75 °C	Solder	XLR	Female Sockets Receptacle	Board Guide Ground	Unshielded	3	Thermoplastic	Black Silver	Flange	Gold	6 A	IP40	1.97 µin	Bronze	Glass Filled Nylon 6/6 PA66 Polyamide	Audio
McGill Microwave Systems AC4F	UL94 V-0	Metal	Keyed	Free Hanging (In-Line)	Latch Lock	-25 °C	75 °C	Solder Cup	XLR	Female Sockets Plug	Backshell Cable Clamp	Unshielded	4	Zinc Die Cast	Silver		Tin	10 A	IP40					Nickel	0.118 in	0.256 in
McGill Microwave Systems AC5M	UL94 V-0	Metal	Keyed	Free Hanging (In-Line)	Latch Holder	-25 °C	75 °C	Solder Cup	XLR	Male Pins Receptacle	Backshell Cable Clamp	Unshielded	5	Zinc Die Cast	Silver		Silver	7.5 A	IP40					Nickel	0.118 in	0.256 in
McGill Microwave Systems AC3FBVL1-AU-PRE
McGill Microwave Systems AC5FAV-AU-B	UL94 V-0	Plastic	Keyed	Panel Mount Through Hole	Latch Lock	-25 °C	75 °C	Solder	XLR	Female Sockets Plug		Unshielded	5	Thermoplastic	Black	Flange	Gold	3 A	IP40
McGill Microwave Systems AC5MJ		Metal	Keyed	Free Hanging (In-Line)	Latch Holder	-25 °C	75 °C	Solder Cup	XLR	Male Pins Receptacle	Backshell Cable Clamp		5	Zinc Die Cast	Silver		Silver		IP40					Nickel
McGill Microwave Systems AC5MAV-AU-B

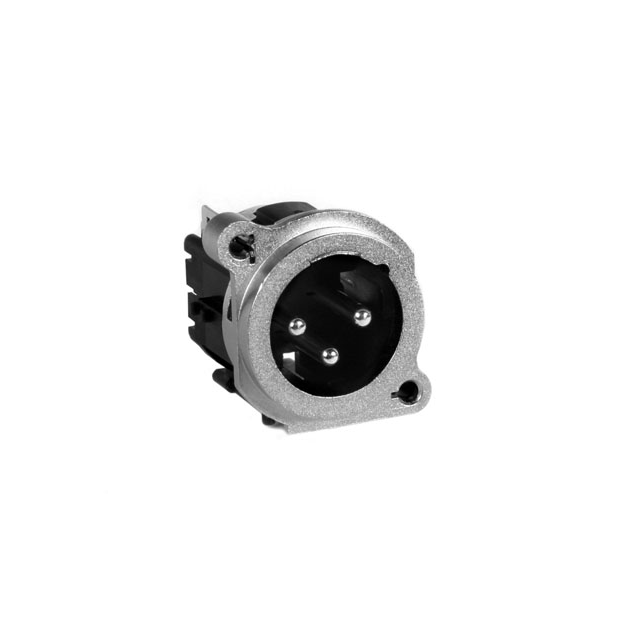

McGill Microwave Systems AC3MBV-AU-PRE	UL94 V-0	Plastic	Keyed	Panel Mount Through Hole	Latch Lock	-25 °C	75 °C	Solder	XLR	Male Pins Receptacle	Board Guide	Unshielded	3	Thermoplastic	Black Silver	Flange	Gold	6 A	IP40	1.97 µin	Brass	Glass Filled Nylon 6/6 PA66 Polyamide	Audio
McGill Microwave Systems AC3FAVL2-AU-PRE
McGill Microwave Systems AC3FAHL-AU-PRE	UL94 V-0	Plastic	Keyed	Panel Mount Right Angle Through Hole	Push-Pull	-25 °C	75 °C	Solder	XLR	Female Sockets Plug	Board Guide	Unshielded	3	Thermoplastic	Black	Flange	Gold	6 A	IP40
