APH-NP Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
CONN ADAPT N PLUG TO TNC JACK
| Part | Operating Temperature (Min) | Operating Temperature (Max) | Mating Cycles | Center Contact Material | Body Finish | Body Material | Dielectric Material | Style | Adapter Type | Center Gender | Mounting Type | Frequency - Max | Adapter Series | Conversion Type | Convert To (Adapter End) | Center Contact Plating | Fastening Type | Convert From (Adapter End) | Impedance | Convert To (Adapter End) Type | Convert To (Adapter End) Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | -65 °C | 165 °C | 500 cycles | Phosphor Bronze | Nickel | Brass | Polytetrafluoroethylene (PTFE) | Straight | Plug to Jack | Female Male | Free Hanging (In-Line) | 11 GHz | N to TNC | Between Series | Female Socket TNC Jack | Gold | Threaded | Male Pin N Plug | 50 Ohm | ||

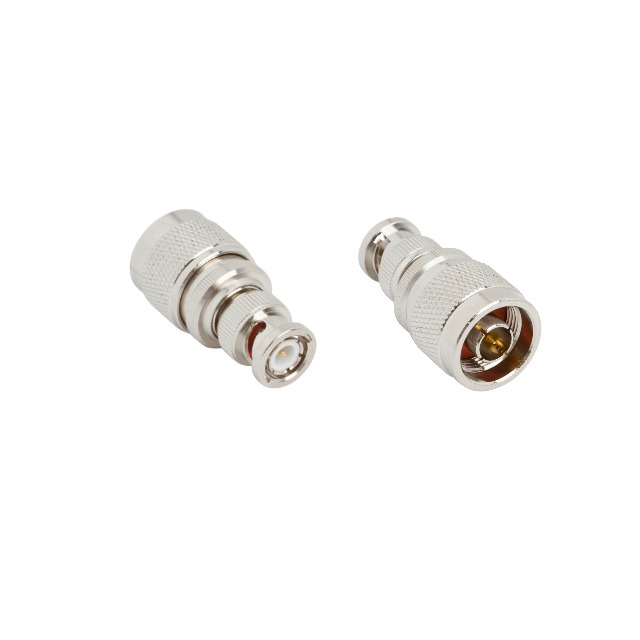

 McGill Microwave Systems | -55 °C | 165 °C | Brass | Nickel | Brass | Polytetrafluoroethylene (PTFE) | Straight | Plug to Plug | Male | Free Hanging (In-Line) | 4 GHz | BNC to N | Between Series | Gold | Bayonet Lock Threaded | BNC Plug Male Pin | 50 Ohm | N Plug | Male Pin | ||
McGill Microwave Systems | -65 °C | 165 °C | Brass | Nickel | Brass | Polytetrafluoroethylene (PTFE) | Straight | Plug to Plug | Male | Free Hanging (In-Line) | 11 GHz | N to TNC | Between Series | Gold | Threaded | Male Pin N Plug | 50 Ohm | TNC Plug | Male Pin | ||
McGill Microwave Systems | -65 °C | 165 °C | Brass | Nickel | Brass | Polytetrafluoroethylene (PTFE) | Straight | Plug to Jack | Female Male | Free Hanging (In-Line) | 300 MHz | N to UHF | Between Series | Gold | Threaded | Male Pin N Plug | 50 Ohm | UHF Jack | Female Socket | ||
 McGill Microwave Systems | -65 °C | 165 °C | Phosphor Bronze | Nickel | Brass | Polytetrafluoroethylene (PTFE) | Straight | Plug to Jack | Female Male | Free Hanging (In-Line) | 4 GHz | BNC to N | Between Series | Gold | Bayonet Lock Threaded | BNC Jack Female Socket | 50 Ohm | N Plug | Male Pin | ||
 McGill Microwave Systems | -65 °C | 165 °C | 500 cycles | Beryllium Copper | Stainless Steel | Polytetrafluoroethylene (PTFE) | Straight | Plug to Jack | Female Male | Free Hanging (In-Line) | 4 GHz | BNC HD to N | Between Series | Gold | Bayonet Lock Threaded | Male Pin N Plug | 75 Ohm | BNC HD Jack | Female Socket |
