3052 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

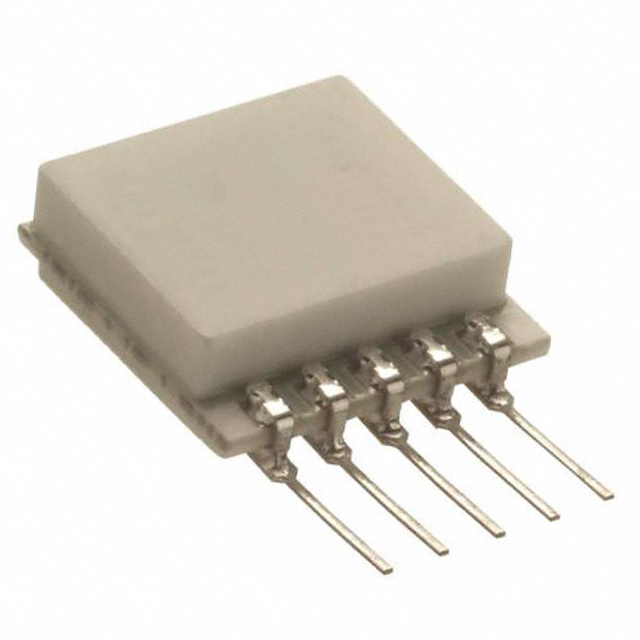

ACCELEROMETER 10G ANALOG
| Part | Axis | Operating Temperature (Max) | Operating Temperature (Min) | Type | Output Type | Package / Case | Bandwidth | Voltage - Supply | Mounting Type | Sensitivity (mV/g) | Acceleration Range (Minimum) | Acceleration Range (Maximum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | X | 125 °C | -40 °C | Analog | Analog Voltage | 5-SIP Module | 400 Hz | 5 VDC | Through Hole | 1.5 mV/g | -10 g | 10 g |
TE Connectivity AMP Connectors | X | 125 °C | -40 °C | Analog | Analog Voltage | 5-SIP Module | 1.5 kHz | 5 VDC | Through Hole | 0.15 mV/g | -100 g | 100 g |
 TE Connectivity AMP Connectors | ||||||||||||
TE Connectivity AMP Connectors | X | 125 °C | -40 °C | Analog | Analog Voltage | 5-SIP Module | 250 Hz | 5 VDC | Through Hole | 7 mV/g | -2 g | 2 g |
TE Connectivity AMP Connectors | X | 125 °C | -40 °C | Analog | Analog Voltage | 5-SIP Module | 600 Hz | 5 VDC | Through Hole | 0.75 mV/g | -20 g | 20 g |
