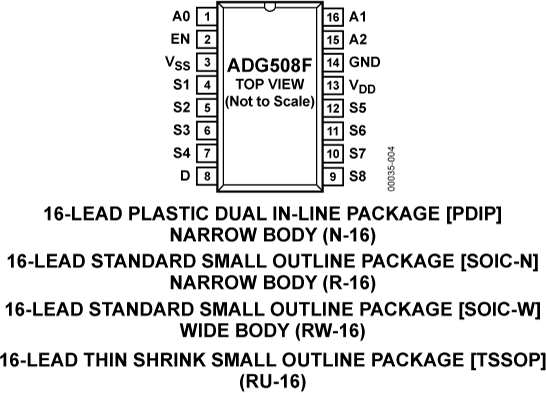

ADG508F Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

MULTIPLEXER, CMOS ANALOG, 8:1, 1 CIRCUIT, 13.5 TO 16.5 V, -40 TO 85 DEG C, WSOIC-16

Part	Channel Capacitance (CS(off))	Channel Capacitance (CD(off))	Package Name	Current - Leakage (Max)	Package Length	Package Width	Charge Injection	Voltage - Supply, Dual (Maximum)	Voltage - Supply, Dual (Minimum)	Voltage - Supply, Single (V+)	Multiplexer Inputs	Demultiplexer Outputs	Switch Time Ton (Max)	Switch Time Toff (Max)	Channel-to-Channel Matching (ΔRon)	Operating Temperature (Max)	Operating Temperature (Min)	On-State Resistance (Typ)	Mounting Type	Number of Circuits
Analog Devices Inc./Maxim Integrated ADG508FBRWZ-REEL	3 pF	22 pF	16-SOIC	1 nA	0.295 in	7.5 mm	15 pC	15 V	-15 V	15 V	8	1	230 ns	130 ns	8.1 Ohm	85 °C	-40 °C	270 Ohm	Surface Mount	1
Analog Devices Inc./Maxim Integrated ADG508FBRUZ	3 pF	22 pF	16-TSSOP	1 nA	0.173 in	4.4 mm	15 pC	15 V	-15 V	15 V	8	1	230 ns	130 ns	8.1 Ohm	85 °C	-40 °C	270 Ohm	Surface Mount	1
Analog Devices Inc./Maxim Integrated ADG508FBRNZ-REEL7	3 pF	22 pF	16-SOIC	1 nA	0.154 in	3.9 mm	15 pC	15 V	-15 V	15 V	8	1	230 ns	130 ns	8.1 Ohm	85 °C	-40 °C	270 Ohm	Surface Mount	1
Analog Devices Inc./Maxim Integrated ADG508FBNZ	3 pF	22 pF	16-DIP 16-PDIP	1 nA	0.3 in	7.62 mm	15 pC	15 V	-15 V	15 V	8	1	230 ns	130 ns	8.1 Ohm	85 °C	-40 °C	270 Ohm	Through Hole	1
Analog Devices Inc./Maxim Integrated ADG508FBRNZ	3 pF	22 pF	16-SOIC	1 nA	0.154 in	3.9 mm	15 pC	15 V	-15 V	15 V	8	1	230 ns	130 ns	8.1 Ohm	85 °C	-40 °C	270 Ohm	Surface Mount	1
Analog Devices Inc./Maxim Integrated ADG508FBRWZ	3 pF	22 pF	16-SOIC	1 nA	0.295 in	7.5 mm	15 pC	15 V	-15 V	15 V	8	1	230 ns	130 ns	8.1 Ohm	85 °C	-40 °C	270 Ohm	Surface Mount	1
Analog Devices Inc./Maxim Integrated ADG508FBRUZ-REEL7	3 pF	22 pF	16-TSSOP	1 nA	0.173 in	4.4 mm	15 pC	15 V	-15 V	15 V	8	1	230 ns	130 ns	8.1 Ohm	85 °C	-40 °C	270 Ohm	Surface Mount	1
