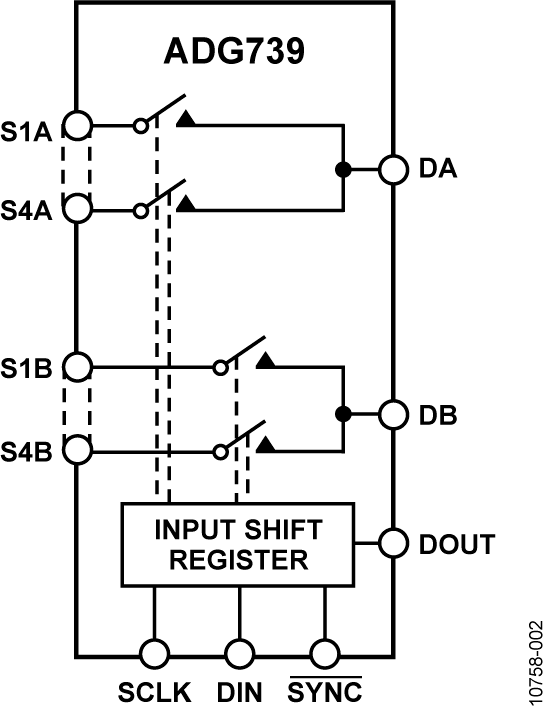

ADG739 Series

Catalog

IC SWITCH SP4TX2 4.5OHM 16TSSOP

Part	Voltage - Supply, Single (V+) (Maximum)	Voltage - Supply, Single (V+) (Minimum)	Switch Circuit Type	Package Name	Package Length	Package Width	Crosstalk	Switch Time Ton (Max)	Switch Time Toff (Typ)	Current - Leakage (Max)	Number of Circuits	Mounting Type	On-State Resistance (Max)	-3db Bandwidth	Operating Temperature (Max)	Operating Temperature (Min)	Charge Injection	Channel Capacitance (CD(off))	Channel Capacitance (CS(off))	Demultiplexer Outputs	Multiplexer Inputs
Analog Devices Inc./Maxim Integrated ADG739BRUZ-REEL	5.5 V	2.7 V	SP4T	16-TSSOP	0.173 in	4.4 mm	-75 dB	20 ns	10 ns	100 pA	2	Surface Mount	4.5 Ohm	100 MHz	85 °C	-40 °C	3 pC	42 pF	13 pF	1	4
Analog Devices Inc./Maxim Integrated ADG739BRUZ	5.5 V	2.7 V	SP4T	16-TSSOP	0.173 in	4.4 mm	-75 dB	20 ns	10 ns	100 pA	2	Surface Mount	4.5 Ohm	100 MHz	85 °C	-40 °C	3 pC	42 pF	13 pF	1	4
Analog Devices Inc./Maxim Integrated ADG739BRU-REEL	5.5 V	2.7 V	SP4T	16-TSSOP	0.173 in	4.4 mm	-75 dB	20 ns	10 ns	100 pA	2	Surface Mount	4.5 Ohm	100 MHz	85 °C	-40 °C	3 pC	42 pF	13 pF	1	4
Analog Devices Inc./Maxim Integrated ADG739BRU	5.5 V	2.7 V	SP4T	16-TSSOP	0.173 in	4.4 mm	-75 dB	20 ns	10 ns	100 pA	2	Surface Mount	4.5 Ohm	100 MHz	85 °C	-40 °C	3 pC	42 pF	13 pF	1	4
Analog Devices Inc./Maxim Integrated ADG739BRUZ-REEL7	5.5 V	2.7 V	SP4T	16-TSSOP	0.173 in	4.4 mm	-75 dB	20 ns	10 ns	100 pA	2	Surface Mount	4.5 Ohm	100 MHz	85 °C	-40 °C	3 pC	42 pF	13 pF	1	4
