Q-0D01J0 Series

Catalog

CBL ASSY BNC-MMCX PLUG-JACK 6"

Part	Features	1st Connector Mounting Type	Frequency - Max	2nd Connector	Overall Impedance	2nd Contact Gender	Style	Length	Color	2nd Connector Mounting Type	1st Contact Gender	Cable Type	1st Connector	Length (ft)

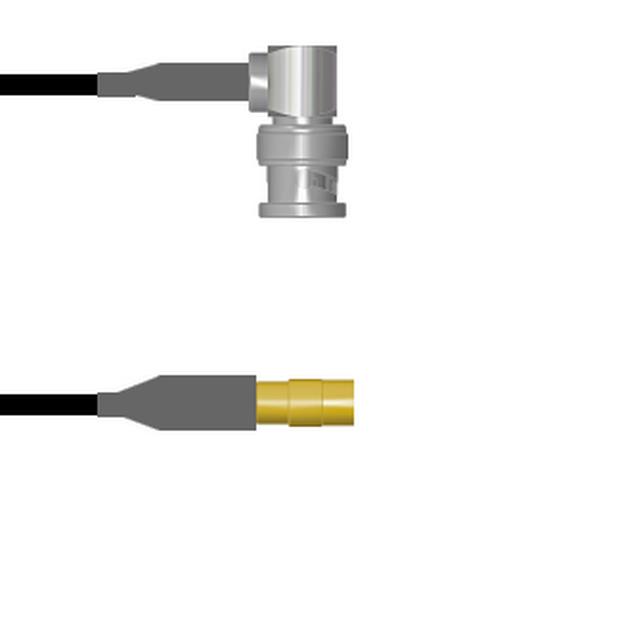

McGill Microwave Systems Q-0D01J0003006i	Shielded	Free Hanging (In-Line)	4 GHz	MMCX Jack	50 Ohms	Female	BNC MMCX	0.5 ft	Black	Free Hanging (In-Line)	Male	174 RG	BNC Plug Right Angle
McGill Microwave Systems Q-0D01J0003.25M	Shielded	Free Hanging (In-Line)	4 GHz	MMCX Jack	50 Ohms	Female	BNC MMCX	9.843 in	Black	Free Hanging (In-Line)	Male	174 RG	BNC Plug Right Angle

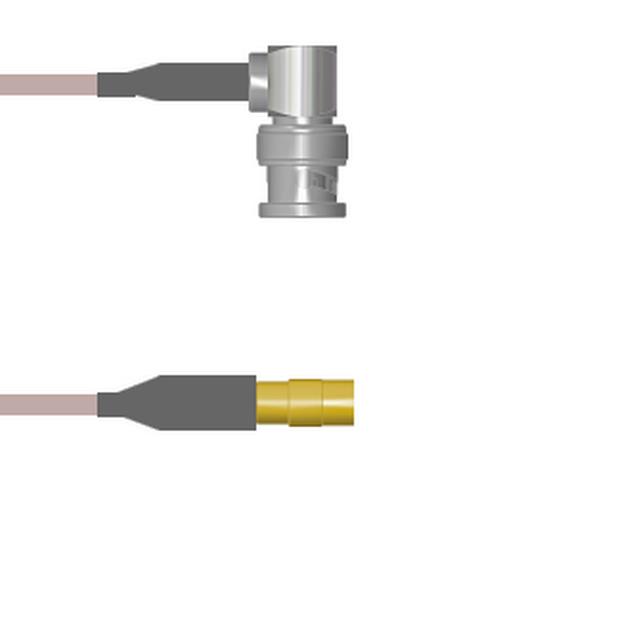

McGill Microwave Systems Q-0D01J00050.5M	Shielded	Free Hanging (In-Line)	4 GHz	MMCX Jack	50 Ohms	Female	BNC MMCX	19.69 in	Copper	Free Hanging (In-Line)	Male	316 RG	BNC Plug Right Angle
McGill Microwave Systems Q-0D01J0003084i	Shielded	Free Hanging (In-Line)	4 GHz	MMCX Jack	50 Ohms	Female	BNC MMCX	84 in	Black	Free Hanging (In-Line)	Male	174 RG	BNC Plug Right Angle	7 ft
McGill Microwave Systems Q-0D01J0003.75M	Shielded	Free Hanging (In-Line)	4 GHz	MMCX Jack	50 Ohms	Female	BNC MMCX	29.53 in	Black	Free Hanging (In-Line)	Male	174 RG	BNC Plug Right Angle
McGill Microwave Systems Q-0D01J0003024i	Shielded	Free Hanging (In-Line)	4 GHz	MMCX Jack	50 Ohms	Female	BNC MMCX	24 in	Black	Free Hanging (In-Line)	Male	174 RG	BNC Plug Right Angle
McGill Microwave Systems Q-0D01J00051.5M	Shielded	Free Hanging (In-Line)	4 GHz	MMCX Jack	50 Ohms	Female	BNC MMCX	59.1 in	Copper	Free Hanging (In-Line)	Male	316 RG	BNC Plug Right Angle	4.9 ft
McGill Microwave Systems Q-0D01J0003036i	Shielded	Free Hanging (In-Line)	4 GHz	MMCX Jack	50 Ohms	Female	BNC MMCX	36 in	Black	Free Hanging (In-Line)	Male	174 RG	BNC Plug Right Angle
McGill Microwave Systems Q-0D01J0003001M	Shielded	Free Hanging (In-Line)	4 GHz	MMCX Jack	50 Ohms	Female	BNC MMCX	39.4 in	Black	Free Hanging (In-Line)	Male	174 RG	BNC Plug Right Angle
McGill Microwave Systems Q-0D01J0003072i	Shielded	Free Hanging (In-Line)	4 GHz	MMCX Jack	50 Ohms	Female	BNC MMCX	72 in	Black	Free Hanging (In-Line)	Male	174 RG	BNC Plug Right Angle
