V720 Series

Catalog

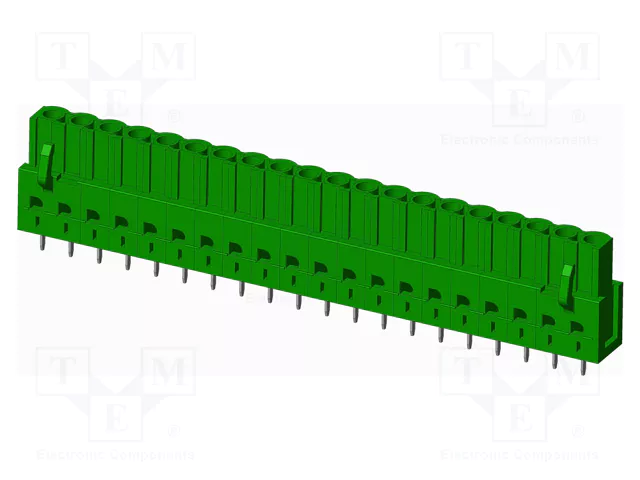

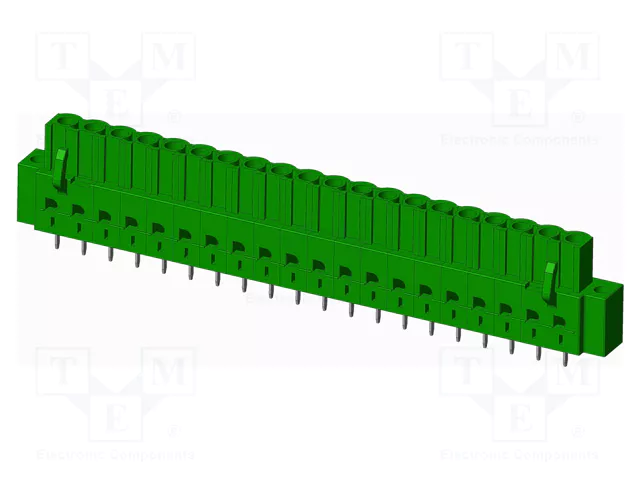

CONNECTOR: PLUGGABLE TERMINAL BLOCK; SOCKET; FEMALE; 8A; 300V

Part	Operating Temperature (Min)	Operating Temperature (Max)	Color	Contact Mating Finish	Termination Style	Number of Levels	Mounting Type	Features	Type	Voltage - UL	Header Orientation Angle	Header Orientation	Positions Per Level	Current - UL	Pitch	Number of Positions	Contact Tail Length	Insulation Height	Contact Material	Material Flammability Rating	Housing Material
McGill Microwave Systems V72032510000G	-40 °C	115 °C	Green	Tin	Solder	1	Through Hole	Mating Flange	Female Sockets Header	300 V	90 °	Right Angle	20	8 A	0.15 in	20	0.134 in	0.268 in	Phosphor Bronze	UL94 V-0	Thermoplastic
McGill Microwave Systems V72012510000G	-40 °C	115 °C	Green	Tin	Solder	1	Through Hole	Mating Flange	Female Sockets Header	300 V	90 °	Right Angle	20	4 A	0.138 in	20	0.134 in	0.268 in	Phosphor Bronze	UL94 V-0	Thermoplastic
McGill Microwave Systems V72051510000G	-40 °C	115 °C	Green	Tin	Solder	1	Through Hole	Retention Latches	Female Sockets Header	300 V	90 °	Right Angle	20	20 A	5.08 mm	20	0.138 in		Copper	UL94 V-0	Thermoplastic
McGill Microwave Systems V72071500000G	-40 °C	115 °C	Green	Tin	Solder	1	Through Hole	Retention Latches	Female Sockets Header	300 V		Vertical	20	10 A	0.197 in	20	0.138 in	0.748 in	Phosphor Bronze	UL94 V-0	Thermoplastic
McGill Microwave Systems V72072510000G	-40 °C	115 °C	Green	Tin	Solder	1	Through Hole	Mating Flange Retention Latches	Female Sockets Header	300 V	90 °	Right Angle	20	10 A	0.197 in	20	0.138 in	0.425 in	Phosphor Bronze	UL94 V-0	Thermoplastic
McGill Microwave Systems V72051500000G	-40 °C	115 °C	Green	Tin	Solder	1	Through Hole	Retention Latches	Female Sockets Header	300 V		Vertical	20	20 A	5.08 mm	20	0.138 in	0.748 in	Copper	UL94 V-0	Thermoplastic
McGill Microwave Systems V72071510000G	-40 °C	115 °C	Green	Tin	Solder	1	Through Hole	Retention Latches	Female Sockets Header	300 V	90 °	Right Angle	20	10 A	0.197 in	20	0.138 in		Phosphor Bronze	UL94 V-0	Thermoplastic
McGill Microwave Systems V72032500000G	-40 °C	115 °C	Green	Tin	Solder	1	Through Hole	Mating Flange	Female Sockets Header	300 V		Vertical	20	8 A	0.15 in	20	0.134 in	0.571 in	Phosphor Bronze	UL94 V-0	Thermoplastic
McGill Microwave Systems V72072500000G	-40 °C	115 °C	Green	Tin	Solder	1	Through Hole	Mating Flange Retention Latches	Female Sockets Header	300 V		Vertical	20	10 A	0.197 in	20	0.138 in	0.748 in	Phosphor Bronze	UL94 V-0	Thermoplastic
