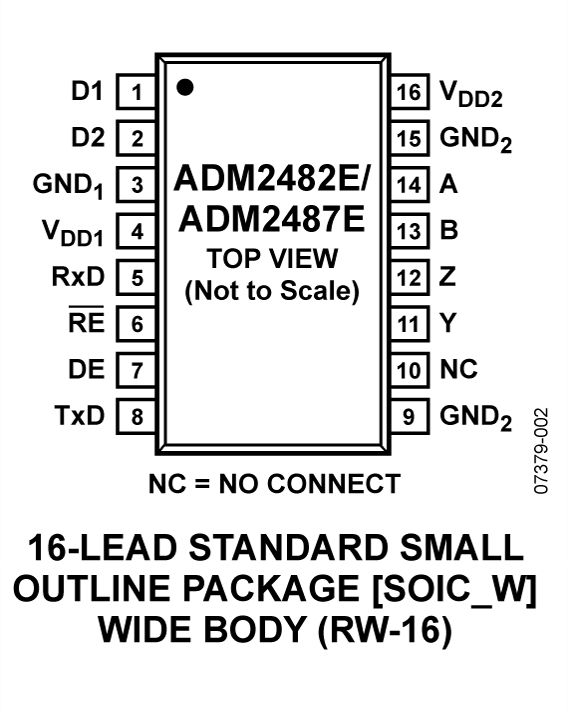

ADM2487E Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
2.5 KV SIGNAL ISOLATED, ESD PROTECTED, FULL/HALF DUPLEX RS-485 TRANSCEIVER W/ TRANSFORMER DRIVER (500 KBPS)
| Part | Data Rate | Voltage - Supply | Voltage - Supply | Operating Temperature (Min) | Operating Temperature (Max) | Number of Channels | Type | Package Length | Package Name | Package Width | Isolated Power | Inputs - Side 1 | Inputs - Side 2 | Common Mode Transient Immunity (Min) | Mounting Type | Technology | Rise / Fall Time (Typ) | Rise / Fall Time (Max) | Voltage - Isolation | Channel Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | 500 kbps | 3.3 V 5 VDC | 3.3V 5V | -40 °C | 85 °C | 3 | RS422 RS485 | 0.295 in | 16-SOIC | 7.5 mm | No | 2 | 1 | 25 kV/µs | Surface Mount | Magnetic Coupling | 1.1 µs | 1.1 µs | 2500 Vrms | Unidirectional |
Analog Devices Inc./Maxim Integrated | 500 kbps | 3.3 V 5 VDC | 3.3V 5V | -40 °C | 85 °C | 3 | RS422 RS485 | 0.295 in | 16-SOIC | 7.5 mm | No | 2 | 1 | 25 kV/µs | Surface Mount | Magnetic Coupling | 1.1 µs | 1.1 µs | 2500 Vrms | Unidirectional |
