78M6612 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

IC POWER MEASUREMENT AC 64-LQFP

Part	Measurement Error	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Mounting Type	Package / Case	Voltage - I/O Low	Package Length	Package Name	Package Width	Meter Type	Voltage - I/O High	Operating Temperature (Min)	Operating Temperature (Max)	Input Impedance (Min)	Input Impedance (Max)	Supplied Contents	Contents	Type	Utilized IC / Part	Function
Analog Devices Inc./Maxim Integrated 78M6612-IGTR/F	0.5 %	3.6 V	3 V	Surface Mount	64-LQFP	0.8 V	10 mm	64-LQFP	10 mm	Single Phase	2 V	-40 °C	85 °C	40 kOhm	90 kOhm
Analog Devices Inc./Maxim Integrated 78M6612-SOCKET64																Board(s)	Board	Power Management	78M6612	Energy Power Meter
Analog Devices Inc./Maxim Integrated 78M6612-DB/OMU-USB																Board(s) Cable(s)	Board Cable	Power Management	78M6612	Energy Power Meter
Analog Devices Inc./Maxim Integrated 78M6612-IMR/F	0.5 %	3.6 V	3 V	Surface Mount	68-VFQFN Exposed Pad	0.8 V	8 mm	68-SQFN	8 mm	Single Phase	2 V	-40 °C	85 °C	40 kOhm	90 kOhm
Analog Devices Inc./Maxim Integrated 78M6612-IM/F	0.5 %	3.6 V	3 V	Surface Mount	68-VFQFN Exposed Pad	0.8 V	8 mm	68-SQFN	8 mm	Single Phase	2 V	-40 °C	85 °C	40 kOhm	90 kOhm
Analog Devices Inc./Maxim Integrated 78M6612-SOCKET68																Board(s)	Board	Power Management	78M6612	Energy Power Meter
Analog Devices Inc./Maxim Integrated 78M6612-GT/F/P2	0.5 %	3.6 V	3 V	Surface Mount	64-LQFP	0.8 V	10 mm	64-LQFP	10 mm	Single Phase	2 V	-40 °C	85 °C	40 kOhm	90 kOhm
Analog Devices Inc./Maxim Integrated 78M6612-IGT/F	0.5 %	3.6 V	3 V	Surface Mount	64-LQFP	0.8 V	10 mm	64-LQFP	10 mm	Single Phase	2 V	-40 °C	85 °C	40 kOhm	90 kOhm
Analog Devices Inc./Maxim Integrated 78M6612-MR/F/P2	0.5 %	3.6 V	3 V	Surface Mount	68-VFQFN Exposed Pad	0.8 V	8 mm	68-SQFN	8 mm	Single Phase	2 V	-40 °C	85 °C	40 kOhm	90 kOhm

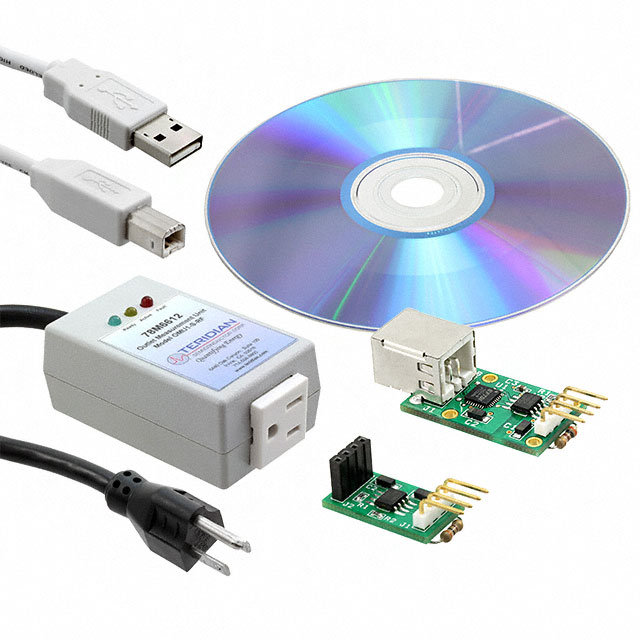

Analog Devices Inc./Maxim Integrated 78M6612-DB/OMU-RF																Board(s) Cable(s)	Board Cable	Power Management	78M6612	Energy Power Meter
