SJS83 Series

Catalog

CONN PLUG HSG FMALE 8POS INLINE

Part	Orientation	Number of Positions	Housing Color	Ingress Protection Description	Ingress Protection IP Rating	Type	Fastening Type	Material Flammability Rating	Shell Size - Insert	Shell Size - Insert	Connector Type	Shielding	Features	Mounting Type	Contact Size Options	Shell Material	Contact Type	Contact Shape	Note	Operating Temperature (Max)	Operating Temperature (Min)	Ingress Protection	Termination	Contact Finish - Mating	Primary Material	Mounting Feature	Current Rating
McGill Microwave Systems SJS830101	B	8	Green	Dust Tight Waterproof	IP67	For Female Sockets	Bayonet Lock	UL94 V-0	7	7	Plug Housing	Unshielded	Coupling Nut	Free Hanging (In-Line)	22D	Nylon 6/6 Polyamide (PA66)	Crimp	Circular	Contacts Not Included	125 °C	-65 °C

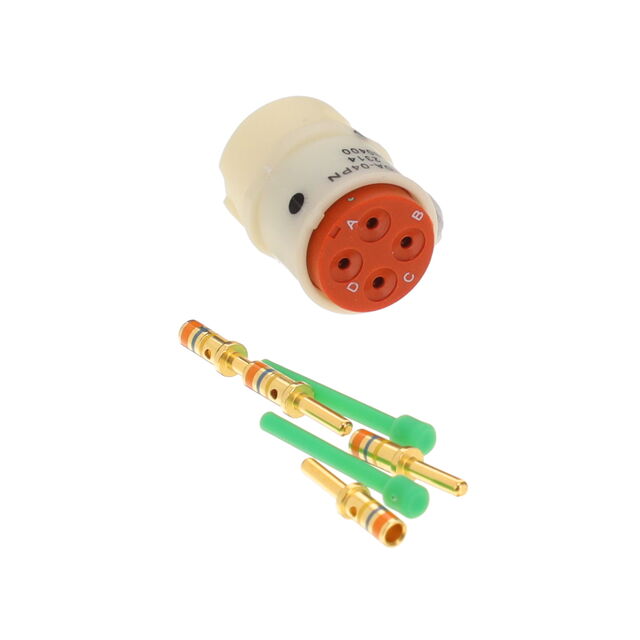

McGill Microwave Systems SJS830401		4					Bayonet Lock		8	8	Male Pins Receptacle		Dust Cap	Free Hanging (In-Line)		Nylon 6/6 Polyamide (PA66)				155 °C	-65 °C	Environment Sealed	Crimp	Gold	Plastic

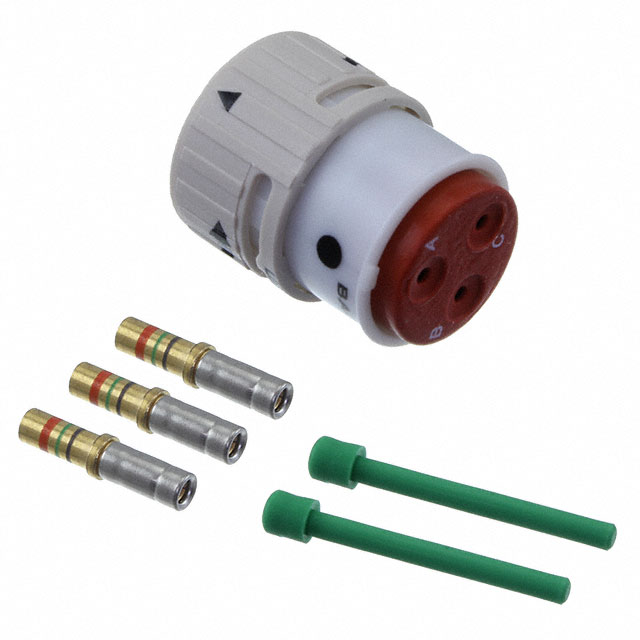

McGill Microwave Systems SJS830311		3					Bayonet Lock		8	8	Female Sockets Plug		Dust Cap	Free Hanging (In-Line)		Nylon 6/6 Polyamide (PA66)				125 °C	-65 °C	Environment Sealed	Crimp	Gold	Plastic
McGill Microwave Systems SJS830270		2	Black	Dust Tight Waterproof	IP67	For Male Pins	Bayonet Lock	UL94 V-0	5	5	Receptacle Housing	Unshielded		Free Hanging (In-Line)	22D	Nylon 6/6 Polyamide (PA66)	Crimp	Circular	Contacts Not Included	125 °C	-65 °C
McGill Microwave Systems SJS830220	A	8	Black	Dust Tight Waterproof	IP67	For Male Pins	Bayonet Lock	UL94 V-0	7	7	Receptacle Housing	Unshielded		Panel Mount	22D	Nylon 6/6 Polyamide (PA66)	Crimp	Circular	Contacts Not Included	125 °C	-65 °C					Flange
McGill Microwave Systems SJS830231		3					Bayonet Lock		5	5	Male Pins Receptacle			Free Hanging (In-Line)		Nylon 6/6 Polyamide (PA66)				125 °C	-65 °C	Environment Sealed	Crimp	Gold	Plastic
McGill Microwave Systems SJS830251		2					Bayonet Lock		5	5	Female Sockets Plug			Free Hanging (In-Line)		Nylon 6/6 Polyamide (PA66)				125 °C	-65 °C	Environment Sealed	Crimp	Gold	Plastic		5 A
McGill Microwave Systems SJS831100	A	8					Bayonet Lock		7	7	Female Sockets Plug			Free Hanging (In-Line)		Nylon 6/6 Polyamide (PA66)				125 °C	-65 °C	Environment Sealed	Crimp	Gold	Plastic		5 A

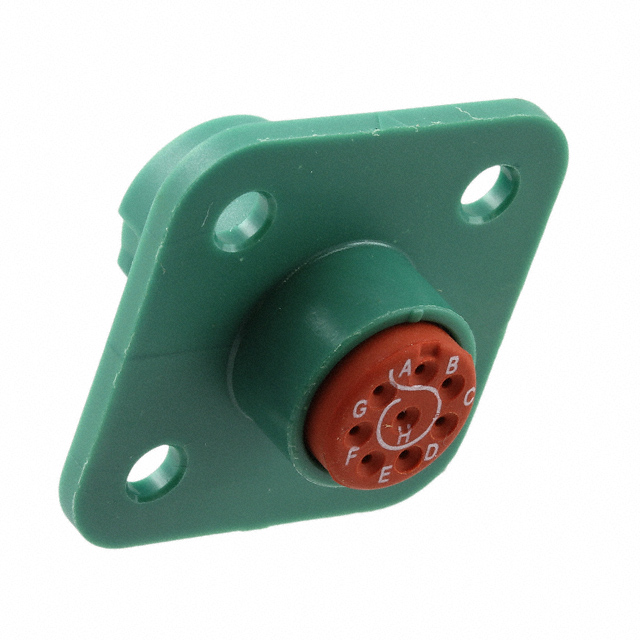

McGill Microwave Systems SJS830221	B	8	Green	Dust Tight Waterproof	IP67	For Male Pins	Bayonet Lock	UL94 V-0	7	7	Receptacle Housing	Unshielded		Panel Mount	22D	Nylon 6/6 Polyamide (PA66)	Crimp	Circular	Contacts Not Included	125 °C	-65 °C					Flange

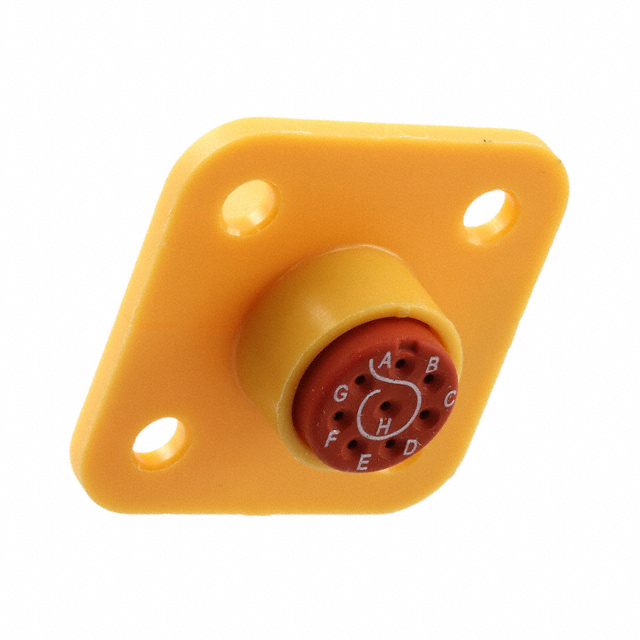

McGill Microwave Systems SJS830222	C	8	Yellow	Dust Tight Waterproof	IP67	For Male Pins	Bayonet Lock	UL94 V-0	7	7	Receptacle Housing	Unshielded		Panel Mount	22D	Nylon 6/6 Polyamide (PA66)	Crimp	Circular	Contacts Not Included	125 °C	-65 °C					Flange
