MP20 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

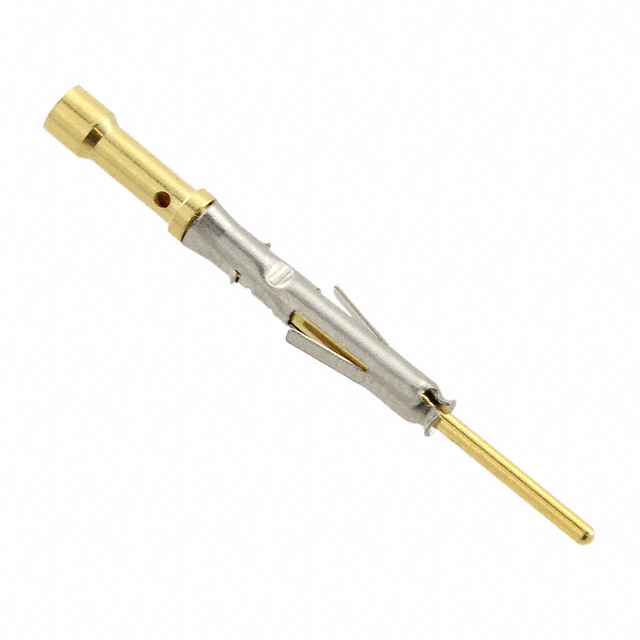

PCB CONTACT - LONG VERSION, GOLD
| Part | Contact Finish | Type | Contact Type | Contact Size | Contact Finish Thickness | Contact Finish Thickness (string set options) | Contact Finish Thickness | Termination Finish | Contact Material | Contact Termination | Wire Gauge or Range - mm² (Maximum) | Wire Gauge or Range - mm² (Minimum) | Wire Gauge or Range - AWG (Min) | Wire Gauge or Range - AWG (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Gold | Machined | Pin | 20 | 0 | Flash | Flash | Nickel | Copper Alloy | Solder | ||||
 McGill Microwave Systems | Gold | Machined Signal | Pin | 20 | 0 | Flash | Flash | Copper Alloy | Copper Alloy | Crimp | 0.5 mm² | 0.34 mm² | 20 AWG | 22 AWG |
 McGill Microwave Systems | Gold | Machined Signal | Pin | 16 S | 5 µin | Nickel | Copper Alloy | Crimp | 0.5 mm² | 0.34 mm² | 20 AWG | 22 AWG | ||
 McGill Microwave Systems | Gold | Machined Signal | Pin | 20 | 0 | Flash | Flash | Copper Alloy | Copper Alloy | Crimp | 0.5 mm² | 0.34 mm² | 20 AWG | 22 AWG |
