031-10 Series

Catalog

CONN BNC 0HZ TO 1GHZ 75OHM SOLDER CUP ST PANEL MOUNT F GOLD

Part	Housing Color	Contact Termination	Connector Type	Features	Mounting Type	Shield Termination	Mounting Feature	Fastening Type	Center Contact Material	Frequency - Max	Number of Ports	Impedance	Connector Style	Voltage Rating	Body Finish	Dielectric Material	Body Material	Includes Total Count	Includes	Mating Cycles	Center Contact Plating	Insertion Loss	Width	Thickness	Plating	Material	Thread Size (Nominal)	Thread Pitch (TPI)	Type	Operating Temperature (Min)	Operating Temperature (Max)
McGill Microwave Systems 031-10-75RFXG2	Silver White	Solder Cup	Female Socket Jack	Isolated	Panel Mount	Solder	Bulkhead Rear Side Nut	Bayonet Lock	Phosphor Bronze	4 GHz	1	75 Ohm	BNC	500 V	Nickel	Nylon Polyamide (PA)	Brass	3 pcs	Connector Lockwasher Nut	500 cycles	Gold	0.2 dB

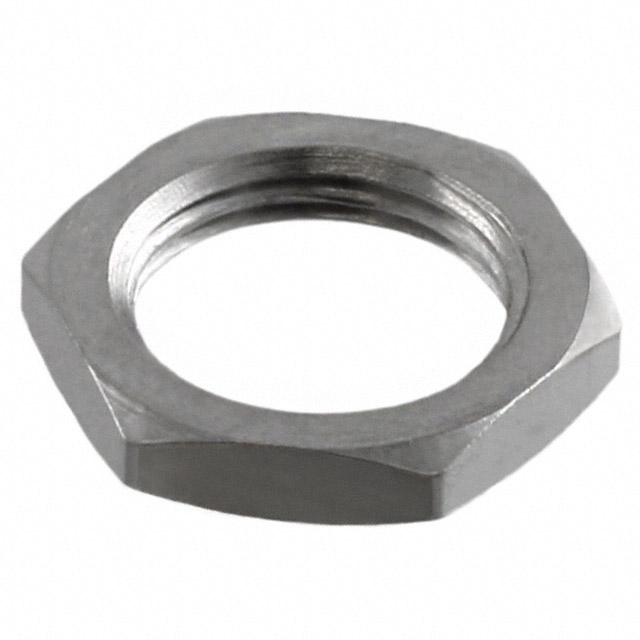

McGill Microwave Systems 031-10495-NA																							0.495 in	0.093 in	Nickel over Copper	Brass	0.375 in	32 TPI	Hex
McGill Microwave Systems 031-105	Silver	Solder Cup	Female Socket Jack		Panel Mount	Solder	Flange	Bayonet Lock		4 GHz	1	50 Ohm	BNC	500 V	Nickel	Copolymer	Brass			500 cycles	Silver	0.2 dB								-65 °C	165 °C
McGill Microwave Systems 031-10-RFXG1	Silver White	Solder Cup	Female Socket Jack	Isolated	Panel Mount	Solder	Bulkhead Rear Side Nut	Bayonet Lock	Phosphor Bronze	4 GHz	1	50 Ohm	BNC	500 V	Nickel	Nylon Polyamide (PA)	Brass	3 pcs	Connector Lockwasher Nut	500 cycles	Gold	0.2 dB

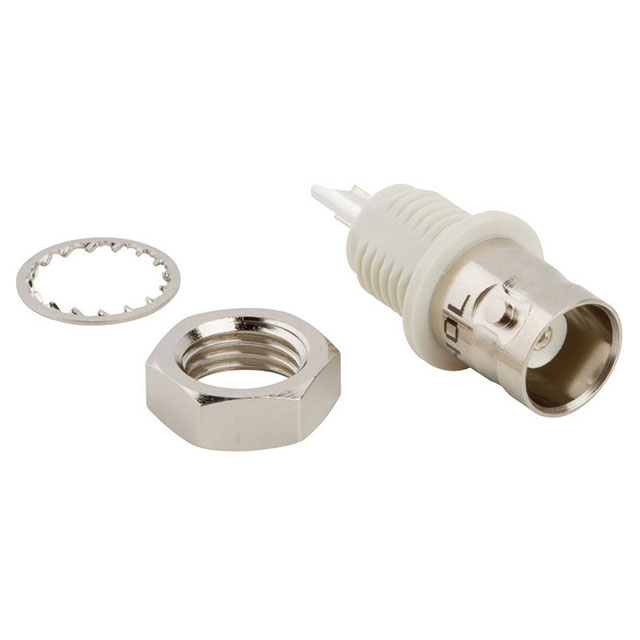

McGill Microwave Systems 031-10-1002	Silver White	Solder Cup	Female Socket Jack		Panel Mount	Solder	Bulkhead Rear Side Nut	Bayonet Lock	Phosphor Bronze		1	50 Ohm	BNC		Nickel	Polyphenylene Oxide (PPO)	Brass	3 pcs	Connector Lockwasher Nut	500 cycles	Gold	0.2 dB
