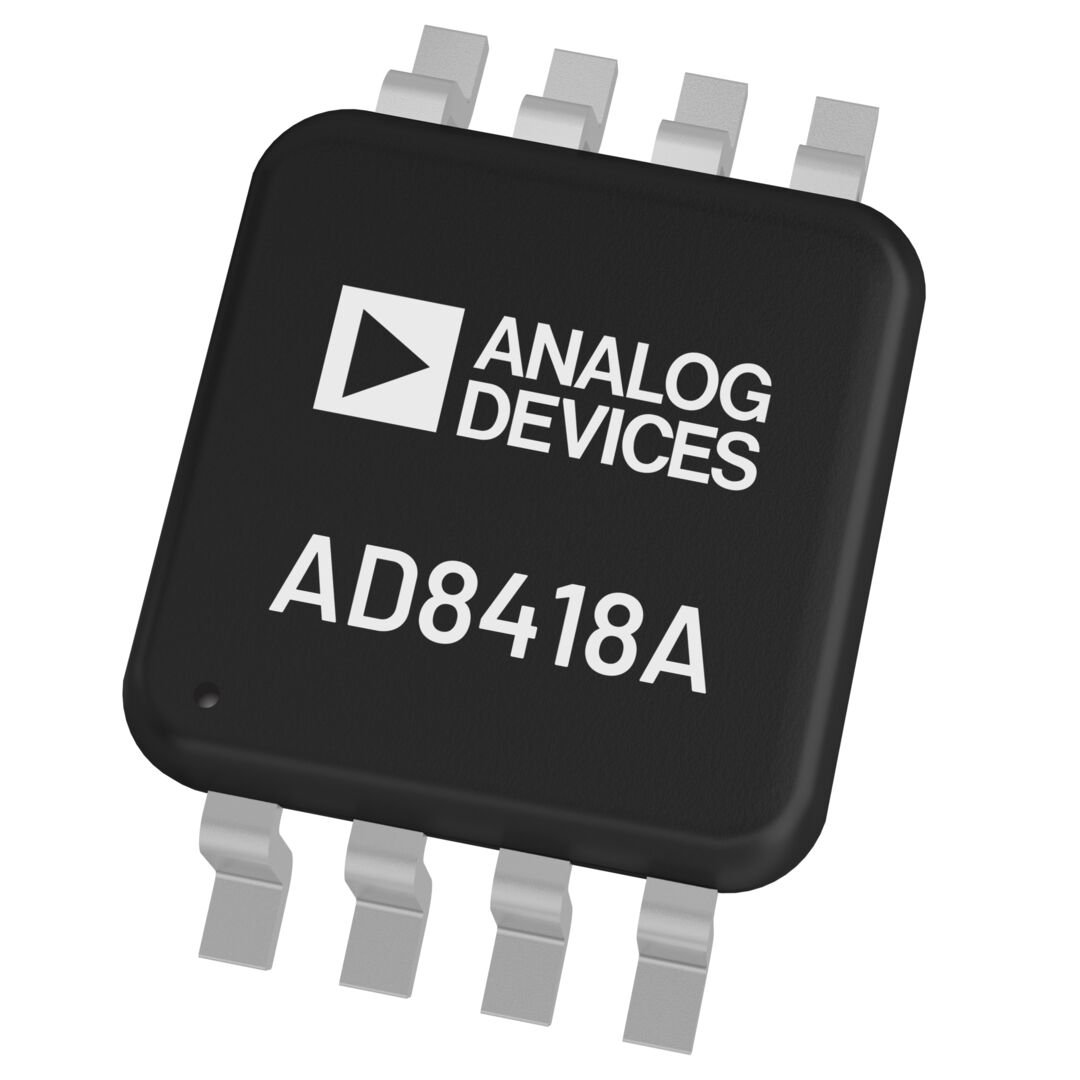

AD8418A Series

Catalog

BIDIRECTIONAL, ZERO-DRIFT, CURRENT SENSE AMPLIFIER

Part	Operating Temperature (Min)	Operating Temperature (Max)	Slew Rate	Current - Supply	Amplifier Type	Voltage - Supply Span (Max)	Current - Input Bias	-3db Bandwidth	Package Width	Package Name	Package Length	Voltage - Supply Span (Min)	Number of Circuits	Mounting Type	Grade	Channels per IC (Single)	Channels per IC (Type)	Channels per IC (Count)	Output Type	Utilized IC / Part	Voltage - Supply (Single) Minimum	Supply Configuration	Voltage - Supply (Single) Maximum	Contents	Current - Supply (Main IC)
Analog Devices Inc./Maxim Integrated AD8418AWHRMZ-RL	-40 °C	150 °C	1 V/µs	4.1 mA	Current Sense	5.5 V	130 µA	250 kHz	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	2.7 V	1	Surface Mount	Automotive
Analog Devices Inc./Maxim Integrated AD8418AWBRZ-RL	-40 °C	125 °C	1 V/µs	4.1 mA	Current Sense	5.5 V	130 µA	250 kHz	3.9 mm	8-SOIC	0.154 in	2.7 V	1	Surface Mount	Automotive
Analog Devices Inc./Maxim Integrated AD8418ARM-EVALZ			1 V/µs		Current Sense			250 kHz								1	Single	1	Single-Ended	AD8418A	2.7 V	Dual Single	5.5 V	Board	0.0041 mA
Analog Devices Inc./Maxim Integrated AD8418AWBRMZ	-40 °C	125 °C	1 V/µs	4.1 mA	Current Sense	5.5 V	130 µA	250 kHz	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	2.7 V	1	Surface Mount	Automotive
Analog Devices Inc./Maxim Integrated AD8418AWBRZ	-40 °C	125 °C	1 V/µs	4.1 mA	Current Sense	5.5 V	130 µA	250 kHz	3.9 mm	8-SOIC	0.154 in	2.7 V	1	Surface Mount	Automotive
