750131 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

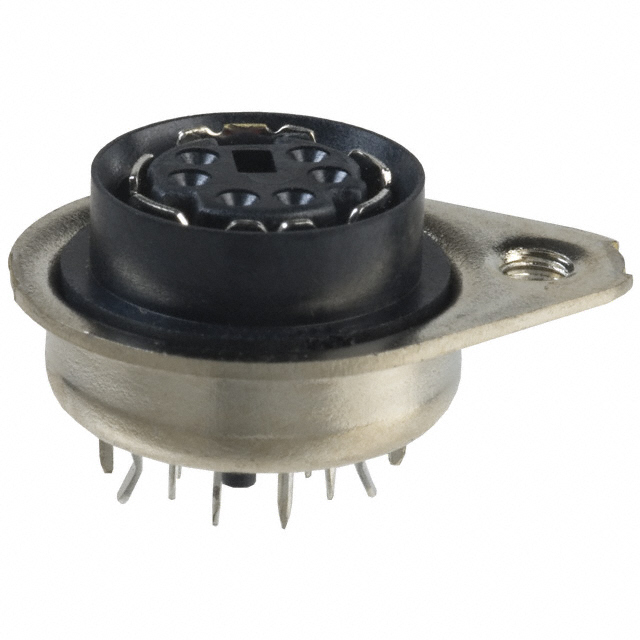

CONN RCPT FMALE MINI DIN 6P SLDR
| Part | Contact Finish - Mating | Contact Material | Termination | Material Flammability Rating | Fastening Type | Shell Material | Mounting Feature | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Size - Insert | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Orientation | Shielding | Primary Material | Connector Type | Voltage Rating | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Gold | Copper Alloy | Solder | UL94 V-0 | Push-Pull | Brass | Flange | 30 Áin | 0.76 Ám | Mini DIN | 6 | 105 ░C | -55 °C | Panel Mount Through Hole | Keyed | Shielded | Metal | Receptacle Female Sockets | 30 VDC | Audio Video |
