MAX20078 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
SYNCHRONOUS BUCK, HIGH-BRIGHTNESS LED CONTROLLER
| Part | Mounting Type | Topology | Internal Switch(s) | Applications | Number of Outputs | Voltage - Supply (Min) | Grade | Type | Package Width | Package Name | Package Length | Operating Temperature (Max) | Operating Temperature (Min) | Voltage - Supply (Max) | Current - Output / Channel | Package / Case | Dimming | Frequency | Qualification | Supplied Contents | Utilized IC / Part | Total Output Count | Output Type | Non-Isolated Output Count | Voltage - Input (Maximum) | Voltage - Input (Minimum) | Contents | Features | Voltage - Output (Min) | Voltage - Output (Max) | Package Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | Surface Mount | Step-Down (Buck) | No | Lighting | 1 | 4.5 V | Automotive | DC DC Controller | 3 mm | 16-TQFN | 3 mm | 125 °C | -40 °C | 65 V | 10 mA | 16-WFQFN Exposed Pad | Analog PWM | 1 MHz | AEC-Q100 | ||||||||||||

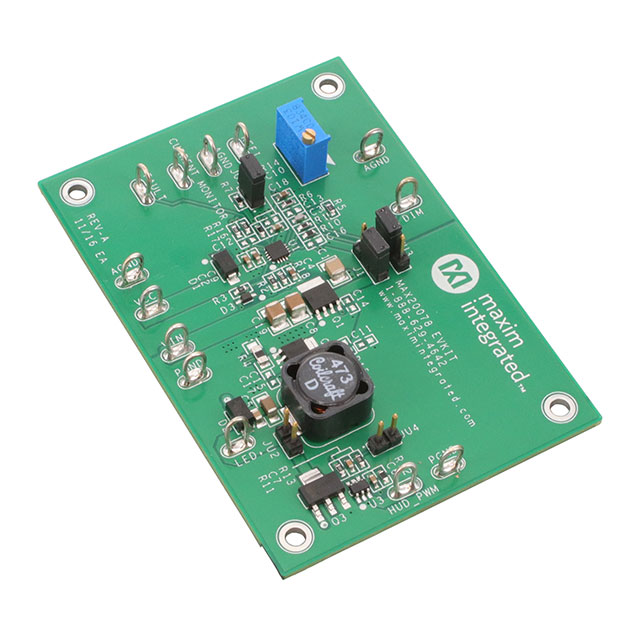

 Analog Devices Inc./Maxim Integrated | 2 A | Board(s) | MAX20078 | 1 | Non-Isolated | 1 count | 65 V | 4.5 V | Board | Dimmable | 3 V | 55 V | |||||||||||||||||||
 Analog Devices Inc./Maxim Integrated | Surface Mount | Step-Down (Buck) | No | Lighting | 1 | 4.5 V | Automotive | DC DC Controller | 3 mm | 16-TQFN | 3 mm | 125 °C | -40 °C | 65 V | 10 mA | 16-WFQFN Exposed Pad | Analog PWM | 1 MHz | AEC-Q100 | ||||||||||||
Analog Devices Inc./Maxim Integrated | Surface Mount | Step-Down (Buck) | No | 1 | 4.5 V | Automotive | DC DC Controller | 3 mm | 16-TQFN | 3 mm | 125 °C | -40 °C | 65 V | 10 mA | 16-WFQFN Exposed Pad | Analog PWM | 1 MHz | AEC-Q100 | |||||||||||||
Analog Devices Inc./Maxim Integrated | Surface Mount | Step-Down (Buck) | No | 1 | 4.5 V | Automotive | DC DC Controller | 3 mm | 16-TQFN | 3 mm | 125 °C | -40 °C | 65 V | 10 mA | 16-WFQFN Exposed Pad | Analog PWM | 1 MHz | AEC-Q100 | |||||||||||||
Analog Devices Inc./Maxim Integrated | Surface Mount | Step-Down (Buck) | No | Lighting | 1 | 4.5 V | Automotive | DC DC Controller | 3 mm | 16-TQFN | 3 mm | 125 °C | -40 °C | 65 V | 10 mA | 16-WFQFN Exposed Pad | Analog PWM | 1 MHz | AEC-Q100 | ||||||||||||
 Analog Devices Inc./Maxim Integrated | Surface Mount | Step-Down (Buck) | No | Lighting | 1 | 4.5 V | Automotive | DC DC Controller | 4.4 mm | 16-TSSOP 16-TSSOP-EP | 0.173 in | 125 °C | -40 °C | 65 V | 10 mA | Analog PWM | 1 MHz | AEC-Q100 | Exposed Pad | ||||||||||||
Analog Devices Inc./Maxim Integrated | Surface Mount | Step-Down (Buck) | No | Lighting | 1 | 4.5 V | Automotive | DC DC Controller | 3 mm | 16-TQFN | 3 mm | 125 °C | -40 °C | 65 V | 10 mA | 16-WFQFN Exposed Pad | Analog PWM | 1 MHz | AEC-Q100 | ||||||||||||
Analog Devices Inc./Maxim Integrated | Surface Mount | Step-Down (Buck) | No | Lighting | 1 | 4.5 V | Automotive | DC DC Controller | 3 mm | 16-TQFN | 3 mm | 125 °C | -40 °C | 65 V | 10 mA | 16-WFQFN Exposed Pad | Analog PWM | 1 MHz | AEC-Q100 | ||||||||||||
 Analog Devices Inc./Maxim Integrated | Surface Mount | Step-Down (Buck) | No | 1 | 4.5 V | Automotive | DC DC Controller | 4.4 mm | 16-TSSOP 16-TSSOP-EP | 0.173 in | 125 °C | -40 °C | 65 V | 10 mA | Analog PWM | 1 MHz | AEC-Q100 | Exposed Pad |
