XC4VSX35 Series

Catalog

IC FPGA 448 I/O 668FCBGA

Part	Operating Temperature (Max)	Operating Temperature (Min)	Total RAM Bits	Number of I/O	Number of Logic Elements/Cells	Mounting Type	Number of LABs/CLBs	Package Length	Package Name	Package Width	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Package / Case	P/N Breakdown	For Use With/Related Products	Type	Contents	Utilized IC / Part	Platform
AMD / Xilinx XC4VSX35-11FF668C	85 °C	0 °C	3538944 bits	448	34560	Surface Mount	3840	27 mm	668-FCBGA	27 mm	1.14 V	1.26 V	668-BBGA FCBGA
AMD / Xilinx HW-V4-ML402-UNI-G-J														J = Japan version does not ship with a power supply	XC4VSX35	FPGA	Board Board(s) Power Supply Not Included	XC4VSX35	Virtex-4 FPGA ML402 UNI Japan
AMD / Xilinx XC4VSX35-10FF668I	100 °C	-40 °C	3538944 bits	448	34560	Surface Mount	3840	27 mm	668-FCBGA	27 mm	1.14 V	1.26 V	668-BBGA FCBGA

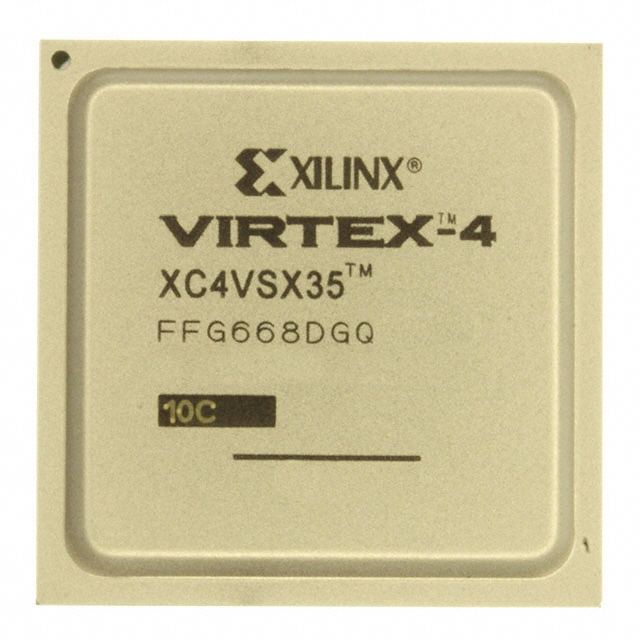

AMD / Xilinx XC4VSX35-10FFG668C	85 °C	0 °C	3538944 bits	448	34560	Surface Mount	3840	27 mm	668-FCBGA	27 mm	1.14 V	1.26 V	668-BBGA FCBGA
AMD / Xilinx HW-V4-ML402-UNI-G																FPGA	Board Power Supply	XC4VSX35	Virtex-4 FPGA ML402 UNI
AMD / Xilinx XC4VSX35-10FFG668I	100 °C	-40 °C	3538944 bits	448	34560	Surface Mount	3840	27 mm	668-FCBGA	27 mm	1.14 V	1.26 V	668-BBGA FCBGA
