54771 Series

Catalog

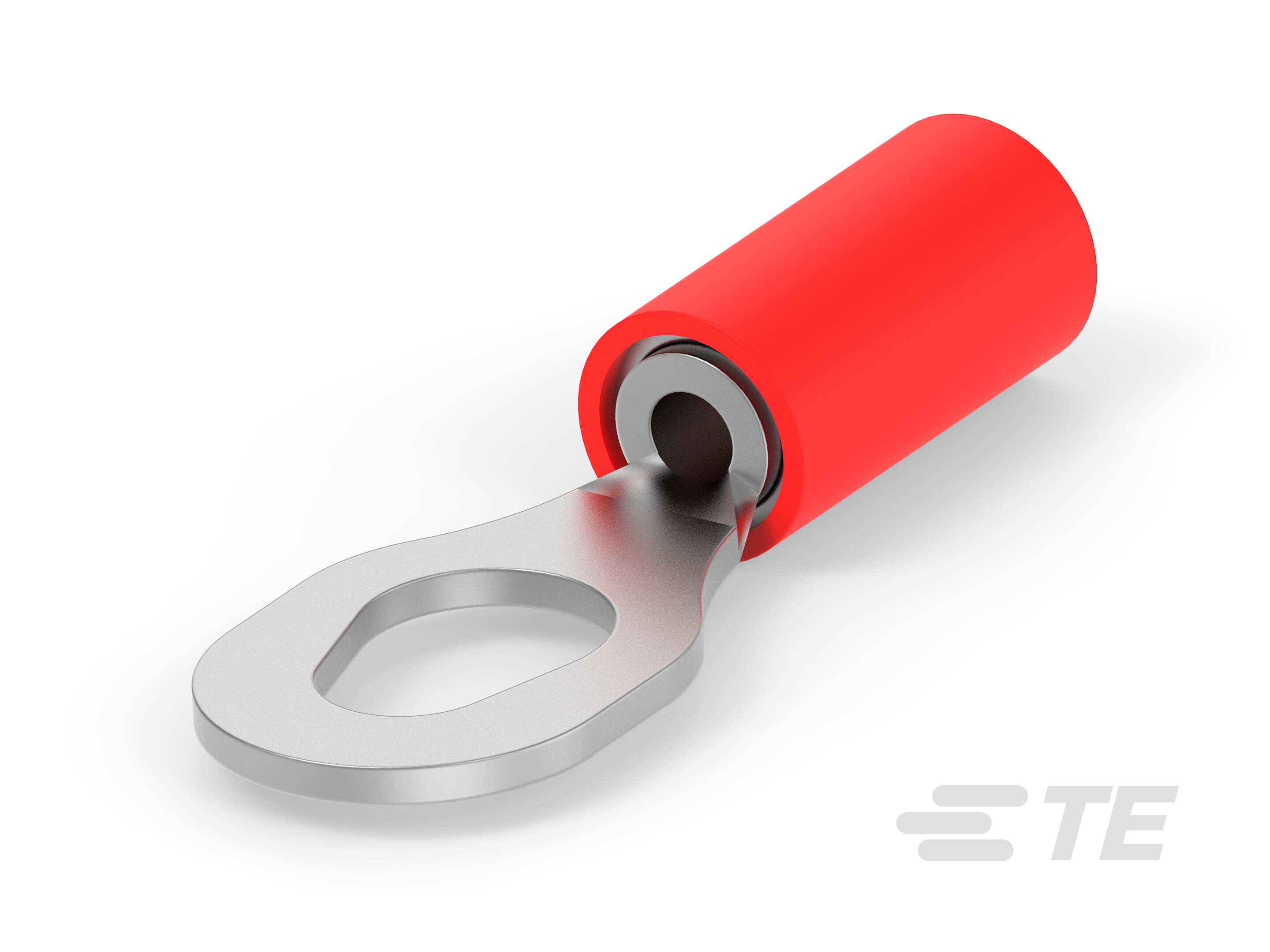

CONN RING MULT STUD 16-22AWG

Part	Material - Insulation	Insulation Diameter (Min)	Insulation Diameter (Max)	Length - Overall	Width - Outer Edges	Termination	Contact Material	Mounting Type	Color	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Stud/Tab Size	Terminal Type	Thickness	Insulation	Contact Finish	Features
TE Connectivity AMP Connectors 54771-2	Nylon PA Polyamide	0.08 in	0.125 in	0.957 in	0.325 in	Crimp	Copper	Free Hanging (In-Line)	Red	16 AWG	22 AWG	10 Stud 6 Stud 8 Stud	Multi-Stud	0.031 in	Insulated	Tin	Serrated Termination
TE Connectivity AMP Connectors 54771-1	Nylon PA Polyamide	0.08 in	0.125 in	0.957 in	0.325 in	Crimp	Copper	Free Hanging (In-Line)	Red	16 AWG	22 AWG	10 Stud 6 Stud 8 Stud	Multi-Stud	0.031 in	Insulated	Tin	Serrated Termination
TE Connectivity AMP Connectors 8-54771-1	Nylon PA Polyamide	0.08 in	0.125 in	0.957 in	0.325 in	Crimp	Copper	Free Hanging (In-Line)	Red	16 AWG	22 AWG	10 Stud 6 Stud 8 Stud	Multi-Stud	0.031 in	Insulated	Tin	Serrated Termination
