CLQ6A Series

Catalog

R: ANY 1 IV BIN FROM 1L TO 1N,HUE:RB

Part	Lens Style	Configuration	Wavelength - Dominant (Blue)	Wavelength - Dominant Color	Wavelength - Dominant (Green)	Wavelength - Dominant (Red)	Voltage - Forward (Vf) (Typ) Color	Voltage - Forward (Vf) (Typ) (Blue)	Voltage - Forward (Vf) (Typ) (Red)	Voltage - Forward (Vf) (Typ) (Green)	Current - Test Colors	Current - Test (Blue)	Current - Test (Red)	Current - Test (Green)	Current - Test (White)	Package Name	Package / Case	Millicandela Rating Colors	Millicandela Rating (Red)	Millicandela Rating (Blue)	Millicandela Rating (Green)	Mounting Type	Size / Dimension Length	Size / Dimension Width	Height (Max)	Color	Millicandela Rating (Amber)	Current - Test (Amber)	Current - Test

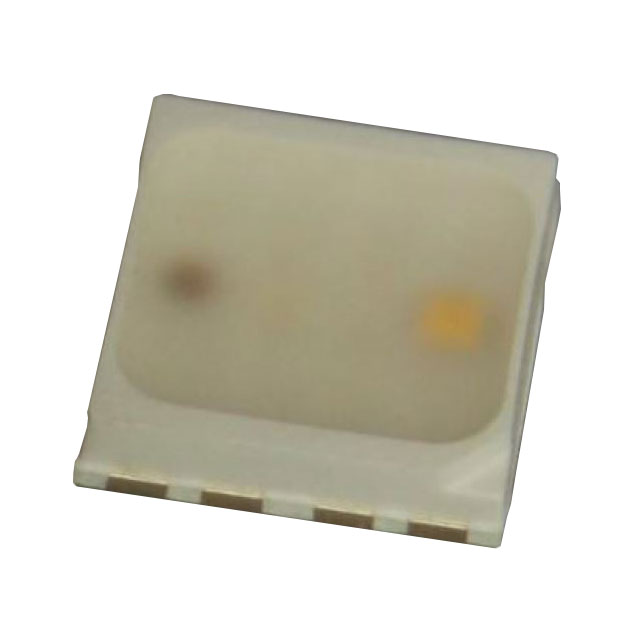

CreeLED, Inc. CLQ6A-TKW-S1L1R1H1QBB7935BB3	Flat Top Oval Rectangle	Independent	468 nm	Blue Green Red	528 nm	622 nm	Blue Green Red White	3.1 V	2.1 V	3 V	Blue Green Red White	100 mA	100 mA	100 mA	100 mA	8-PLCC	8-SMD No Lead	Blue Green Red White	4500 mcd	3000 mcd	10400 mcd	Surface Mount	5 mm	5.2 mm	1.2 mm	Blue Green Red White (RGBW)
CreeLED, Inc. CLQ6A-TKW-S1L1R1H1QBB7935AA3	Flat Top Oval Rectangle	Independent	468 nm	Blue Green Red	528 nm	622 nm	Blue Green Red White	3.1 V	2.1 V	3 V	Blue Green Red White	100 mA	100 mA	100 mA	100 mA	8-PLCC	8-SMD No Lead	Blue Green Red White	4500 mcd	3000 mcd	10400 mcd	Surface Mount	5 mm	5.2 mm	1.2 mm	Blue Green Red White (RGBW)
CreeLED, Inc. CLQ6A-FKW-C1L1P1R1U1H1LBB79453	Flat Top Rectangle	Independent	470 nm	Blue Green Red	528 nm	622 nm	Blue Green Red	3.1 V	2.1 V	3 V	Blue Green Red	100 mA	100 mA	100 mA			8-SMD No Lead	Blue Green Red	5015 mcd	3002 mcd	11915 mcd	Surface Mount	5 mm	4.2 mm	1.2 mm	Blue (RGB) Green Red
CreeLED, Inc. CLQ6A-FKW-C1L11R11H1BB7C4S3	Flat Top Rectangle	Independent	470 nm	Blue Green Red	528 nm	622 nm	Blue Green Red	3.1 V	2.1 V	3 V	Blue Green Red	100 mA	100 mA	100 mA			8-SMD No Lead	Blue Green Red	5015 mcd	3002 mcd	11915 mcd	Surface Mount	5 mm	4.2 mm	1.2 mm	Blue (RGB) Green Red
CreeLED, Inc. CLQ6A-FKW-C1L11R11H1BB7C4S3	Flat Top Rectangle	Independent	470 nm	Blue Green Red	528 nm	622 nm	Blue Green Red	3.1 V	2.1 V	3 V	Blue Green Red	100 mA	100 mA	100 mA			8-SMD No Lead	Blue Green Red	5015 mcd	3002 mcd	11915 mcd	Surface Mount	5 mm	4.2 mm	1.2 mm	Blue (RGB) Green Red
CreeLED, Inc. CLQ6A-TKW-S1L1R1H1QBB7935DD3	Flat Top Oval Rectangle	Independent	468 nm	Blue Green Red	528 nm	622 nm	Blue Green Red White	3.1 V	2.1 V	3 V	Blue Green Red White	100 mA	100 mA	100 mA	100 mA	8-PLCC	8-SMD No Lead	Blue Green Red White	4500 mcd	3000 mcd	10400 mcd	Surface Mount	5 mm	5.2 mm	1.2 mm	Blue Green Red White (RGBW)
CreeLED, Inc. CLQ6A-TKW-C1L1R1H1QBB7935AA3	Flat Top Oval Rectangle	Independent	468 nm	Blue Green Red	528 nm	622 nm	Blue Green Red White	3.1 V	2.1 V	3 V	Blue Green Red White	100 mA	100 mA	100 mA	100 mA	8-PLCC	8-SMD No Lead	Blue Green Red White	4500 mcd	3000 mcd	10400 mcd	Surface Mount	5 mm	5.2 mm	1.2 mm	Blue Green Red White (RGBW)
CreeLED, Inc. CLQ6A-YKW-C1L1R1H1MBB7C3CJT3	Flat Top Rectangle	Independent	468 nm	Amber Blue Green Red	528 nm	622 nm	Amber Blue Green Red	3.1 V	2.1 V	3 V	Amber Blue Green Red	100 mA	100 mA	100 mA			8-SMD No Lead	Amber Blue Green Red	4430 mcd	3002 mcd	10715 mcd	Surface Mount	5.2 mm	5 mm	1.2 mm	Amber Blue Green Red	6190 mcd	100 mA
CreeLED, Inc. CLQ6A-YKW-C1L1R1H1MBB7C3CJT3	Flat Top Rectangle	Independent	468 nm	Amber Blue Green Red	528 nm	622 nm	Amber Blue Green Red	3.1 V	2.1 V	3 V	Amber Blue Green Red	100 mA	100 mA	100 mA			8-SMD No Lead	Amber Blue Green Red	4430 mcd	3002 mcd	10715 mcd	Surface Mount	5.2 mm	5 mm	1.2 mm	Amber Blue Green Red	6190 mcd	100 mA
CreeLED, Inc. CLQ6A-TKW-C1L1R1H1QBB7935CC3	Flat Top Oval Rectangle	Independent					Blue Green Red White	3.1 V	2.1 V	3 V						8-PLCC	8-SMD No Lead	Blue Green Red White	4500 mcd	3000 mcd	10400 mcd	Surface Mount	5 mm	5.2 mm	1.2 mm	Blue Green Red White (RGBW)			100 mA
