647615 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

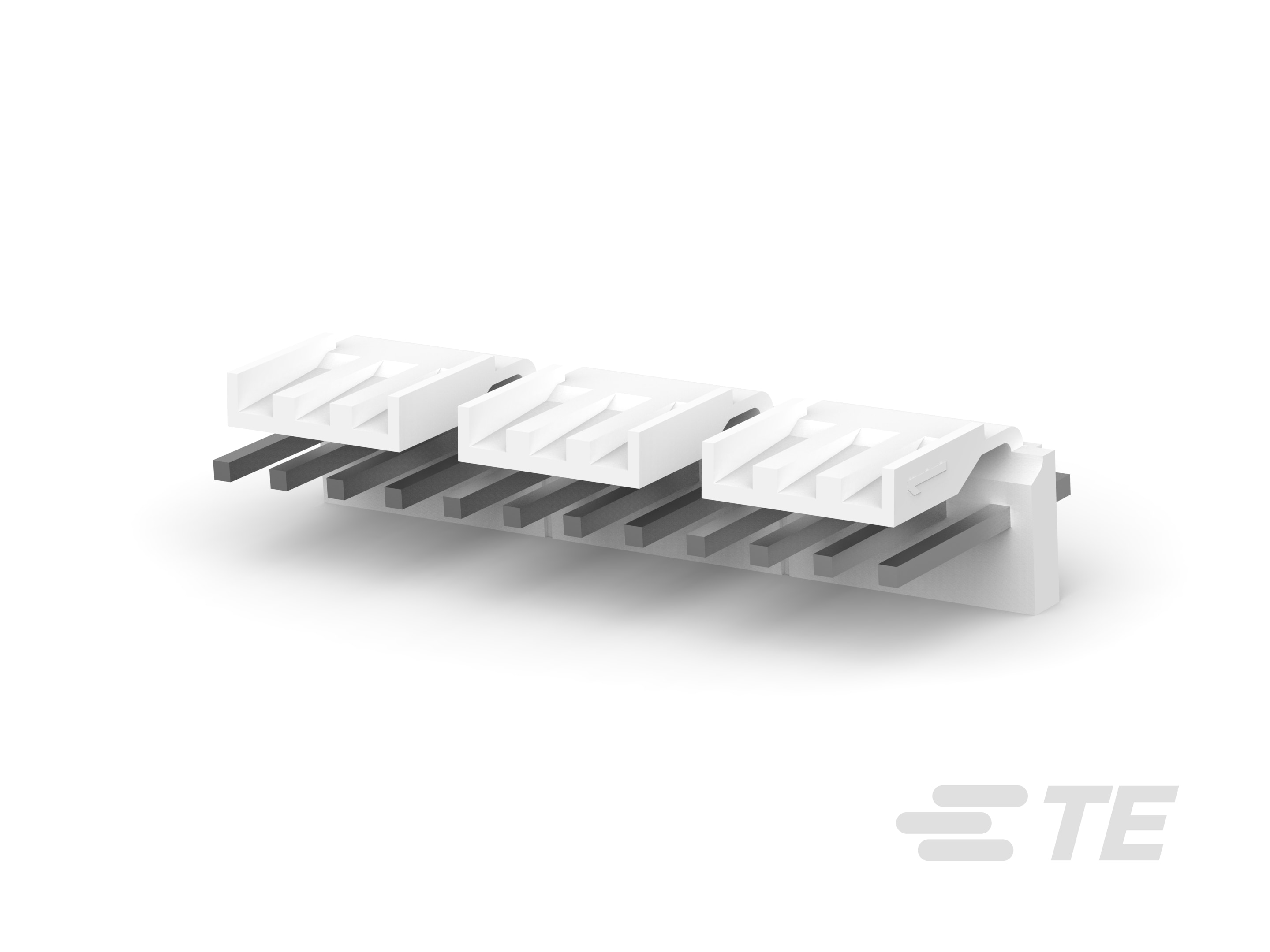

12P MTA156 POL LOCK HDR ASSY LF
| Part | Operating Temperature (Min) | Operating Temperature (Max) | Contact Length - Mating | Number of Positions | Contact Finish Thickness - Mating | Connector Type | Shrouding | Insulation Material | Mounting Type | Contact Material | Number of Positions Loaded | Contact Finish - Post | Fastening Type | Insulation Height | Voltage Rating | Insulation Color | Number of Rows | Contact Type | Style | Features | Material Flammability Rating | Contact Length - Post | Contact Shape | Current Rating | Current Rating | Contact Finish - Mating | Overall Contact Length | Pitch - Mating | Termination | Contact Finish Thickness - Post | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -55 °C | 105 °C | 0.45 in | 12 | 150 µin | Header | Shrouded - 1 Wall | Glass Filled Thermoplastic | Through Hole | Copper Alloy | All | Tin | Friction Lock | 0.545 in | 600 V | Natural | 1 | Male Pin | Board Cable/Wire | Board Guide | UL94 V-0 | 0.125 in | Square | 0 A | Varies by Wire Gauge | Tin | 0.7 in | 0.156 in | Solder | 150 µin | General Purpose Industrial |
