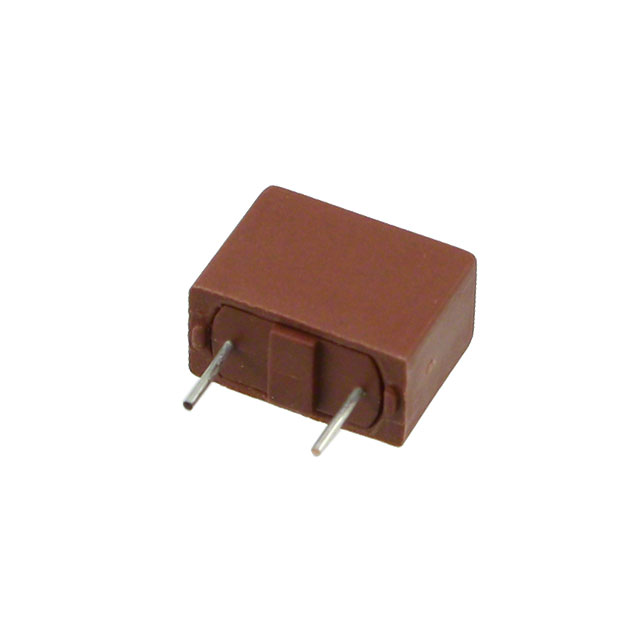

FUSE 250V TT L TE7 UMF SL SPECIAL 1A
Description
AI
The 804 Series is a TE UMF, TT time lag type subminiature fuse designed for overcurrent protection. It is 250V rated and designed in accordance to IEC 60127-4.
Beta
⌘K
FUSE 250V TT L TE7 UMF SL SPECIAL 1A
FUSE 250V TT L TE7 UMF SL SPECIAL 1A
| Part | DC Cold Resistance | Melting I²t | Operating Temperature (Max) | Operating Temperature (Min) | Mounting Type | Response Time | Current Rating | Package / Case | Approval Agency | Fuse Type | Voltage Rating - AC | Size / Dimension Length | Size / Dimension Width | Size / Dimension Height | Breaking Capacity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 0.1166 Ohms | 20 | 125 °C | -40 °C | Through Hole | Slow Blow | 1 A | Box Radial | CQC KC PSE UL | Board Mount (Cartridge Style Excluded) | 250 V | 0.488 in | 0.252 in | 0.362 in | 150 A |
