SF1129 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

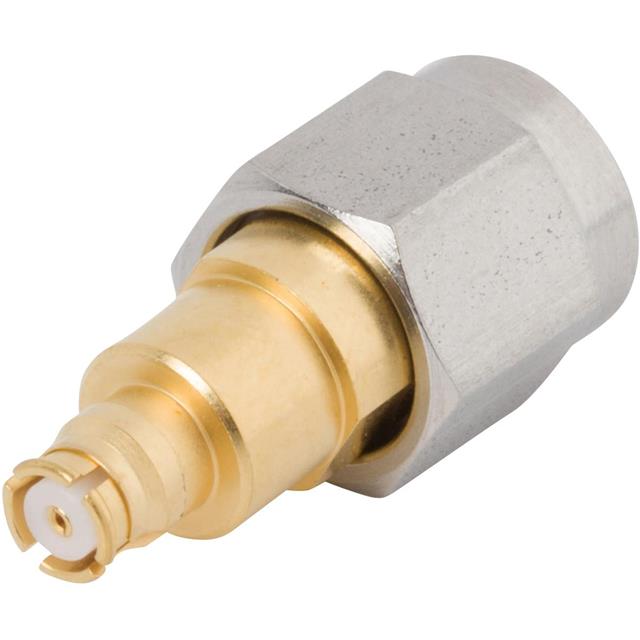

SMA MALE TO SMP FEMALE ADAPTER
| Part | Center Contact Material | Operating Temperature (Min) | Operating Temperature (Max) | Dielectric Material | Body Material | Body Finish | Mating Cycles | Frequency - Max | Center Contact Plating | Mounting Type | Convert To (Adapter End) | Convert From (Adapter End) | Style | Conversion Type | Fastening Type | Impedance | Center Gender | Adapter Type | Adapter Series | Convert To (Adapter End) Type | Convert To (Adapter End) Gender | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Beryllium Copper | -65 °C | 165 °C | Polytetrafluoroethylene (PTFE) | Beryllium Copper Stainless Steel | Gold Passivated | 500 cycles | 18 GHz | Gold | Free Hanging (In-Line) | Female Socket SMP Jack | Male Pin SMA Plug | Straight | Between Series | Snap-On Threaded | 50 Ohm | Female Male | Plug to Jack | SMA to SMP | |||
 McGill Microwave Systems | Beryllium Copper | -65 °C | 165 °C | Polytetrafluoroethylene (PTFE) | Stainless Steel | 500 cycles | 18 GHz | Gold | Free Hanging (In-Line) | Male Pin SMA Plug | Straight | Between Series | Snap-On Threaded | 50 Ohm | Male | Plug to Plug | SMA to SMP | SMP Plug | Male Pin | Full Detent |
