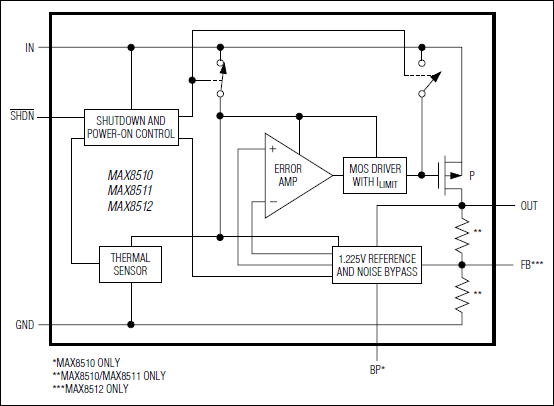

MAX8510 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
MAX8510EXK45+G65
| Part | Current - Output | Output Type | Output Configuration | Protection Features | Mounting Type | Package Name | Voltage - Output (Min/Fixed) | Package / Case | Current - Quiescent (Iq) | Control Features | PSRR (Maximum) | PSRR (Minimum) | Voltage Dropout (Typical) | Voltage - Input (Max) | Operating Temperature (Max) | Operating Temperature (Min) | Number of Regulators | Package Length | Package Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | |||||||||||||||||||
Analog Devices Inc./Maxim Integrated | |||||||||||||||||||
 Analog Devices Inc./Maxim Integrated | 120 mA | Fixed | Positive | Over Current Over Temperature | Surface Mount | SC-70-5 | 2.8 V | 5-TSSOP SC-70-5 SOT-353 | 90 µA | Shutdown | 78 dB | 54 dB | 0.135 V | 6 V | 85 °C | -40 °C | 1 | ||
 Analog Devices Inc./Maxim Integrated | 120 mA | Fixed | Positive | Over Current Over Temperature | Surface Mount | SC-70-5 | 3.3 V | 5-TSSOP SC-70-5 SOT-353 | 90 µA | Shutdown | 78 dB | 54 dB | 0.12 V | 6 V | 85 °C | -40 °C | 1 | ||
Analog Devices Inc./Maxim Integrated | 120 mA | Fixed | Positive | Over Current Over Temperature | Surface Mount | SC-70-5 | 3.3 V | 5-TSSOP SC-70-5 SOT-353 | 90 µA | Shutdown | 78 dB | 54 dB | 0.12 V | 6 V | 85 °C | -40 °C | 1 | ||
Analog Devices Inc./Maxim Integrated | 120 mA | Fixed | Positive | Over Current Over Temperature | Surface Mount | SC-70-5 | 1.8 V | 5-TSSOP SC-70-5 SOT-353 | 90 µA | Enable | 78 dB | 54 dB | 6 V | 85 °C | -40 °C | 1 | |||
Analog Devices Inc./Maxim Integrated | 120 mA | Fixed | Positive | Over Current Over Temperature | Surface Mount | SC-70-5 | 4.5 V | 5-TSSOP SC-70-5 SOT-353 | 90 µA | Shutdown | 78 dB | 54 dB | 0.12 V | 6 V | 85 °C | -40 °C | 1 | ||
Analog Devices Inc./Maxim Integrated | 120 mA | Fixed | Positive | Over Current Over Temperature | Surface Mount | SC-70-5 | 2.85 V | 5-TSSOP SC-70-5 SOT-353 | 90 µA | Shutdown | 78 dB | 54 dB | 0.135 V | 6 V | 85 °C | -40 °C | 1 | ||
 Analog Devices Inc./Maxim Integrated | 120 mA | Fixed | Positive | Over Current Over Temperature | Surface Mount | SC-70-5 | 3 V | 5-TSSOP SC-70-5 SOT-353 | 90 µA | Shutdown | 78 dB | 54 dB | 0.12 V | 6 V | 85 °C | -40 °C | 1 | ||
 Analog Devices Inc./Maxim Integrated | 120 mA | Fixed | Positive | Over Current Over Temperature | Surface Mount | 8-TDFN-EP | 2.5 V | 8-WFDFN Exposed Pad | 90 µA | Shutdown | 78 dB | 54 dB | 0.135 V | 6 V | 85 °C | -40 °C | 1 | 2 mm | 2 mm |
