019038 Series

Manufacturer: Molex

Catalog

CONN TERM RCPT 18-22AWG CRIMP

Part	Terminal Type	Termination	Contact Finish	Length - Overall	Length - Barrel	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Color	Insulation	Diameter - Barrel	Contact Material	Material - Insulation	Insulation Diameter
Molex 0190380001	Female Receptacle (Socket)	Crimp	Tin	1 in	0.58 in	18 AWG	22 AWG	Red	Fully Insulated	0.156 in	Brass	Poly-Vinyl Chloride PVC	0.128 in
Molex 0190380011	Female Receptacle (Socket)	Crimp	Tin	1 in	0.58 in	14 AWG	16 AWG	Blue	Fully Insulated	0.18 in	Brass	Poly-Vinyl Chloride PVC	0.15 in
Molex 0190380006	Female Receptacle (Socket)	Crimp	Tin	1 in	0.58 in	18 AWG	22 AWG	Red	Fully Insulated	0.18 in	Brass	Nylon PA Polyamide	0.128 in
Molex 0190380049	Female Receptacle (Socket)	Crimp	Tin	1 in	0.58 in	14 AWG	16 AWG	Blue	Fully Insulated	0.18 in	Brass	Nylon PA Polyamide	0.15 in
Molex 0190380048	Female Receptacle (Socket)	Crimp	Tin	1 in	0.58 in	14 AWG	16 AWG	Blue	Fully Insulated	0.156 in	Brass	Nylon PA Polyamide	0.156 in
Molex 0190380013	Female Male Pin (Plug) Receptacle (Socket)	Crimp	Tin	0.984 in 1 in	0.413 in 0.58 in	14 AWG	16 AWG	Blue	Fully Insulated	0.18 in 0.295 in	Brass	Nylon PA Polyamide	0.148 in
Molex 0190380007	Female Receptacle (Socket)	Crimp	Tin	1 in	0.58 in	14 AWG	16 AWG	Blue	Fully Insulated	0.156 in	Brass	Poly-Vinyl Chloride PVC	0.15 in
Molex 0190380009	Female Receptacle (Socket)	Crimp	Tin	1 in	0.58 in	14 AWG	16 AWG	Blue	Fully Insulated	0.156 in	Brass	Nylon PA Polyamide	0.156 in

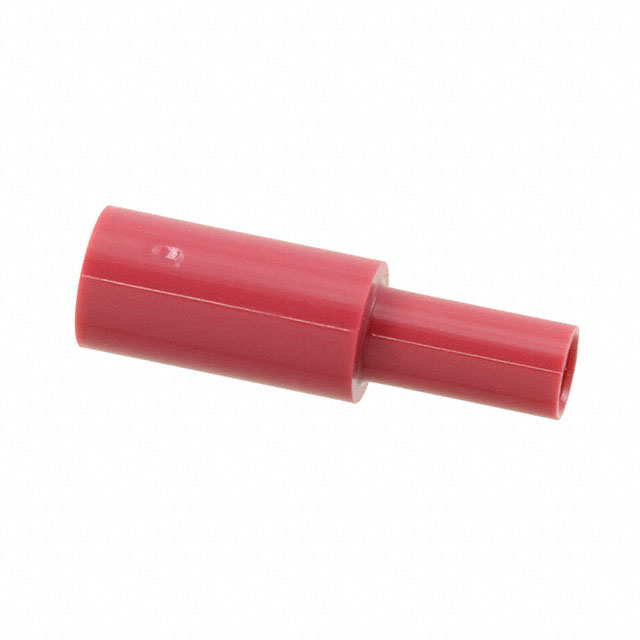

Molex 0190380004	Female Receptacle (Socket)	Crimp	Tin	1 in	0.58 in	18 AWG	22 AWG	Red	Fully Insulated	0.18 in	Brass	Poly-Vinyl Chloride PVC	0.128 in
Molex 0190380053	Female Receptacle (Socket)	Crimp	Tin	1 in	0.58 in	14 AWG	16 AWG	Blue	Fully Insulated	0.18 in	Brass	Poly-Vinyl Chloride PVC	0.15 in
